libmatt.com NOR and NAND gates are fundamental logic gates used in digital circuits, with NOR producing a true output only when all inputs are false, while NAND outputs true in all cases except when all inputs are true. Your choice between NOR and NAND depends on the specific logic function and design requirements, as NAND gates are often preferred for their versatility and ease of implementation in complex circuits.
Table of Comparison
| Feature | NOR Gate | NAND Gate |
|---|---|---|
| Logic Function | Output is true only if all inputs are false (NOT OR) | Output is false only if all inputs are true (NOT AND) |
| Boolean Expression | Y = (A + B)' | Y = (A * B)' |
| Symbol | OR gate with negation bubble | AND gate with negation bubble |
| Applications | Used in logic circuits, memory cells (SR Latch) | Widely used in digital circuits, memory, and universal gates |
| Universality | Universal gate (can implement any logic function) | Universal gate (can implement any logic function) |
| Speed | Generally slower than NAND due to transistor count | Faster switching, preferred in CMOS design |
| Transistor Count (2-input gate) | 4 to 6 transistors | 4 transistors |
| Power Consumption | Generally higher than NAND | Lower power consumption, more efficient |
Introduction to NOR and NAND Gates
NOR and NAND gates are fundamental digital logic gates used in electronics and computing for decision-making processes. A NOR gate outputs true only when all inputs are false, while a NAND gate outputs true unless all inputs are true. Understanding these gates enhances your ability to design and analyze complex digital circuits efficiently.
Fundamentals of Digital Logic Gates
NOR and NAND gates are fundamental building blocks in digital logic, with NOR producing a true output only when all inputs are false, while NAND outputs true except when all inputs are true. These gates form the basis for constructing more complex circuits like flip-flops, multiplexers, and arithmetic logic units in digital systems. Understanding your use of NOR and NAND gates can optimize logic design for efficiency and speed in computing hardware.
Structure and Working Principle of NOR Gates
NOR gates consist of multiple transistors connected in parallel in the pull-down network and series in the pull-up network, enabling them to perform the NOR logic function effectively. When all inputs to a NOR gate are low, the output is high; if any input is high, the output switches to low, reflecting its fundamental working principle. Understanding the transistor arrangement in NOR gates helps you design digital circuits with precise logic behavior for applications like decision-making and signal processing.
Structure and Working Principle of NAND Gates
NAND gates consist of multiple transistors connected in series and parallel to perform a universal logic function, producing a low output only when all inputs are high. The working principle relies on the behavior of MOSFETs, where the series connection of transistors allows current to flow only when all inputs are active, resulting in an inverted AND operation. Your digital circuits benefit from NAND gates due to their simplicity and versatility in implementing complex logic functions efficiently.
Truth Tables: NOR vs NAND
The NOR gate outputs true only when all inputs are false, as shown in its truth table where all zeros result in one, while any one or more inputs being one produce zero. The NAND gate, conversely, outputs false only when all inputs are true, with its truth table reflecting one for all input combinations except when all are one. These distinct truth tables illustrate NOR as a universal gate for NOR logic, and NAND as a fundamental building block in digital circuits due to its versatility in implementing any Boolean function.
Key Differences Between NOR and NAND
NOR and NAND gates differ primarily in their logical operations: a NOR gate outputs true only when all inputs are false, while a NAND gate outputs false only when all inputs are true. NOR gates perform the OR function followed by negation, whereas NAND gates perform the AND function followed by negation, making NAND gates more versatile in digital circuits. Your choice depends on the design requirements, as NAND gates are commonly preferred for their speed and ease of fabrication in complex logic circuits.
Applications of NOR and NAND Gates
NOR gates are extensively used in digital circuits for implementing simple logic functions, creating flip-flops, and forming basic memory storage elements due to their universal gate property. NAND gates dominate applications in programmable logic devices, microprocessors, and memory arrays because they offer efficient and cost-effective circuit implementations. Both gates are fundamental in designing combinational and sequential logic circuits, with NAND gates preferred for higher integration and NOR gates favored in speed-critical applications.
Advantages and Disadvantages: NOR vs NAND
NOR gates offer simpler wiring and faster performance in low-complexity circuits due to their single transistor pull-up network, but they consume more power and have slower switching speeds in large-scale integration compared to NAND gates. NAND gates provide higher speed and lower power consumption in complex digital circuits because of their efficient transistor configuration and reduced gate delay, making them preferred in modern CMOS technologies. However, NAND circuits can be more complex to design for specific logic functions, potentially increasing design time and area compared to NOR-based implementations.
NOR and NAND in Memory Technology
NOR and NAND flash memory are essential for data storage, with NOR providing fast read speeds and random access for executable code storage, while NAND offers higher density and lower cost for large-volume data storage. NOR memory is commonly used in embedded systems and firmware applications due to its direct byte-level access, whereas NAND flash is preferred in USB drives, SSDs, and smartphones because of its efficient block-level access and superior write/erase cycles. The technological differences in cell structure and error correction impact endurance, speed, and application suitability between NOR and NAND memory.
Future Trends and Innovations in Logic Gates
Emerging trends in logic gates emphasize the increasing use of NOR and NAND gates due to their fundamental roles in digital circuits and ease of implementation in CMOS technology. Innovations in low-power, high-speed designs are driving advancements in these gates to support next-generation applications like quantum computing, neuromorphic systems, and AI accelerators. Your design choices may benefit from exploring hybrid logic gate architectures that optimize performance, scalability, and energy efficiency.

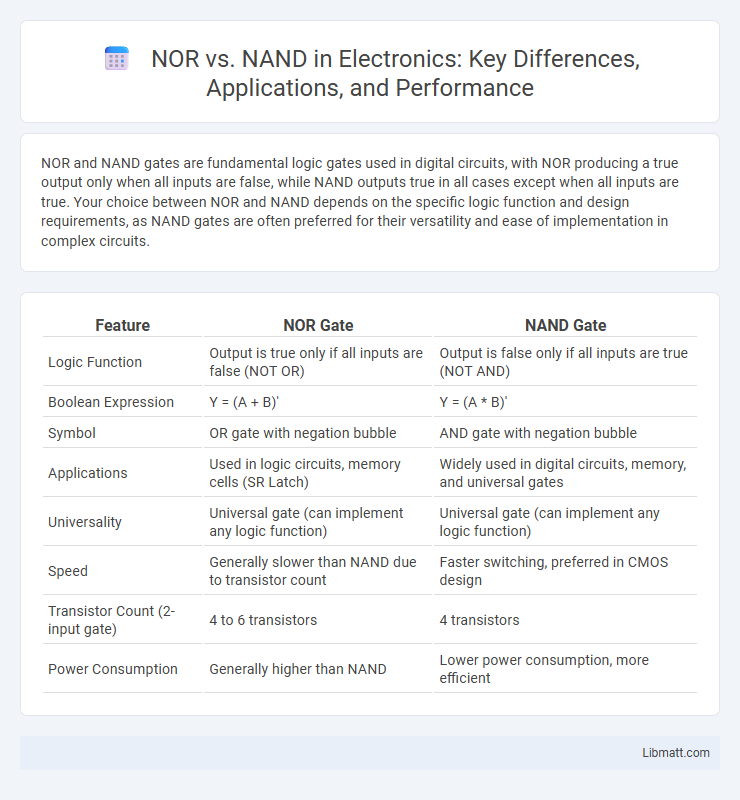

NOR vs NAND Infographic
