libmatt.com Synchronous rectifiers offer higher efficiency than Schottky diodes by using MOSFETs to reduce conduction losses, especially in low-voltage, high-current applications. Your power supply design benefits from lower heat generation and improved energy savings with synchronous rectification compared to the simpler, but less efficient, Schottky diode approach.
Table of Comparison
| Feature | Synchronous Rectifier | Schottky Diode |
|---|---|---|
| Technology | Uses controlled MOSFET switches | Uses metal-semiconductor junction |
| Forward Voltage Drop | Very low (typically 0.03-0.1V) | Low (typically 0.15-0.45V) |
| Efficiency | Higher efficiency in low voltage, high current circuits | Moderate efficiency |
| Switching Speed | High speed with synchronized control | Fast, but limited by diode recovery time |
| Complexity | Requires control circuitry | Simple, passive component |
| Cost | Higher cost due to control ICs and MOSFETs | Lower cost |
| Thermal Performance | Better due to lower conduction losses | Higher heat dissipation |
| Applications | DC-DC converters, power supplies, battery chargers | Low voltage rectification, power supplies |
Introduction to Synchronous Rectifiers and Schottky Diodes
Synchronous rectifiers use actively controlled MOSFETs to replace traditional diodes, minimizing conduction losses and improving efficiency in power conversion systems. Schottky diodes, made from metal-semiconductor junctions, offer fast switching speeds and low forward voltage drops, making them suitable for high-frequency applications. Understanding these components helps optimize your power supply design by balancing efficiency, cost, and thermal management requirements.
Basic Working Principles
Synchronous rectifiers use MOSFETs controlled by gate signals to actively switch and conduct current with lower voltage drop, enhancing efficiency in power conversion. Schottky diodes rely on metal-semiconductor junctions to achieve fast switching and low forward voltage drop but operate passively without gate control. The active switching in synchronous rectifiers reduces conduction losses compared to the fixed-drop characteristic of Schottky diodes, making them suitable for high-efficiency applications.
Key Performance Differences
Synchronous rectifiers offer significantly lower forward voltage drop compared to Schottky diodes, resulting in improved efficiency and reduced power loss, especially in low-voltage, high-current applications. Schottky diodes, while faster in switching speed and simpler to implement, inherently have higher conduction losses due to their fixed voltage drop. Your choice depends on whether efficiency or simplicity is the priority, with synchronous rectifiers excelling in energy-sensitive designs and Schottky diodes favored for cost-effective, moderate-efficiency solutions.
Efficiency Comparison
Synchronous rectifiers achieve higher efficiency than Schottky diodes by replacing the diode with actively controlled MOSFETs, which drastically reduces conduction losses due to their lower on-resistance (R_DS(on)). Schottky diodes, despite their low forward voltage drop and fast switching speeds, still exhibit higher power dissipation during conduction compared to synchronous rectifiers, especially in low-voltage, high-current applications. The efficiency gain in synchronous rectifiers becomes particularly significant in DC-DC converters and power supply designs where minimizing energy loss is critical.
Cost and Complexity Considerations
Synchronous rectifiers generally incur higher initial costs due to the need for specialized MOSFETs and complex control circuits, whereas Schottky diodes offer a simpler, lower-cost solution with fewer components. Your choice depends on balancing efficiency gains from synchronous rectification against the budget constraints and design simplicity desired in your application. While synchronous rectifiers improve power efficiency significantly, they demand more intricate design and driver circuitry compared to the plug-and-play nature of Schottky diode implementations.
Thermal Management and Heat Dissipation
Synchronous rectifiers offer significantly improved thermal management compared to Schottky diodes due to their lower conduction losses, resulting in reduced heat generation. While Schottky diodes exhibit fast switching and low forward voltage drops, their higher heat dissipation necessitates larger heat sinks or active cooling solutions. Efficient heat transfer in synchronous rectifiers enhances reliability and allows for more compact designs in power conversion applications.
Suitability for High-Frequency Applications
Synchronous rectifiers outperform Schottky diodes in high-frequency applications due to their lower conduction losses and higher efficiency. Schottky diodes, while fast-switching and low forward voltage, suffer from higher reverse leakage currents at elevated frequencies. Your power designs benefit from synchronous rectifiers by reducing heat dissipation and improving overall energy conversion in high-speed switching environments.
Application Scenarios and Use Cases
Synchronous rectifiers are widely used in high-efficiency DC-DC converters and power supplies for applications such as servers, telecommunications, and battery-powered devices, where reducing conduction losses is critical. Schottky diodes excel in fast recovery and low forward voltage drop, making them suitable for low-voltage, high-frequency switching power supplies, solar chargers, and RF circuits. The choice depends on efficiency requirements, switching frequency, and thermal management constraints in specific applications.
Design Challenges and Solutions
Synchronous rectifiers face design challenges such as increased circuit complexity and the need for precise timing control to optimize efficiency and prevent shoot-through faults. Solutions involve integrating advanced gate drivers and employing real-time feedback mechanisms to synchronize transistor switching accurately. Your power supply design benefits from reduced conduction losses compared to Schottky diodes, which are simpler but suffer higher forward voltage drops and efficiency losses at higher currents.
Conclusion and Best Choice Recommendations
Synchronous rectifiers offer higher efficiency and lower voltage drop compared to Schottky diodes, making them ideal for applications requiring minimal power loss and better thermal management. Schottky diodes provide simplicity, lower cost, and faster switching speeds, suitable for low-power or cost-sensitive designs. For high-current, energy-efficient systems, synchronous rectifiers are the best choice, whereas Schottky diodes are preferred in budget-conscious or simpler circuits.

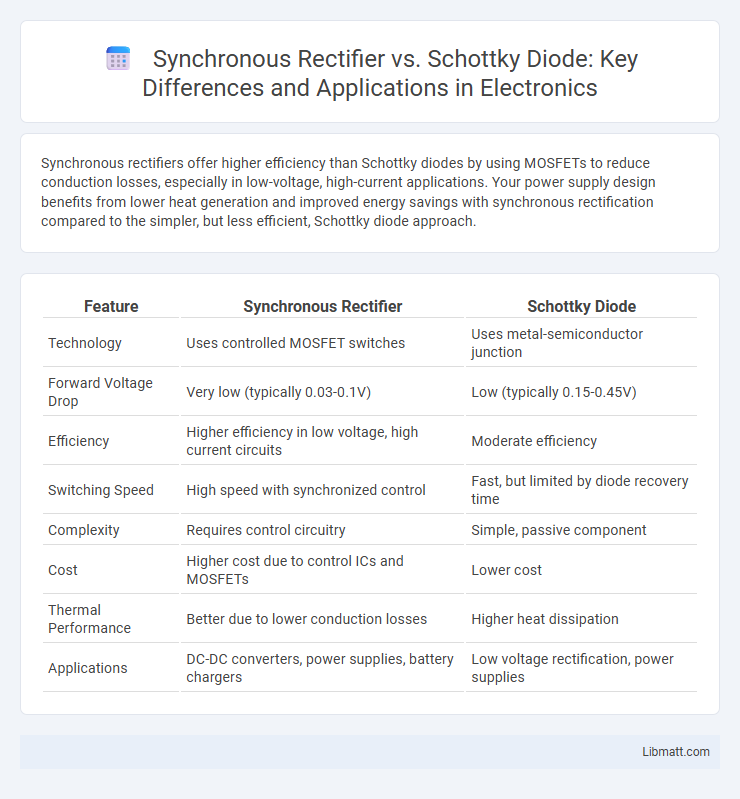

Synchronous rectifier vs Schottky diode Infographic
