libmatt.com Cryogenic propellants, stored at extremely low temperatures, offer high specific impulse and efficiency but require complex insulation and handling systems to prevent boil-off and maintain stability. Hypergolic propellants ignite spontaneously upon contact, providing reliable ignition and simpler engine design, ideal for spacecraft maneuvers where ignition certainty and restart capability are crucial.
Table of Comparison
| Aspect | Cryogenic Propellant | Hypergolic Propellant |
|---|---|---|
| Definition | Liquefied gases stored at extremely low temperatures, such as Liquid Oxygen (LOX) and Liquid Hydrogen (LH2). | Fuel and oxidizer that ignite spontaneously on contact, e.g., Hydrazine with Nitrogen Tetroxide (N2O4). |
| Storage Temperature | Requires ultra-low temperatures (-253degC for LOX, -253degC for LH2). | Stored at ambient temperature, typically room temperature. |
| Ignition | Requires external ignition system. | Self-ignites on contact; no ignition system needed. |
| Performance (Specific Impulse, Isp) | High; typically 350-450 seconds depending on propellant combination. | Moderate; generally 280-320 seconds. |
| Handling & Safety | Complex; risk of boil-off and cryogenic burns. | Highly toxic, corrosive, and hypergolic; requires specialized handling. |
| Typical Application | Launch vehicles' main stages and deep space applications. | Orbital maneuvering systems, satellites, and spacecraft thrusters. |
| Storage Duration | Limited due to boil-off losses in long-duration missions. | Long shelf-life, suitable for extended missions. |
| Cost | Generally higher due to cryogenic infrastructure. | Lower initial cost but higher handling expenses. |
Introduction to Rocket Propellants
Cryogenic propellants, typically liquid hydrogen and liquid oxygen, are favored for their high energy density and efficiency in rocket engines, enabling extended mission ranges and higher payload capacities. Hypergolic propellants ignite spontaneously upon contact, offering reliable and immediate ignition crucial for maneuvering thrusters and orbital adjustments. Your choice between cryogenic and hypergolic propellants depends on mission requirements, balancing performance, storage complexity, and handling safety.
What Are Cryogenic Propellants?
Cryogenic propellants are fuels and oxidizers stored at extremely low temperatures to remain in a liquid state, such as liquid hydrogen and liquid oxygen. These propellants offer high specific impulse, making them ideal for efficient rocket propulsion in space missions. Your choice of cryogenic propellant can significantly enhance performance but requires advanced insulation and handling to prevent boil-off.
What Are Hypergolic Propellants?
Hypergolic propellants are rocket fuels that ignite spontaneously upon contact with each other, eliminating the need for an external ignition source and enhancing reliability during engine starts. These propellants typically consist of a fuel like hydrazine and an oxidizer such as nitrogen tetroxide, widely used in spacecraft maneuvering and orbital insertion due to their storability and immediate ignition. Your choice of hypergolic propellants can improve mission safety and simplify engine design by ensuring consistent and rapid ignition under various conditions.
Chemical Composition and Storage
Cryogenic propellants consist primarily of liquefied gases such as liquid hydrogen and liquid oxygen, stored at extremely low temperatures to maintain their liquid state and prevent vaporization. Hypergolic propellants use a combination of fuels like hydrazine and oxidizers such as nitrogen tetroxide, which ignite spontaneously on contact and can be stored at ambient temperatures in stable, non-cryogenic conditions. Your choice between these propellants hinges on the trade-off between the complex insulation requirements of cryogenics and the high toxicity but easier storage of hypergolics.
Ignition Mechanisms: Cryogenic vs Hypergolic
Cryogenic propellants require an external ignition source, such as spark or pilot flame, because their components--typically liquid oxygen and liquid hydrogen--do not ignite upon contact. Hypergolic propellants ignite spontaneously upon contact between fuel and oxidizer, enabling reliable and instantaneous engine starts without complex ignition systems. Your choice between cryogenic and hypergolic propellants impacts ignition reliability, engine design complexity, and overall mission safety.
Performance and Efficiency Comparison
Cryogenic propellants, such as liquid hydrogen and liquid oxygen, offer higher specific impulse values, often exceeding 450 seconds, resulting in superior performance and fuel efficiency compared to hypergolic propellants like hydrazine and nitrogen tetroxide, which typically provide specific impulses around 300 seconds. The high energy density and clean combustion of cryogenic fuels enable more efficient thrust generation, enhancing payload capacity for space missions. Your choice depends on mission requirements, where cryogenic propellants excel in performance but require complex storage, while hypergolic propellants offer reliability and simplicity at the cost of slightly lower efficiency.
Safety and Handling Concerns
Cryogenic propellants require storage at extremely low temperatures, posing significant handling risks such as frostbite and material embrittlement, and necessitating specialized insulated tanks and transfer equipment. Hypergolic propellants ignite spontaneously upon contact, demanding rigorous safety protocols to prevent accidental ignition and toxic exposure, as well as the use of corrosion-resistant materials. Both types present distinct safety challenges, with cryogenics emphasizing thermal hazards and hypergolics focusing on chemical reactivity and toxicity management.
Applications in Space Missions
Cryogenic propellants, such as liquid hydrogen and liquid oxygen, are widely used in space missions requiring high specific impulse and deep space exploration, exemplified by the Space Shuttle main engines and upper stages of launch vehicles like the Delta IV. Hypergolic propellants, which ignite spontaneously on contact, are preferred for spacecraft maneuvering thrusters, orbital insertion, and docking procedures due to their reliability and storability in long-duration missions like those of the Apollo Lunar Module and various satellite reaction control systems. The selection between cryogenic and hypergolic propellants depends on mission parameters including efficiency, ignition reliability, and storage constraints in the space environment.
Environmental Impact Assessment
Cryogenic propellants, such as liquid oxygen and liquid hydrogen, produce primarily water vapor upon combustion, resulting in a cleaner environmental profile compared to hypergolic propellants, which release toxic and carcinogenic byproducts like nitrogen oxides and unburned hydrazine compounds. The handling and storage of hypergolic fuels pose significant environmental risks due to their high toxicity and potential for soil and water contamination in the event of leaks or spills. Your choice of propellant directly influences environmental safety protocols and long-term ecological impacts, with cryogenic options generally favored for reducing hazardous emissions and contamination risks.
Future Trends in Propellant Technology
Future trends in propellant technology emphasize the development of green and sustainable options, with cryogenic propellants gaining prominence due to their high specific impulse and reduced environmental impact compared to traditional hypergolic propellants. Advances in storage and handling of cryogenic fuels like liquid hydrogen and liquid oxygen aim to overcome challenges related to boil-off and insulation, enabling longer missions and improved engine performance. Research into hypergolic alternatives focuses on non-toxic ignition systems and safer propellant formulations to reduce health hazards and environmental contamination while maintaining reliable ignition characteristics.

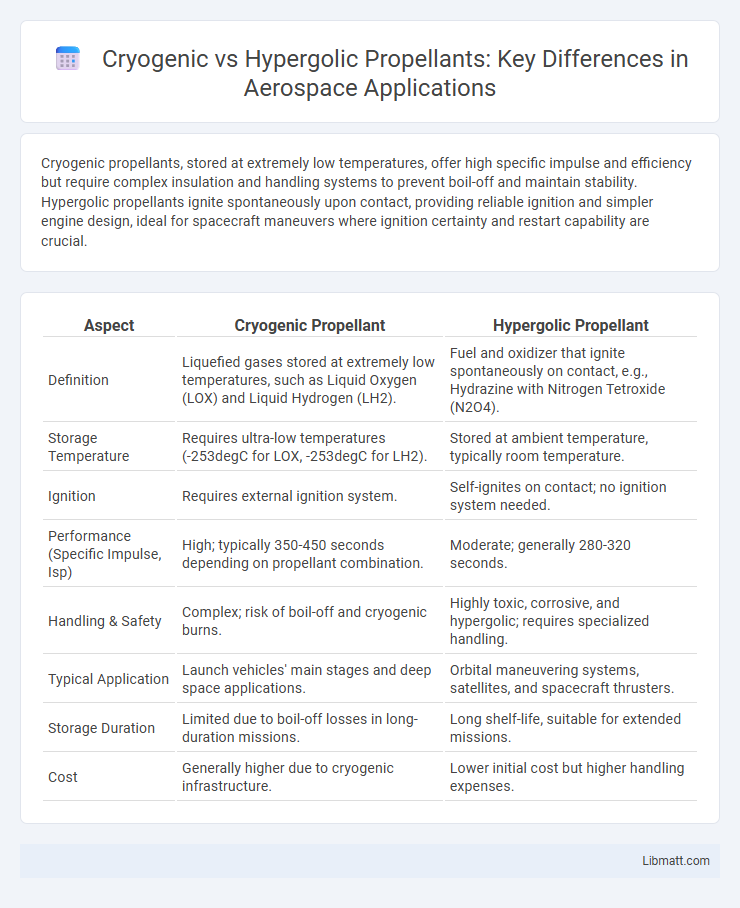

Cryogenic Propellant vs Hypergolic Propellant Infographic
