libmatt.com Token Ring networks use a token-passing protocol to manage data transmission, ensuring collision-free communication by allowing only the device with the token to send data, while Ethernet relies on a contention-based method called CSMA/CD to handle collisions and allow multiple devices to communicate over the same network. Your choice between Token Ring and Ethernet depends on factors like network size, speed requirements, and cost, with Ethernet being more widely adopted due to its simplicity and scalability.
Table of Comparison
| Feature | Token Ring | Ethernet |
|---|---|---|
| Topology | Ring | Star (modern) / Bus (traditional) |
| Access Method | Token Passing | CSMA/CD (Carrier Sense Multiple Access with Collision Detection) |
| Speed | 4 Mbps to 16 Mbps | 10 Mbps to 100 Gbps+ |
| Collision | No collisions due to token passing | Possible collisions, managed by CSMA/CD |
| Cost | Higher due to specialized hardware | Lower, widely available equipment |
| Implementation | Complex and costly | Simple and cost-effective |
| Scalability | Limited by ring size | Highly scalable with switches and routers |
| Reliability | Dependent on token integrity; single failure may impact network | Robust with fault-tolerant designs |
Introduction to Token Ring and Ethernet
Token Ring and Ethernet are two foundational network technologies that facilitate data communication within local area networks (LANs). Token Ring uses a token-passing protocol to control access, ensuring organized data transmission by circulating a token around a ring topology. Ethernet, employing collision detection (CSMA/CD) or collision avoidance methods, is widely adopted due to its simplicity, scalability, and support for star or bus topologies, making it a dominant choice for your network infrastructure.
Historical Background of Token Ring and Ethernet
Token Ring, developed by IBM in the 1980s, was designed to manage data transmission using a token-passing protocol that ensured orderly access to the network. Ethernet, conceptualized by Xerox PARC in the 1970s and later standardized by IEEE 802.3, evolved into the dominant LAN technology due to its simplicity and scalability. Both technologies shaped early computer networking, but Ethernet's flexible architecture and cost-effectiveness led to widespread adoption over Token Ring.
Core Technology and Operation
Token Ring uses a token-passing protocol where a special data packet circulates around the network nodes, granting permission to transmit, ensuring orderly and collision-free communication. Ethernet operates on a Carrier Sense Multiple Access with Collision Detection (CSMA/CD) protocol, allowing all devices to sense the network and transmit data when idle, detecting and managing collisions if they occur. Token Ring typically runs at speeds up to 16 Mbps, while Ethernet supports higher speeds, ranging from 10 Mbps to 100 Gbps and beyond, making Ethernet more scalable and widely adopted.
Network Topology Differences
Token Ring networks employ a ring topology where each device connects to exactly two other devices, forming a circular data path for token passing to control access. Ethernet primarily uses a star topology, connecting all devices to a central switch or hub, enabling simultaneous data transmissions with collision detection protocols like CSMA/CD. The Token Ring's deterministic token passing contrasts with Ethernet's contention-based access, influencing network performance and scalability.
Speed and Performance Comparison
Ethernet typically offers higher speeds with common standards like Gigabit Ethernet supporting up to 1 Gbps and faster versions reaching 10 Gbps or more, surpassing traditional Token Ring speeds of 4 Mbps or 16 Mbps. Ethernet's performance benefits from its collision detection protocol and full-duplex communication, which reduce data transmission delays compared to Token Ring's token-passing method. In modern networking environments, Ethernet provides lower latency and greater scalability, making it the preferred choice for high-speed data transfer and demanding applications.
Scalability and Network Expansion
Token Ring networks face limitations in scalability due to their fixed maximum of 256 devices and the dependency on token-passing protocol, which can cause increased latency as the network grows. Ethernet supports much larger networks with hundreds or thousands of devices using switches and hubs, enabling seamless network expansion and improved performance through full-duplex communication. Modern Ethernet standards, such as Gigabit and 10 Gigabit Ethernet, further enhance network scalability by providing higher bandwidth and more efficient handling of traffic in expanding enterprise environments.
Cost and Implementation Factors
Ethernet networks generally have lower initial setup costs and simpler implementation compared to Token Ring, making Ethernet more cost-effective for most organizations. Token Ring requires specialized hardware such as multistation access units (MAUs) and typically involves higher maintenance expenses due to its complex topology. The widespread adoption and standardization of Ethernet also contribute to more affordable equipment and easier scalability.
Reliability and Fault Tolerance
Token Ring networks offer high reliability through a token-passing protocol that prevents data collisions, making fault detection and isolation more straightforward. Ethernet, particularly with the advent of switches and full-duplex communication, enhances fault tolerance by automatically rerouting traffic and minimizing collision domains. Your choice between Token Ring and Ethernet should consider Ethernet's scalability and cost-effectiveness alongside Token Ring's deterministic reliability in fault-sensitive environments.
Use Cases and Industry Adoption
Token Ring networks are primarily utilized in legacy systems within industries requiring deterministic network performance, such as manufacturing and banking environments, due to their collision-free data transmission. Ethernet dominates modern enterprise and data center deployments because of its cost-effectiveness, scalability, and compatibility with high-speed technologies like Gigabit and 10 Gigabit Ethernet. Industry adoption heavily favors Ethernet, supported by its widespread vendor ecosystem and integration with contemporary networking standards, relegating Token Ring to niche or legacy use cases.
Future Trends and Legacy Considerations
Ethernet continues to dominate future networking trends due to its scalability, higher speeds like 400 Gbps, and widespread adoption in data centers and enterprise environments, while Token Ring, once popular for its deterministic access method, remains largely obsolete with limited legacy support in industrial systems. Emerging technologies such as Time-Sensitive Networking (TSN) build on Ethernet's standard to enhance real-time data handling, highlighting Ethernet's evolving ecosystem. Legacy Token Ring infrastructures require careful migration planning to Ethernet to ensure compatibility and performance improvements in modern network deployments.

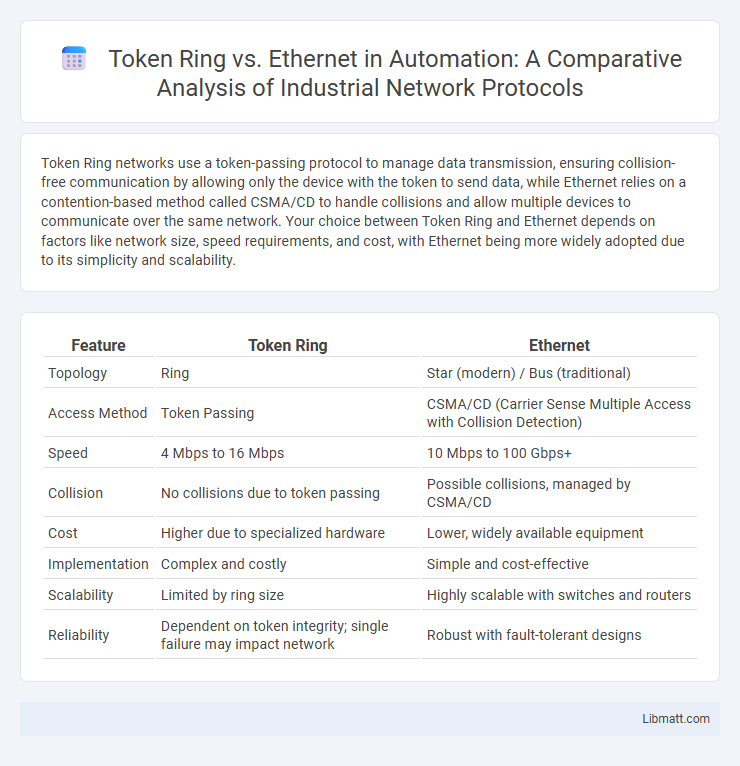

Token Ring vs Ethernet Infographic
