libmatt.com A podium slab supports an entire building section by distributing loads evenly, often serving as a base for residential or commercial floors above, while a transfer slab redirects loads from columns above to different column positions below, enabling flexible architectural layouts. Your choice depends on the structural requirements and design flexibility needed for your project.
Table of Comparison
| Feature | Podium Slab | Transfer Slab |
|---|---|---|
| Definition | A large slab supporting multi-level structures, usually at podium level in buildings. | A structural slab transferring loads from columns above to different column locations below. |
| Primary Use | Supports amenities, parking, or commercial spaces beneath residential floors. | Allows column alignment changes between floors for architectural design or space planning. |
| Load Transfer | Distributes loads evenly across a wide area. | Transfers concentrated loads from misaligned columns or walls to supporting columns. |
| Thickness | Typically thicker and reinforced to support large spans and heavy loads. | Generally thick and heavily reinforced due to complex load paths. |
| Structural Complexity | Moderate, with straightforward load distribution. | High, involves complex stress calculations and reinforcement detailing. |
| Construction Cost | Moderate, due to large area but simpler design. | Higher, due to technical complexity and reinforcement needs. |
| Common Applications | Podium buildings, mixed-use developments, parking decks. | High-rise buildings, irregular column layouts, structural adjustments. |
Introduction to Podium Slab and Transfer Slab
Podium slabs are large, horizontal structural elements typically constructed at the base of high-rise buildings, serving as a foundation for multiple floors above and often integrating parking or commercial spaces. Transfer slabs are thick, reinforced concrete slabs designed to redistribute loads from uneven column layouts above to a different column arrangement below, ensuring structural stability. Your design choice between podium slabs and transfer slabs depends on architectural requirements and load distribution needs.
Definition and Key Features
A podium slab is a horizontal structural element typically used as a platform for buildings, supporting multiple floors or serving as a parking deck, often made of reinforced concrete. A transfer slab functions to redistribute loads from columns or walls above to different column positions below, enabling varied structural layouts and design flexibility. Understanding the distinction between your podium and transfer slab is crucial for optimizing structural integrity and architectural design.
Structural Functions and Applications
Podium slabs serve as a horizontal structural element that supports multiple floors above and provides a large, continuous platform capable of bearing heavy loads from superstructures like residential or commercial towers. Transfer slabs act as load redistribution elements, transferring loads from columns and beams above to different column layouts or foundations below, often used where column alignment changes between floors. Podium slabs are typically applied in podium-tower complexes for parking or retail spaces, while transfer slabs are critical in high-rise buildings requiring structural flexibility and varied column arrangements.
Construction Methods and Techniques
Podium slab construction involves casting a large, flat reinforced concrete slab that supports multiple building floors above, typically using formwork, shoring, and repetitive concrete pours for uniform thickness and strength. Transfer slab techniques require carefully designed and positioned thick, heavily reinforced concrete slabs to redistribute loads from irregular column layouts or heavier structures above, often using staged casting and specialized shoring systems to ensure stability during construction. Both methods demand precise engineering coordination, with podium slabs emphasizing large-area formwork system efficiency, while transfer slabs focus on structural load transfer and support during the curing process.
Material Requirements and Specifications
Podium slabs typically require reinforced concrete with higher compressive strength, often ranging between 30 to 40 MPa, to support heavy loads and multiple stories, while transfer slabs demand even higher strength concrete, sometimes up to 50 MPa, due to the concentrated load transfer from columns above. Steel reinforcement in podium slabs follows standard layout designs, whereas transfer slabs incorporate denser and more complex rebar arrangements to handle shear forces and torsion efficiently. Understanding these material requirements and specifications ensures your structure's stability and code compliance during the design and construction phases.
Load Distribution Mechanisms
Podium slabs distribute loads directly to the columns beneath, providing a stable platform for upper floors by evenly spreading vertical loads and minimizing bending moments. Transfer slabs function by transferring heavy or irregular loads from columns above to different column locations below, often accommodating architectural or structural constraints. Your choice between podium and transfer slabs impacts how load distribution is managed based on the building's design requirements and load paths.
Cost Implications and Budget Considerations
Podium slabs generally incur lower construction costs compared to transfer slabs due to their simpler structural design and reduced reinforcement requirements. Transfer slabs demand higher expenditure because they must support significant loads from upper floors, necessitating thicker sections and enhanced engineering, impacting overall budget allocation. Careful cost-benefit analysis of load distribution, material usage, and project scale is essential for optimizing budget considerations in choosing between podium and transfer slabs.
Advantages and Limitations
Podium slabs offer the advantage of creating large, uninterrupted spaces ideal for parking or commercial use while supporting multiple floors above, enhancing structural efficiency in mixed-use buildings. Transfer slabs, designed to redistribute loads from irregular column layouts or heavy structural elements, provide flexibility in architectural design but often require increased thickness and reinforcement, leading to higher construction costs. Your project's specific structural and spatial requirements will determine whether a podium slab's open plan benefits or a transfer slab's load distribution capabilities are more suitable.
Typical Use Cases in Building Design
Podium slabs are typically used in mixed-use buildings to support commercial spaces or parking areas beneath residential floors, offering large open floor plans with fewer columns. Transfer slabs are employed where structural loads from columns above need redistribution to columns below, commonly found in buildings with irregular column layouts or when integrating heavy mechanical equipment floors. Both slabs enable efficient load transfer but serve distinct functions based on building design requirements and spatial organization.
Decision Factors: Choosing Between Podium and Transfer Slabs
Decision factors in choosing between podium slabs and transfer slabs revolve around structural requirements, architectural design, and project budget. Podium slabs are ideal for multi-use developments, providing a sturdy base for podium levels that support amenities or parking, while transfer slabs are essential when aligning columns between different building modules or when load paths need redirection. Your choice depends on spatial flexibility, load distribution, and construction complexity to ensure optimal structural integrity and cost-effectiveness.

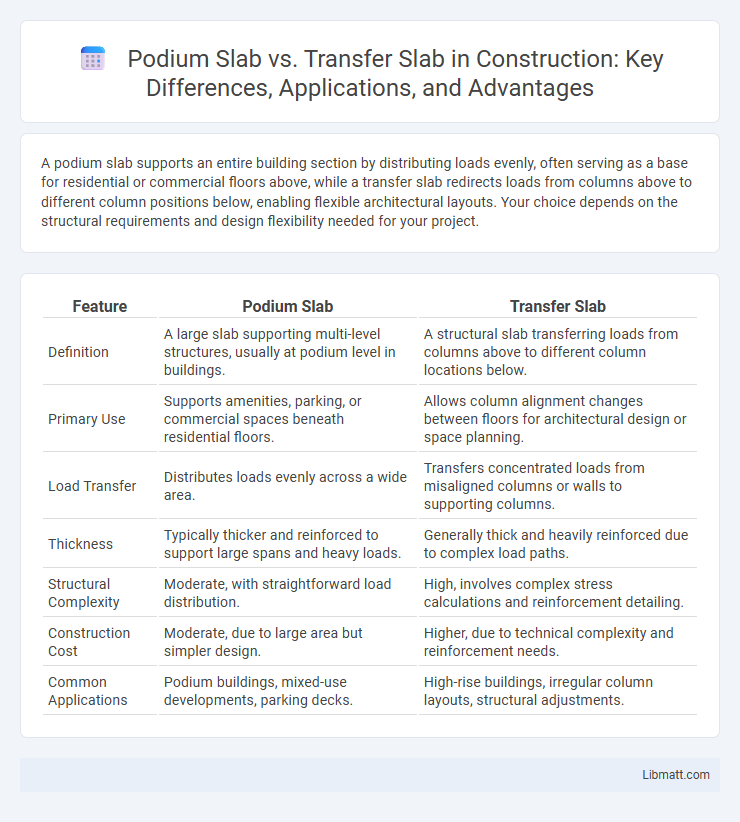

Podium slab vs transfer slab Infographic
