libmatt.com IGBTs offer higher voltage and current handling capabilities, making them ideal for high-power applications such as motor drives and inverters. Your choice between IGBT and MOSFET depends on efficiency needs, switching speed, and thermal performance, with MOSFETs excelling in low-voltage, high-speed switching scenarios.
Table of Comparison
| Feature | IGBT | MOSFET |
|---|---|---|
| Full Name | Insulated Gate Bipolar Transistor | Metal-Oxide-Semiconductor Field-Effect Transistor |
| Technology | Bipolar Junction Transistor + MOS structure | Unipolar device |
| Voltage Range | 600V to 1200V and above | Typically up to 250V, some versions 600V+ |
| Current Handling | High current capability | Moderate to high current |
| Switching Speed | Slower switching speed | Faster switching speed |
| Conduction Loss | Lower conduction losses at high voltage | Higher conduction losses at high voltage |
| Switching Loss | Higher switching losses | Lower switching losses |
| Applications | Motor drives, inverters, high power UPS systems | Low voltage power supplies, DC-DC converters, RF applications |
| Gate Drive Voltage | Typically 15V | Typically 10-20V (logic-level MOSFETs at 5V) |
| Thermal Performance | Better for high temperature operation | Good but limited by high switching frequencies |
Introduction to Power Semiconductors
Power semiconductors such as IGBTs (Insulated Gate Bipolar Transistors) and MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) play critical roles in controlling electrical power in various applications. IGBTs offer high-voltage and current handling capabilities, making them suitable for industrial motor drives and inverters, while MOSFETs excel in high-frequency switching and energy-efficient performance ideal for low-voltage power supplies. Understanding these components' distinct characteristics helps optimize your electronics design for efficiency and reliability in power conversion systems.
What is an IGBT?
An Insulated Gate Bipolar Transistor (IGBT) is a semiconductor device that combines the high input impedance of a MOSFET with the low on-state power loss of a bipolar transistor, making it ideal for high-voltage and high-current applications. It efficiently switches electrical power in industrial equipment, electric vehicles, and renewable energy systems. Your choice between an IGBT and a MOSFET depends on operating voltage, switching speed, and power requirements.
What is a MOSFET?
A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a semiconductor device used for switching and amplifying electronic signals in power electronics and digital circuits. It offers high input impedance and fast switching speeds, making it ideal for low-voltage applications and efficient power management. Compared to IGBTs, MOSFETs excel in high-frequency operations but are generally limited by lower voltage and current handling capabilities.
Key Differences Between IGBT and MOSFET
IGBT (Insulated Gate Bipolar Transistor) combines the high input impedance of a MOSFET with the low on-state power loss of a bipolar transistor, making it ideal for high-voltage and high-current applications. MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) offer faster switching speeds and lower gate drive power, which suit low-voltage and high-frequency circuits. Understanding these key differences helps you choose the right semiconductor device for efficiency and performance in power electronics.
Performance Comparison: IGBT vs MOSFET
IGBTs deliver higher current capacity and better efficiency at high voltages, making them ideal for industrial motor drives and power inverters, while MOSFETs excel in low-voltage, high-frequency applications due to their faster switching speeds and lower gate charge. Your choice between IGBT and MOSFET depends on the specific performance requirements such as voltage rating, switching frequency, and thermal management. Performance comparison highlights MOSFETs for applications under 250V, whereas IGBTs dominate in high-power scenarios above 600V.
Efficiency and Switching Speed
IGBTs (Insulated Gate Bipolar Transistors) provide high efficiency in high-voltage applications due to their low conduction losses, making them ideal for power conversion systems above 600V. MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) offer faster switching speeds and lower gate charge, which enhances performance in low-voltage, high-frequency circuits typically below 250V. The choice between IGBT and MOSFET depends on the specific efficiency requirements and switching frequency of the application, with MOSFETs excelling in rapid switching scenarios and IGBTs in high power, lower frequency environments.
Applications: Where is Each Device Used?
IGBTs excel in high-power applications such as industrial motor drives, electric vehicles, and power inverters due to their ability to handle high voltages and currents efficiently. MOSFETs are preferred in low-voltage, high-frequency environments like computer power supplies, RF amplifiers, and switching regulators because of their fast switching speeds and low on-resistance. Your choice depends on the specific power, voltage, and frequency requirements of your electronic system.
Advantages and Disadvantages
IGBTs offer high voltage and current capabilities, making them ideal for industrial motor drives and power inverters, but they have slower switching speeds and higher conduction losses compared to MOSFETs. MOSFETs provide faster switching, lower conduction losses, and better efficiency at low voltages, which is advantageous in high-frequency applications like DC-DC converters and RF circuits. Your choice between IGBT and MOSFET depends on the specific requirements for voltage, current, switching frequency, and efficiency in your application.
Selection Criteria for IGBT vs MOSFET
Selection criteria for IGBT vs MOSFET depend on switching frequency, voltage, and current requirements. IGBTs are preferred for high voltage and high current applications due to their lower conduction losses and robustness, making them ideal for industrial motor drives and power inverters. MOSFETs excel in low to medium voltage settings with high switching speeds, suitable for switching power supplies and RF amplification where efficiency and fast response are critical.
Future Trends in Power Electronics
Future trends in power electronics indicate that silicon carbide (SiC) and gallium nitride (GaN) MOSFETs are driving higher efficiency and faster switching speeds compared to traditional IGBTs. IGBTs remain dominant in high-voltage, high-current applications but face competition as GaN devices improve thermal performance and power density. The convergence of wide-bandgap semiconductor technologies is poised to redefine power conversion systems with reduced losses and compact designs.

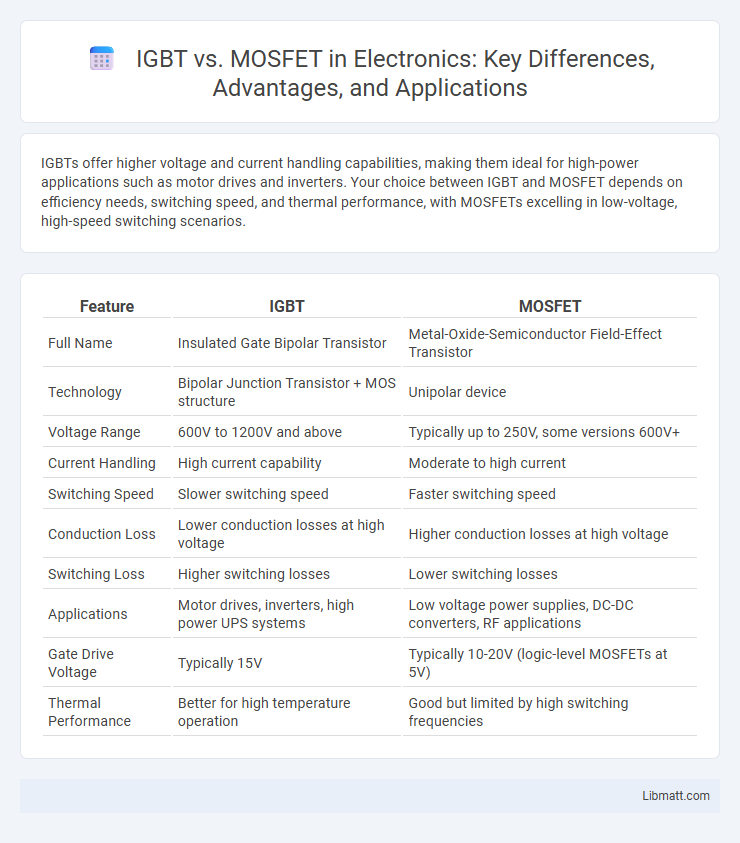

IGBT vs MOSFET Infographic
