libmatt.com Edge triggered circuits respond to changes in input signals only at specific moments, such as rising or falling edges, ensuring precise timing control in digital systems. Level triggered circuits remain sensitive to input signals as long as they are at a particular level, which can lead to prolonged responses and potential noise issues in your designs.
Table of Comparison
| Feature | Edge Triggered | Level Triggered |
|---|---|---|
| Definition | Activates on signal change (rising or falling edge). | Activates while signal remains at a specific level (high or low). |
| Response Time | Fast, reacts immediately to transitions. | Continuous activation during the level. |
| Use Case | Registers, flip-flops, event detection. | Interrupts, switches, sensors. |
| Noise Sensitivity | Less sensitive; triggers once per edge. | More sensitive; possible multiple activations. |
| Power Consumption | Lower, only triggers at edges. | Higher, active as long as level persists. |
| Complexity | Requires edge detection circuitry. | Simpler design, level detection only. |
Understanding Edge Triggered and Level Triggered Mechanisms
Edge triggered mechanisms activate circuits or processes only at the transition points of a signal, such as the rising or falling edge of a clock pulse. Level triggered mechanisms remain active or sensitive as long as the signal maintains a specific level, either high or low. Understanding these differences is crucial in designing flip-flops, interrupt systems, and other digital components to ensure accurate timing and response behaviors.
Core Differences Between Edge and Level Triggering
Edge triggered circuits respond to changes in input signals at specific moments, capturing data on rising or falling edges of a clock pulse, ensuring precise timing control in digital systems. Level triggered circuits remain sensitive as long as the input signal stays at a particular level, which can cause multiple activations during the level duration but simplifies design in certain applications. Core differences lie in timing sensitivity--edge triggering operates on signal transitions, whereas level triggering depends on signal states, impacting circuit behavior and synchronization in digital electronics.
How Edge Triggered Systems Work
Edge triggered systems detect changes by responding only to transitions in input signals, such as rising or falling edges, rather than maintaining output based on signal level. These systems use flip-flops or triggers that capture data at precise moments when the clock signal changes state, ensuring synchronization and minimizing glitches. This mechanism is essential in digital circuits like microprocessors and memory devices, where timing accuracy and signal integrity are critical.
How Level Triggered Systems Operate
Level triggered systems operate by continuously monitoring the input signal and generating an output signal as long as the input remains at a specific voltage level, either high or low. This constant evaluation ensures that the system responds immediately when the input signal level meets the defined threshold, maintaining the output state throughout the duration of the input level. Your applications benefit from level triggered systems in scenarios requiring sustained responses to steady input signals, such as in flip-flops and some interrupt handling mechanisms.
Practical Applications of Edge Triggered Techniques
Edge triggered techniques are widely utilized in flip-flop circuits for synchronous digital systems, where precise timing of signal transitions is critical. These methods ensure that data is captured only at the rising or falling edge of a clock pulse, minimizing timing errors in microprocessors and communication devices. Edge triggered designs are essential in applications demanding high-speed data processing and reduced clock skew, such as CPU register updates and memory interfacing.
Use Cases for Level Triggered Systems
Level triggered systems are ideal for applications requiring continuous monitoring of an input signal's state, such as hardware interrupts in embedded systems where sustained alerts are critical. They ensure your system responds to the entire duration of a signal level, making them suitable for low-level device drivers and communication protocols that need to detect when a signal remains active. These systems excel in scenarios where signal stability and persistent state awareness are essential for reliable operation.
Advantages and Disadvantages of Edge Triggering
Edge triggering offers precise control by activating circuits only during signal transitions, which reduces power consumption and minimizes false triggering in digital systems. This method allows faster response times in synchronous designs but can be more susceptible to glitches if the input signal is noisy or unstable. However, the complexity of edge-triggered circuits often leads to increased design challenges and may require more sophisticated timing analysis compared to level-triggered approaches.
Pros and Cons of Level Triggered Approach
The level triggered approach offers simplicity and robustness, reliably detecting inputs sustained at a certain voltage level which makes it ideal for monitoring continuous states. However, it can lead to missed events or false triggers if the input remains unchanged for an extended period, reducing responsiveness in high-speed applications. Your choice should consider the trade-off between stable signal detection and potential latency in event recognition.
Choosing the Right Triggering Method
Choosing the right triggering method depends on the specific application requirements such as response speed and noise immunity. Edge-triggered systems respond only to specific signal transitions, making them ideal for high-speed digital circuits requiring precise timing. Level-triggered systems remain sensitive as long as the input signal is at a particular level, offering simplicity and reliability in environments where signal stability is crucial.
Edge Triggered vs Level Triggered: Key Takeaways
Edge triggered circuits respond to signal changes at transitions, capturing data only during rising or falling edges of the clock, which reduces sensitivity to noise and glitches. Level triggered circuits remain sensitive throughout the clock level, potentially causing multiple responses to a single signal change, making them more prone to timing issues. Understanding the timing behavior and noise susceptibility of edge triggered versus level triggered systems is crucial for designing reliable digital circuits.

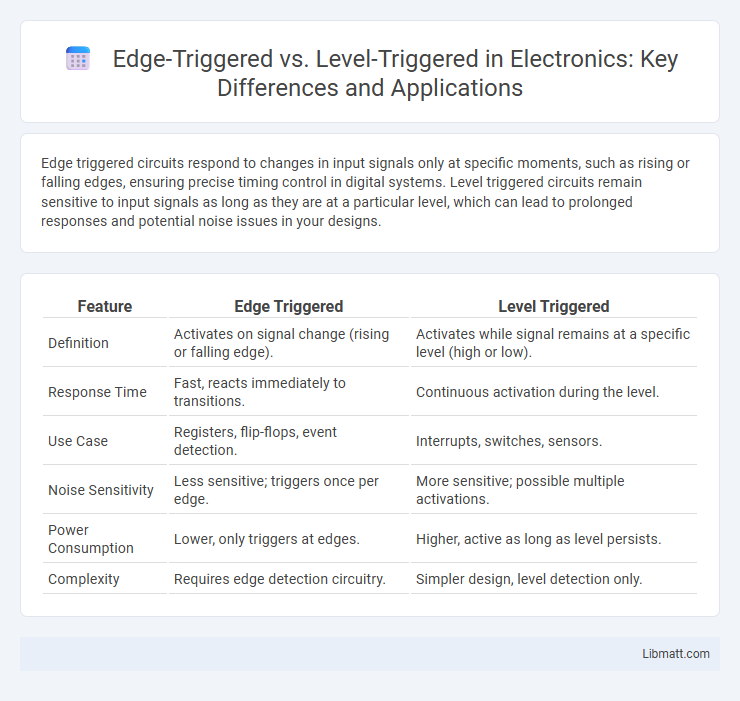

Edge Triggered vs Level Triggered Infographic
