libmatt.com Optoisolators provide electrical isolation by using light to transfer signals between two isolated circuits, ensuring minimal electrical noise and protection against voltage spikes. Transformers transfer electrical energy through electromagnetic induction, offering voltage conversion and isolation primarily in AC circuits, making them ideal for power applications.
Table of Comparison
| Feature | Optoisolator | Transformer |
|---|---|---|
| Function | Electrical isolation using light signals | Electrical isolation using magnetic induction |
| Signal Type | Digital and low-frequency analog signals | AC signals, power transfer |
| Isolation Voltage | Typically up to 5kV | Up to tens of kV depending on design |
| Size | Compact and lightweight | Bulky and heavier |
| Power Handling | Low power, signal level only | High power loads and signal level |
| Frequency Range | Up to a few MHz | Wide frequency range, includes high power AC |
| Applications | Microprocessor interfacing, signal isolation | Power supply, voltage conversion, isolation |
| Cost | Generally lower for signal isolation | Higher cost due to size and materials |
Introduction to Optoisolators and Transformers
Optoisolators, also known as optocouplers, use light to transmit electrical signals between isolated circuits, ensuring electrical isolation while enabling signal transfer. Transformers operate based on electromagnetic induction, transferring electrical energy between circuits through magnetic fields without direct electrical connection, primarily used for voltage conversion and isolation. Both components provide isolation but differ in mechanisms, frequency response, and typical applications.
Fundamental Working Principles
Optoisolators operate by transferring electrical signals through light, using an LED and a photodetector to achieve electrical isolation while maintaining signal integrity. Transformers function by electromagnetic induction, relying on coils and a magnetic core to transfer energy between circuits with voltage transformation and isolation. Understanding these fundamental working principles helps you choose the right component for signal isolation or power transfer in your application.
Key Design Differences
Optoisolators use light to achieve electrical isolation between input and output, relying on an LED and photodetector, while transformers employ magnetic coupling through coils wound on a core for isolation and signal transfer. Optoisolators offer compact size and high-speed response with galvanic isolation suitable for low-power, signal-level applications, whereas transformers handle higher power levels and provide voltage transformation capabilities. Design considerations differ significantly, with optoisolators requiring careful LED drive current control and photodetector sensitivity, and transformers necessitating core material choice, winding ratio, and frequency range optimization.
Applications in Modern Electronics
Optoisolators and transformers serve critical roles in modern electronics for signal isolation and voltage conversion, respectively. Optoisolators are widely applied in digital communication, microcontroller interfaces, and noise reduction in sensitive circuits due to their ability to provide electrical isolation while transmitting signals via light. Transformers excel in power supply design, impedance matching, and voltage step-up/step-down in audio and power electronics, ensuring efficient energy transfer and safety in your applications.
Signal Isolation: Optoisolator vs Transformer
Optoisolators provide electrical isolation by using an LED and photodetector to transmit signals without direct electrical contact, ensuring high-frequency signal integrity and noise immunity. Transformers achieve signal isolation through magnetic coupling, effectively blocking DC interference and enabling power transfer while isolating ground loops. Optoisolators excel in low-voltage, digital signal isolation, whereas transformers are preferred for higher power and analog signal applications requiring galvanic isolation.
Speed and Frequency Response Comparison
Optoisolators typically offer slower speed and limited frequency response, usually up to a few hundred kilohertz, making them suitable for low to moderate frequency isolation. Transformers provide much higher frequency response and faster signal transmission, often extending into the megahertz range, ideal for high-speed and high-frequency applications. Your choice depends on whether speed and frequency performance or electrical isolation and simplicity are the priority.
Safety and Noise Immunity Considerations
Optoisolators provide superior safety isolation by electrically separating input and output circuits, preventing high voltage surges from damaging sensitive components while offering excellent noise immunity against signal interference. Transformers also offer galvanic isolation but are bulkier and more susceptible to electromagnetic noise, making them less ideal for low-level signal isolation in noisy environments. Choosing an optoisolator enhances your system's reliability by minimizing electrical noise and ensuring safer signal transmission across isolated circuits.
Advantages of Optoisolators
Optoisolators provide superior electrical isolation and protect sensitive circuits from high voltage spikes and noise, ensuring signal integrity in communication systems. They offer faster response times and greater reliability in compact, lightweight packages compared to transformers. These devices consume less power and prevent ground loop issues, making them ideal for modern electronic applications requiring precise isolation.
Benefits of Transformers
Transformers provide galvanic isolation and voltage conversion, enabling safe power transfer between circuits with different voltage levels. They handle high-frequency signals with minimal distortion and support a wide range of power applications, from low to high voltage. Their robust construction ensures durability and efficient energy transfer in both AC and audio signal processing environments.
Choosing the Right Isolation Solution
When choosing the right isolation solution, understanding the key differences between an optoisolator and a transformer is essential. Optoisolators provide electrical isolation using light signals, ideal for low-voltage digital circuits with fast switching speeds and minimal signal distortion. Transformers excel in isolating high-voltage AC signals and enable voltage conversion, making them suitable for power applications, while your choice depends on the specific voltage, frequency, and signal type requirements of your project.

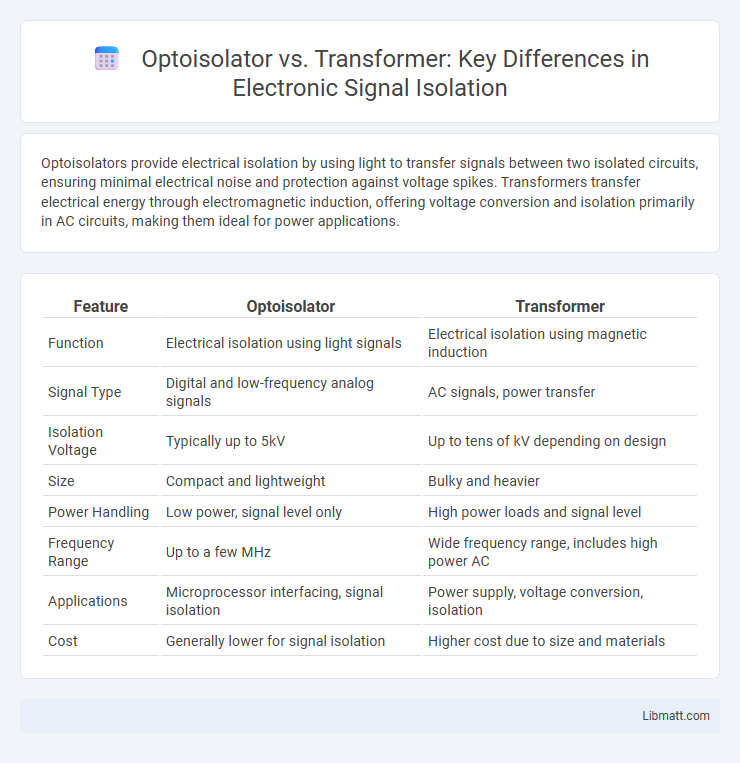

Optoisolator vs Transformer Infographic
