libmatt.com Linear regulators provide a simple, low-noise solution ideal for low power applications but often waste energy as heat, making them less efficient for high power use. Switching regulators offer higher efficiency by rapidly switching on and off, making Your device run cooler and extending battery life in power-sensitive environments.
Table of Comparison
| Feature | Linear Regulator | Switching Regulator |
|---|---|---|
| Efficiency | Low (40-60%) | High (80-95%) |
| Heat Dissipation | High | Low |
| Complexity | Simple design | Complex circuitry |
| Output Noise | Low noise, clean output | Higher noise, needs filtering |
| Size | Smaller, fewer components | Larger, more components |
| Cost | Lower cost | Higher cost |
| Input Voltage Range | Limited, must be higher than output | Wide range, step-up or step-down |
| Applications | Low power, noise-sensitive circuits | High efficiency, power-sensitive systems |
Introduction to Voltage Regulators
Voltage regulators maintain a consistent output voltage despite fluctuations in input voltage or load conditions, essential for stable electronic device performance. Linear regulators dissipate excess voltage as heat, offering simplicity and low noise ideal for sensitive analog circuits. Switching regulators use high-frequency switching and energy storage components, providing higher efficiency and flexibility for powering complex digital systems and battery-operated devices.
What is a Linear Regulator?
A linear regulator is a voltage regulator that maintains a constant output voltage by dissipating excess power as heat through a series pass transistor operating in its linear region. It provides low noise and minimal electromagnetic interference, making it ideal for sensitive analog circuits and audio applications. You can use linear regulators for simple, low-dropout voltage regulation where efficiency is less critical.
What is a Switching Regulator?
A switching regulator is a power supply device that efficiently converts voltage by rapidly switching its output on and off, controlling energy transfer through inductors, capacitors, and diodes. Unlike linear regulators, switching regulators minimize energy loss by operating in either fully-on or fully-off states, resulting in higher efficiency, especially in applications requiring significant voltage step-down or step-up. Your choice of a switching regulator can greatly improve power efficiency and thermal performance in battery-powered or high-current electronic circuits.
Key Differences: Linear vs Switching Regulators
Linear regulators provide voltage regulation through continuous dissipation of excess power as heat, making them simpler but less efficient for high voltage drops. Switching regulators use high-frequency switching and energy storage components to efficiently convert voltage with minimal heat dissipation, ideal for applications requiring power efficiency and variable input voltage. Your choice depends on the trade-off between simplicity, efficiency, heat generation, and size constraints in your power supply design.
Efficiency Comparison
Linear regulators provide lower efficiency as they dissipate excess voltage as heat, often resulting in efficiency below 50%, especially with large input-to-output voltage differences. Switching regulators, such as buck or boost converters, achieve higher efficiencies typically ranging from 80% to 95% by rapidly switching the input voltage and using energy storage components. If you aim to optimize power consumption and thermal management in your design, choosing a switching regulator is generally more effective for higher efficiency requirements.
Heat Generation and Thermal Management
Linear regulators generate significant heat due to their method of voltage drop, dissipating excess power as heat, which necessitates robust thermal management solutions like heat sinks and cooling fans. Switching regulators operate with higher efficiency by rapidly switching on and off, producing less heat and reducing the burden on thermal management systems. Effective heat dissipation is crucial for linear regulators to prevent thermal shutdown, while switching regulators typically maintain lower operating temperatures and improved power efficiency.
Noise and Ripple Performance
Linear regulators provide low noise and minimal ripple due to their simple design and continuous operation, making them ideal for sensitive analog and RF applications. Switching regulators generate higher noise and ripple because of their high-frequency switching action, which requires additional filtering to maintain signal integrity. Choosing your regulator depends on the trade-off between efficiency and low noise requirements for your specific application.
Size and Complexity
Linear regulators feature a simple design with minimal components, resulting in a compact size ideal for low-noise applications. Switching regulators involve more complex circuitry, including inductors, capacitors, and switches, leading to larger overall size but higher efficiency. The added complexity of switching regulators supports better thermal management and power conversion in space-constrained environments.
Typical Applications of Each Regulator Type
Linear regulators are commonly used in applications requiring low noise and precise voltage control, such as audio equipment, low-power analog circuits, and sensor interfaces. Switching regulators excel in power-hungry applications like computer power supplies, battery-powered devices, and LED drivers, where efficiency and heat dissipation are critical. Your choice depends on balancing efficiency needs with noise sensitivity in your design.
Choosing the Right Regulator for Your Project
Choosing the right regulator for your project depends on your power efficiency needs and heat dissipation constraints. Linear regulators provide simple design with low noise but are less efficient, ideal for low power applications or when a clean output voltage is critical. Switching regulators offer higher efficiency and are suitable for battery-powered or high-current designs, though they require careful layout to minimize electromagnetic interference.

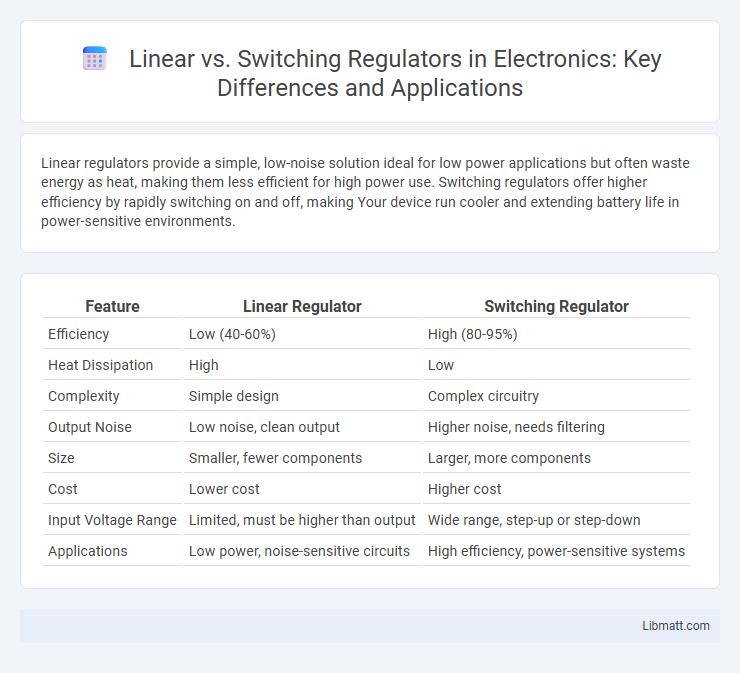

Linear vs Switching Regulator Infographic
