libmatt.com LVDS offers high-speed data transmission with low power consumption, making it ideal for internal connections like display panels in laptops. HDMI supports higher resolutions and audio signals, providing a versatile interface for external devices such as TVs and monitors, enhancing Your multimedia experience.

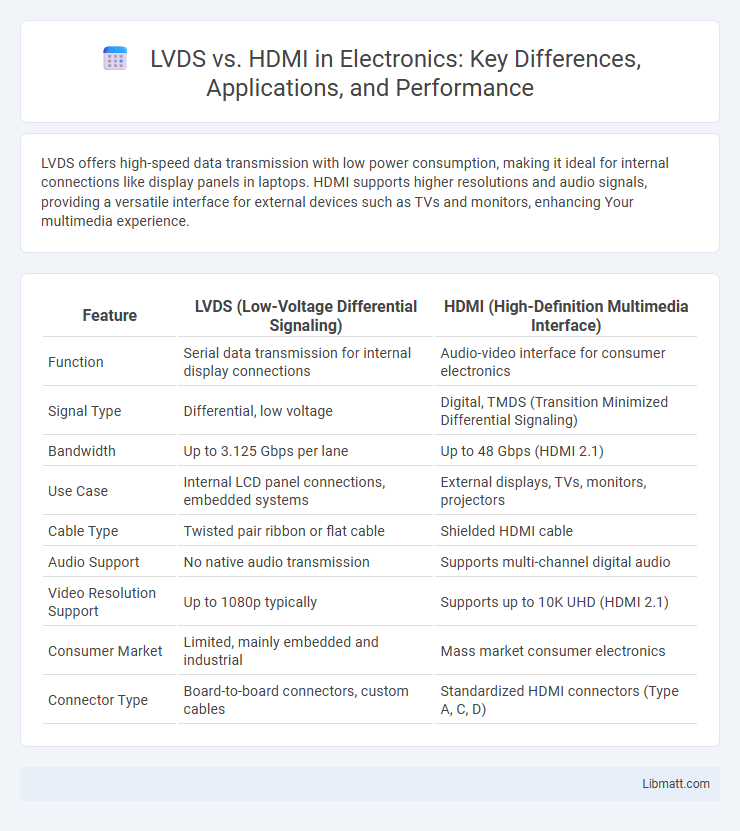

Table of Comparison
| Feature | LVDS (Low-Voltage Differential Signaling) | HDMI (High-Definition Multimedia Interface) |
|---|---|---|
| Function | Serial data transmission for internal display connections | Audio-video interface for consumer electronics |
| Signal Type | Differential, low voltage | Digital, TMDS (Transition Minimized Differential Signaling) |
| Bandwidth | Up to 3.125 Gbps per lane | Up to 48 Gbps (HDMI 2.1) |
| Use Case | Internal LCD panel connections, embedded systems | External displays, TVs, monitors, projectors |
| Cable Type | Twisted pair ribbon or flat cable | Shielded HDMI cable |
| Audio Support | No native audio transmission | Supports multi-channel digital audio |
| Video Resolution Support | Up to 1080p typically | Supports up to 10K UHD (HDMI 2.1) |
| Consumer Market | Limited, mainly embedded and industrial | Mass market consumer electronics |
| Connector Type | Board-to-board connectors, custom cables | Standardized HDMI connectors (Type A, C, D) |
Introduction to LVDS and HDMI
LVDS (Low-Voltage Differential Signaling) is a high-speed, low-power digital interface commonly used for internal connections in laptops, LCD panels, and embedded systems, delivering data over twisted-pair cables with minimal electromagnetic interference. HDMI (High-Definition Multimedia Interface) is a widely adopted digital interface designed for transmitting uncompressed video and audio signals between consumer electronics such as TVs, monitors, and gaming consoles, supporting high resolutions and advanced audio formats. Both interfaces serve distinct roles in digital communication, with LVDS optimized for short-distance, low-power internal data transfer and HDMI tailored for high-definition multimedia transmission over longer distances.
Core Technologies: LVDS Explained
Low-Voltage Differential Signaling (LVDS) is a high-speed, low-power digital interface technology designed for transmitting data over twisted-pair cables with minimal noise and electromagnetic interference. Unlike HDMI, which carries uncompressed multimedia signals and supports complex audio-video formats, LVDS focuses on efficient, low-voltage data transmission primarily used in internal connections such as LCD displays. Its core technology relies on differential signaling to improve signal integrity at high data rates, making it ideal for embedded systems and applications requiring reliable, high-speed communication over short distances.
Core Technologies: HDMI Explained
HDMI (High-Definition Multimedia Interface) is a digital interface standard designed to transmit uncompressed video and audio data through a single cable, supporting high-definition and ultra-high-definition resolutions. It integrates TMDS (Transition-Minimized Differential Signaling) technology to reduce electromagnetic interference and ensure reliable data transfer, delivering high-quality audiovisual content. Your devices using HDMI benefit from widespread compatibility and the ability to carry both video and audio signals simultaneously for seamless multimedia experiences.
Signal Transmission Differences
LVDS (Low-Voltage Differential Signaling) transmits data using differential pairs that reduce electromagnetic interference and allow for high-speed, low-power signal transmission over short to medium distances. HDMI (High-Definition Multimedia Interface) uses a single-ended TMDS (Transition Minimized Differential Signaling) system supporting both video and audio signals, optimized for longer cable lengths and high-definition content delivery. Your choice depends on the application, with LVDS favored in internal connections like laptop screens and HDMI preferred for external multimedia devices.
Data Bandwidth and Resolution Comparison
LVDS (Low Voltage Differential Signaling) supports lower data bandwidths typically up to 1.5 Gbps, making it suitable for resolutions up to 1080p at 60Hz, while HDMI (High-Definition Multimedia Interface) offers significantly higher data bandwidths, with HDMI 2.1 reaching up to 48 Gbps to support 4K at 120Hz and 8K at 60Hz resolutions. The increased bandwidth of HDMI enables richer color depths and HDR support, enhancing overall image quality beyond what LVDS can deliver. When choosing between these standards, your display resolution and required refresh rate are critical factors influencing the optimal data interface.
Applications and Use Cases
LVDS (Low-Voltage Differential Signaling) is primarily used in internal connections such as laptop displays, automotive dashboards, and industrial equipment where high-speed data transmission with low electromagnetic interference is crucial. HDMI (High-Definition Multimedia Interface) serves external multimedia applications including home entertainment systems, monitors, TVs, and gaming consoles, supporting high-definition video and audio signals over a single cable. LVDS excels in embedded systems with space and power constraints, while HDMI dominates consumer electronics requiring high-resolution audiovisual output.
Connector Types and Physical Differences
LVDS (Low-Voltage Differential Signaling) uses compact, low-profile connectors such as 20- to 30-pin headers or flat ribbon cables specifically designed for short-distance internal connections in devices like laptops and embedded systems. HDMI (High-Definition Multimedia Interface) features larger, standardized connectors including Type A (standard), Type C (mini), and Type D (micro) connectors tailored for high-definition video and audio transmission over longer distances between consumer electronics. Physically, LVDS cables are thinner, less bulky, and optimized for minimal electromagnetic interference, while HDMI cables are thicker with multiple shielded twisted pairs to support high-bandwidth digital signals and auxiliary data channels.
Compatibility and Interoperability
LVDS offers high compatibility with embedded systems and industrial applications due to its low electromagnetic interference and simple point-to-point connections. HDMI provides broad interoperability across consumer electronics, supporting audio-video signals with standardized plug-and-play functionality for TVs, monitors, and gaming consoles. Your choice depends on whether seamless multimedia integration or specialized device communication is the priority.
Pros and Cons of LVDS and HDMI
LVDS offers low power consumption and high noise immunity, making it ideal for short-distance, high-speed data transmission in embedded systems; however, it lacks the widespread compatibility and audio support found in HDMI. HDMI supports high-definition video and multi-channel audio over a single cable, offering plug-and-play convenience and broad device compatibility, but consumes more power and is less suited for long cable runs without signal boosters. Choosing LVDS is beneficial for internal display interfaces where minimal electromagnetic interference is crucial, whereas HDMI excels in consumer electronics requiring high-quality multimedia transmission.
Choosing Between LVDS and HDMI
Choosing between LVDS and HDMI depends on the application requirements such as data rate, cable length, and display type. LVDS (Low-Voltage Differential Signaling) excels in shorter distances with low electromagnetic interference and power consumption, making it ideal for internal connections in laptops and embedded systems. HDMI (High-Definition Multimedia Interface) supports high-definition video and audio transmission over longer cables, perfect for consumer electronics and external displays requiring higher bandwidth and compatibility.
