libmatt.com Single-ended signals transmit data using one wire referenced to a common ground, making them simpler but more susceptible to noise and interference. Differential signals use two complementary wires carrying opposite signals, enhancing noise immunity and signal integrity, which is crucial for high-speed or long-distance communication.
Table of Comparison
| Feature | Single-Ended | Differential |
|---|---|---|
| Signal Lines | One signal line plus ground | Two complementary signal lines |
| Noise Immunity | Lower, noise affects signal directly | High, cancels common-mode noise |
| Signal Integrity | More susceptible to interference | Better integrity over long distances |
| Voltage Levels | Referenced to ground | Referenced to each other |
| Complexity | Simple, fewer components | More complex, requires differential receivers |
| Cost | Lower cost | Higher cost |
| Common Applications | Audio, analog circuits | High-speed data, Ethernet, USB, RS-485 |
Understanding Single-ended and Differential Signals
Single-ended signals use one conductor referenced to a common ground, making them simpler but more susceptible to noise and interference. Differential signals transmit data using two complementary voltages, enhancing noise immunity and allowing for higher signal integrity over longer distances. This makes differential signaling ideal for environments requiring robust communication, such as high-speed data transfer and industrial applications.
Core Differences Between Single-ended and Differential Signaling
Single-ended signaling uses a single wire to carry the signal with reference to ground, while differential signaling employs two complementary signals transmitted over paired wires to improve noise immunity. Differential signaling significantly reduces electromagnetic interference (EMI) and crosstalk, making it ideal for high-speed or long-distance data transmission. Your choice impacts signal integrity, with differential signaling offering superior performance in noisy environments compared to single-ended methods.
How Single-ended Signaling Works
Single-ended signaling transmits data using a single wire referenced to a common ground, where the voltage level on the signal line represents the data state. This method relies on measuring the voltage difference between the signal and ground, making it susceptible to noise and electromagnetic interference. Understanding how single-ended signaling works helps you evaluate its suitability for short-distance or low-speed communication systems.
Principles of Differential Signaling
Differential signaling transmits electrical signals using two complementary voltage lines, enhancing noise immunity by allowing the receiver to detect the difference between the signals rather than their absolute values. This principle reduces electromagnetic interference (EMI) and crosstalk, making differential signaling ideal for high-speed data communication. You benefit from improved signal integrity and reduced error rates compared to single-ended signaling, which relies on a single voltage line referenced to ground.
Signal Integrity: Noise Immunity Comparison
Single-ended signals are more susceptible to noise and interference due to their reliance on a single reference point, making them less ideal for environments with high electromagnetic interference (EMI). Differential signaling improves noise immunity by transmitting equal and opposite signals through two conductors, allowing common-mode noise to be effectively canceled out at the receiver. Your choice between single-ended and differential signaling directly impacts signal integrity, especially in applications demanding high noise immunity and reliable data transmission.
Application Areas: When to Use Each Signaling Method
Single-ended signaling excels in low-speed, short-distance applications such as consumer electronics and simple sensor interfaces due to its simplicity and cost-effectiveness. Differential signaling is ideal for high-speed data transmission, noisy environments, and long-distance communication found in networking cables, automotive systems, and industrial machinery. Your choice depends on balancing factors like signal integrity requirements, environmental noise, and data rate demands.
Transmission Distance and Data Rate Considerations
Differential signaling supports longer transmission distances and higher data rates by minimizing electromagnetic interference and signal degradation compared to single-ended signaling. Single-ended signals are more susceptible to noise over extended cables, limiting effective distance and speed. Differential systems maintain signal integrity in high-speed, long-distance applications such as Ethernet and USB interfaces.
Cost and Complexity: Single-ended vs Differential
Single-ended signaling typically offers lower cost and simpler design due to fewer components and less complex circuitry, making it ideal for budget-conscious projects. Differential signaling, while more expensive and complex because it requires paired conductors and differential amplifiers, provides superior noise immunity and signal integrity in harsh environments. Your choice between single-ended and differential depends on balancing budget constraints against the need for robust, high-quality signal transmission.
Common Standards and Connectors for Both Approaches
Single-ended signals commonly use connectors like RCA, BNC, and TS, adhering to standards such as AES3 and consumer audio specifications. Differential signaling employs connectors including XLR and TRS, supporting professional protocols like AES/EBU and balanced audio transmission. Both approaches rely on industry standards to ensure signal integrity, with differential systems favored in environments demanding noise immunity and high signal fidelity.
Summary Table: Key Pros and Cons
Single-ended signals offer simplicity and lower cost but are more susceptible to noise and electromagnetic interference, making them less suitable for long-distance transmission. Differential signals provide improved noise immunity and better signal integrity over extended distances by using two complementary signals, though they require more complex circuitry and higher cost. Choosing between single-ended and differential depends on application requirements such as noise environment, distance, and budget constraints.

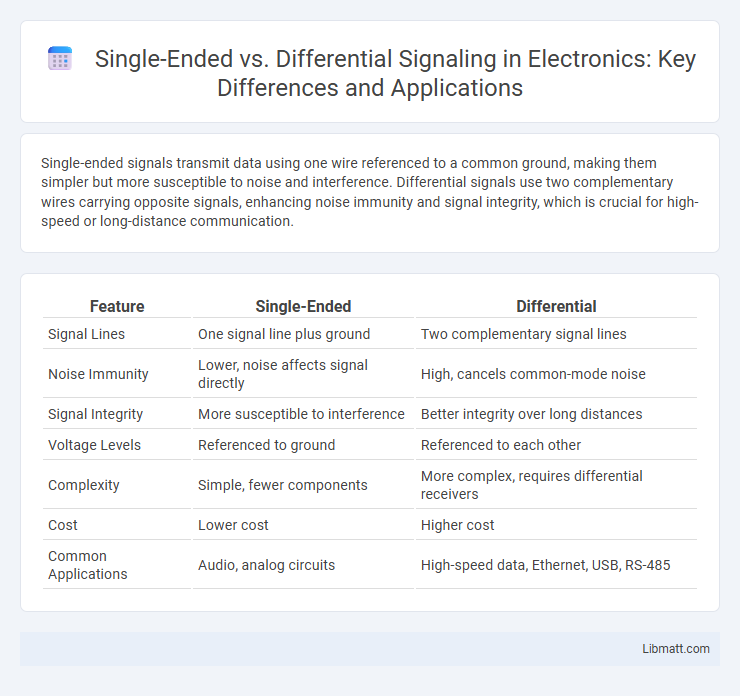

Single-ended vs Differential Infographic
