libmatt.com A hysteresis comparator provides a single threshold with two different switching points to prevent noise-induced fluctuations, ensuring stable output when input signals hover near the switching level. Your choice of a window comparator allows detection of whether an input signal falls within a specific voltage range by using two thresholds, making it ideal for boundary-sensitive applications.
Table of Comparison
| Feature | Hysteresis Comparator | Window Comparator |
|---|---|---|
| Function | Switches output based on upper and lower threshold with hysteresis | Detects if input voltage is within a specific voltage range (window) |
| Thresholds | Two thresholds (upper and lower) with hysteresis gap | Two independent reference voltages defining a window |
| Output Behavior | Changes output state only when input crosses thresholds with noise immunity | Output indicates if input voltage is inside or outside the window |
| Noise Immunity | High due to hysteresis effect | Moderate, depends on window width |
| Typical Applications | Switch debouncing, oscillators, Schmitt triggers | Voltage monitoring, level detection, battery status |
| Complexity | Simple, uses feedback for hysteresis | More complex, requires two comparators or a specialized IC |
Introduction to Voltage Comparators
Voltage comparators are essential electronic components used to compare input voltages and generate a digital output indicating which input is higher. A hysteresis comparator introduces positive feedback to create a distinct threshold with noise immunity and stable switching, preventing rapid oscillations near the reference voltage. In contrast, a window comparator uses two comparators to define an upper and lower voltage limit, enabling detection of whether an input voltage lies within or outside a specified range, making it ideal for monitoring voltage windows in your circuits.
What is a Hysteresis Comparator?
A hysteresis comparator is an electronic circuit that incorporates positive feedback to create two distinct threshold voltage levels for switching, which prevents rapid toggling or noise-induced oscillations in the output. It is particularly effective in signal conditioning where input signals fluctuate around a reference point, improving stability by introducing a hysteresis band. Your design benefits from enhanced noise immunity and cleaner digital transitions compared to a standard window comparator, which switches output states only when the input crosses predefined upper or lower voltage limits without feedback control.
What is a Window Comparator?
A Window Comparator is an electronic circuit designed to detect whether an input voltage lies within a specific range, defined by two threshold levels called the lower and upper reference voltages. It outputs a signal indicating when the input stays between these preset boundaries, making it ideal for applications requiring voltage monitoring within a safe or desired window. Unlike a Hysteresis Comparator, which incorporates feedback to provide noise immunity and prevent rapid switching near a single threshold, the Window Comparator focuses on maintaining the input voltage within two distinct limits simultaneously.
Working Principle of Hysteresis Comparator
The working principle of a hysteresis comparator involves introducing positive feedback to create two distinct threshold voltage levels, preventing rapid switching caused by noise near the input signal. This comparator output changes state only when the input voltage crosses either the upper or lower threshold, providing noise immunity and stable switching behavior. Your applications benefit from hysteresis comparators when clean signal transitions are critical, unlike window comparators that detect whether inputs fall within a specific voltage range.
Working Principle of Window Comparator
A window comparator operates by using two reference voltage levels to create an upper and lower threshold, allowing it to detect if an input voltage falls within a specific range or "window." When the input voltage lies between these two set levels, the comparator outputs a high signal, while signals outside the window trigger a low output. Your applications benefit from precision in detecting voltage ranges, which is essential for systems requiring boundary monitoring or threshold control.
Key Differences Between Hysteresis and Window Comparators
Hysteresis comparators feature two distinct threshold voltages that create a dead zone to prevent noise-induced switching, making them ideal for stable output in noisy signals. Window comparators use two reference voltages to detect whether an input signal falls within a specific voltage range, providing a binary output for in-range vs. out-of-range conditions. The primary difference lies in hysteresis comparators stabilizing switching around a single threshold, while window comparators define and monitor a voltage window for more precise level detection.
Advantages of Hysteresis Comparator
Hysteresis comparators provide improved noise immunity by introducing positive feedback, which creates distinct upper and lower threshold levels, preventing output oscillation in noisy input environments. This feature makes them ideal for applications requiring stable switching behavior, such as sensor signal conditioning and waveform shaping. Your designs benefit from reduced false triggering and enhanced reliability compared to window comparators, which lack this built-in noise rejection capability.
Advantages of Window Comparator
A window comparator offers precise voltage range monitoring by providing two distinct threshold levels, enabling detection when an input signal falls within or outside a specified voltage window. This dual-threshold operation reduces false triggering and noise susceptibility compared to hysteresis comparators, which typically use a single threshold with hysteresis. Window comparators are ideal for applications requiring continuous monitoring of voltage limits, such as battery management systems and analog signal processing.
Common Applications of Each Comparator
Hysteresis comparators are commonly used in applications requiring noise immunity and stable switching, such as temperature control systems, oscillators, and switch debouncing circuits. Window comparators are ideal for monitoring input signals that must remain within a specific voltage range, often applied in battery level detection, overvoltage and undervoltage protection, and digital signal processing. When selecting your comparator, consider whether your application demands precise threshold detection with noise rejection or reliable voltage range monitoring.
Choosing the Right Comparator for Your Circuit
Selecting the right comparator depends on the specific application requirements and noise environment of your circuit. A hysteresis comparator is ideal for reducing false triggers in noisy signals by introducing a defined threshold gap, enhancing stability and preventing rapid switching. In contrast, a window comparator is suited for detecting when an input signal falls within a specific voltage range, making it effective for monitoring systems that require upper and lower voltage limits.

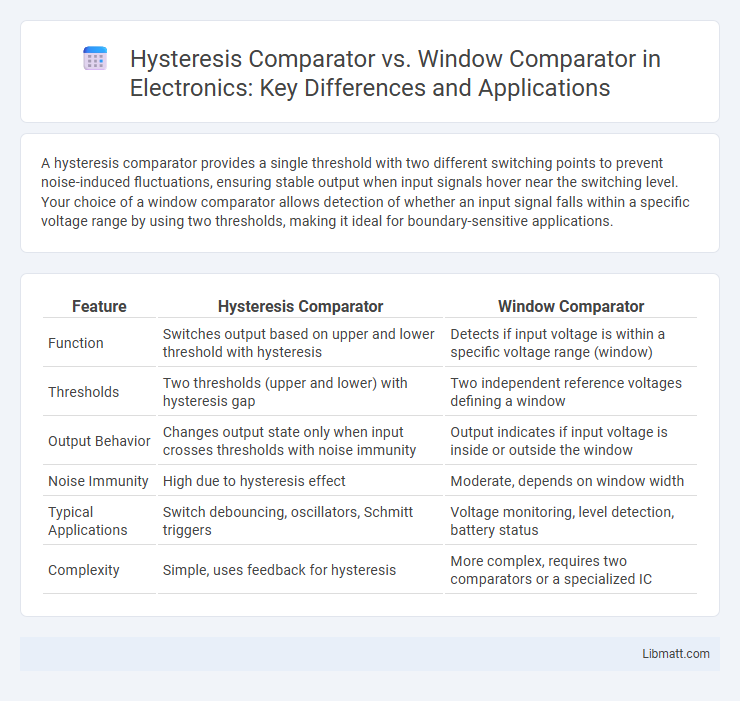

Hysteresis comparator vs Window comparator Infographic
