libmatt.com A Triac controls AC power by allowing current flow in both directions, making it ideal for dimming and speed control applications, while an SCR (Silicon Controlled Rectifier) conducts current in only one direction and is used primarily in rectification and switching circuits. Understanding the differences helps you select the right device for AC power regulation or DC control in your electronic projects.
Table of Comparison
| Feature | Triac | SCR (Silicon Controlled Rectifier) |
|---|---|---|
| Function | Controls AC power by switching both halves of the waveform | Controls DC or AC power by switching only one half of the waveform |
| Operation | Bidirectional switching device | Unidirectional switching device |
| Control | Triggered by gate current, conducts in both directions | Triggered by gate current, conducts in one direction |
| Applications | Light dimmers, motor speed controls, AC switches | Rectifiers, DC motor controls, phase control applications |
| Complexity | More complex gate triggering due to bidirectional operation | Simple gate triggering for unidirectional operation |
| Off-state Voltage | Can block voltage in both directions | Blocks voltage only in forward direction |
Introduction to Triac and SCR
Triacs and SCRs are semiconductor devices used for controlling power in AC circuits, with the Triac capable of conducting current in both directions, while the SCR only conducts in one direction. Triacs are commonly employed in dimmer switches, motor speed controls, and light regulators, offering efficient bidirectional control. Your choice between a Triac and an SCR depends on the requirement to control AC power flow symmetrically or rectified DC in specific electronic applications.
Basic Working Principles
A Triac controls AC power by allowing current flow in both directions after being triggered by a gate signal, making it ideal for alternating current applications. An SCR (Silicon Controlled Rectifier) permits current flow only in one direction once triggered, primarily used for controlling DC power or rectified AC circuits. Both devices operate by using a small gate current to switch larger currents, but the Triac's ability to conduct in two directions distinguishes its function from the unidirectional SCR.
Key Differences Between Triac and SCR
Triacs and SCRs are both semiconductor devices used for controlling AC power, but a Triac can conduct current in both directions while an SCR conducts only in one direction. The Triac is triggered by either positive or negative gate signals, making it suitable for AC switching, whereas the SCR requires a positive gate signal and is typically used for DC or controlled rectification. Your choice depends on whether you need bidirectional control in AC circuits (Triac) or unidirectional control with high current capacity and robustness (SCR).
Construction and Symbol Comparison
Triacs and SCRs both serve as semiconductor devices used for controlling AC power, but their construction differs significantly; a Triac consists of two SCRs connected in inverse parallel within a single package, enabling it to conduct current in both directions. The SCR, or Silicon Controlled Rectifier, has a three-layer, three-junction structure, functioning as a unidirectional device controlled by a gate signal. In circuit diagrams, Triac symbols show a bidirectional arrow with a single gate line, while SCR symbols depict a unidirectional arrow with a gate line indicating controlled conduction in one direction only.
Operating Modes and Triggering Methods
Triacs operate in both directions, conducting current during both halves of an AC cycle, while SCRs conduct only during one half-cycle when triggered. Triggering a triac requires a gate current in either polarity, enabling it to switch on multiple times per AC cycle, whereas an SCR needs a positive gate pulse relative to its cathode and remains on until the current drops below a holding threshold. Understanding these operating modes and triggering methods helps optimize Your choice for AC power control or rectification applications.
Applications of Triac vs SCR
Triacs are widely used in AC power control applications such as light dimmers, motor speed controls, and household appliances due to their ability to conduct current in both directions. SCRs (Silicon Controlled Rectifiers) excel in high-power DC switching and rectification tasks, making them ideal for power conversion, controlled rectifiers in DC motor drives, and overvoltage protection circuits. The choice between Triac and SCR depends on requirements like load type, control precision, and the need for bidirectional current flow.
Advantages and Limitations
Triacs provide bidirectional current control, making them ideal for AC power regulation such as in light dimmers and motor speed controls, whereas SCRs are unidirectional and better suited for controlled rectification and DC switching. Triacs offer simpler circuit design and cost-effectiveness but can suffer from false triggering and lower noise immunity compared to SCRs. SCRs provide higher reliability and precise control in high voltage and current applications but require complex gate driving circuits and are limited to single polarity conduction.
Performance Factors and Efficiency
Triacs excel in AC power control due to their ability to conduct in both directions, providing efficient phase control and reducing harmonic distortion in light dimmers and motor speed controls. SCRs offer higher voltage and current handling capabilities with superior switching speed, making them ideal for high-power DC applications and precise control in industrial rectifiers. Performance efficiency depends on the load type and switching requirements, with Triacs favored for bidirectional AC loads and SCRs preferred for unidirectional, high-power environments.
Selection Criteria for Power Control
Selecting between a Triac and an SCR for power control depends on the application's voltage, current requirements, and the nature of the load. Triacs are preferred for AC power control with bidirectional conduction and are ideal for light to medium loads such as dimmers and small motor controls. SCRs offer precise control in high-power DC or controlled rectification applications, excelling in environments requiring high efficiency and robustness under heavy load conditions.
Summary Table: Triac vs SCR
A summary table comparing Triac and SCR highlights key differences: Triac can conduct current in both directions and is ideal for AC power control, while SCR conducts only in one direction, making it suitable for DC applications and controlled rectification. Triac offers simpler gate triggering with bidirectional operation, whereas SCR provides higher current capacity and better efficiency for high-power DC circuits. These distinctions influence device selection based on application requirements such as bidirectional control, voltage type, and load characteristics.

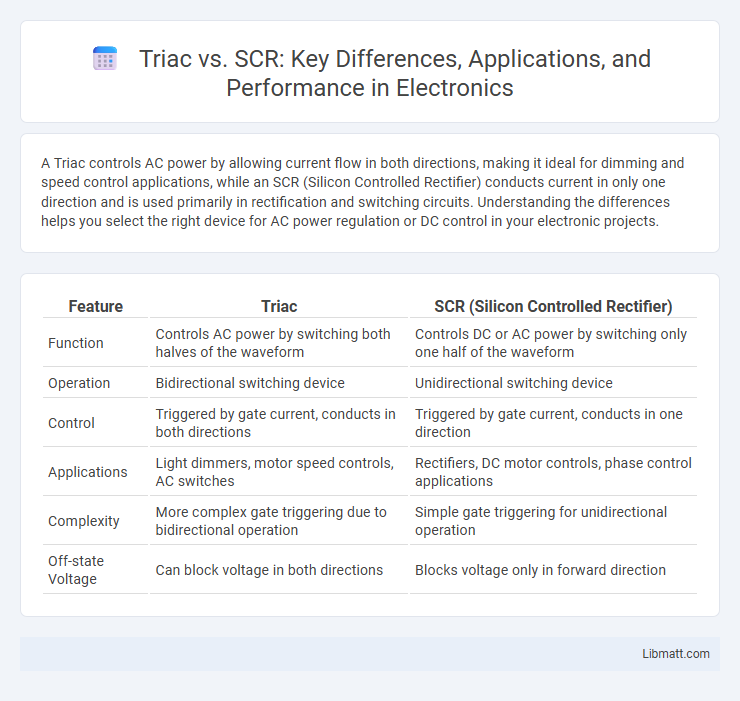

Triac vs SCR Infographic
