UART vs. SPI in Electronics: Key Differences, Advantages, and Applications

UART enables asynchronous serial communication with simple wiring ideal for point-to-point connections, while SPI provides faster, synchronous data transfer with separate clock and data lines, suited for multiple peripheral devices on the same bus. Your choice depends on whether you prioritize ease of use and longer distance (UART) or high-speed communication and multiple device control (SPI).

Table of Comparison

Introduction to UART and SPI

UART (Universal Asynchronous Receiver/Transmitter) is a serial communication protocol used for asynchronous data transmission between devices, typically operating with two wires for transmit and receive. SPI (Serial Peripheral Interface) is a synchronous communication protocol that uses separate lines for clock, data in, data out, and chip select, enabling full-duplex and faster data exchange. Both UART and SPI are fundamental in embedded systems, with UART favored for simplicity and SPI preferred for speed and multi-device communication.

Overview of Serial Communication Protocols

UART and SPI are widely used serial communication protocols that enable data exchange between microcontrollers and peripheral devices. UART (Universal Asynchronous Receiver/Transmitter) operates asynchronously with two wires, transmitting data serially using start and stop bits, making it suitable for simple point-to-point communication. SPI (Serial Peripheral Interface) is a synchronous protocol using four wires--MISO, MOSI, SCLK, and SS--allowing full-duplex, high-speed data transfer ideal for multiple device interfacing in embedded systems.

What is UART?

UART (Universal Asynchronous Receiver/Transmitter) is a hardware communication protocol used for asynchronous serial communication between devices. It transmits data bit by bit over a single wire pair, using start and stop bits to frame each byte, enabling reliable data exchange without a shared clock signal. Your microcontroller or computer can use UART to connect with peripherals like GPS modules, Bluetooth devices, and serial consoles.

What is SPI?

SPI (Serial Peripheral Interface) is a high-speed communication protocol used to transfer data between microcontrollers and peripheral devices through a master-slave architecture. It utilizes separate lines for clock (SCLK), master out slave in (MOSI), master in slave out (MISO), and a chip select (CS) to enable full-duplex data transmission. Your choice of SPI over UART is often driven by its faster speed, synchronous data transfer, and ability to communicate with multiple devices simultaneously.

Key Differences Between UART and SPI

UART communicates data serially using two wires, TX and RX, supporting asynchronous transmission without a clock signal, ideal for long-distance communication. SPI employs a synchronous protocol with four wires--MISO, MOSI, SCLK, and SS--enabling higher data transfer speeds and full-duplex communication suitable for short-distance, high-speed connections. UART is simpler and used primarily for point-to-point communication, whereas SPI supports multiple devices with separate chip select lines and offers better performance in embedded systems.

Communication Speed Comparison

SPI offers significantly higher communication speeds than UART, often reaching tens of megabits per second, while UART typically maxes out at around 1 megabit per second depending on the baud rate. SPI's full-duplex, clock-driven protocol enables faster and more reliable data transfer, whereas UART is asynchronous and limited by start/stop bits overhead. Choosing between UART and SPI for your project depends on the required data rate and system complexity.

Data Transmission Methods

UART transmits data serially using asynchronous communication, sending one bit at a time with start and stop bits to frame each byte. SPI employs synchronous communication, transferring data simultaneously on separate lines for clock, data, and select signals, enabling full-duplex communication. SPI's clock-driven transfer allows higher data rates and more precise timing control compared to UART's simpler, slower asynchronous method.

Use Cases and Applications

UART excels in low-speed, point-to-point communication ideal for microcontroller-to-PC connections, GPS modules, and Bluetooth devices. SPI suits high-speed, short-distance data transfer scenarios such as memory card interfaces, display drivers, and sensor arrays requiring fast data rates and multiple peripherals. Both protocols are essential in embedded systems, with UART favored for simplicity and SPI chosen for performance in complex applications.

Advantages and Disadvantages

UART offers simplicity and ease of implementation with fewer pins required, making it ideal for point-to-point communication over moderate distances. SPI provides higher data transfer rates and full-duplex communication, suitable for short-distance, multi-device setups but requires more pins and complex wiring. UART's asynchronous nature can result in timing errors, while SPI's complexity and pin count may increase hardware costs and design challenges.

Choosing Between UART and SPI

Choosing between UART and SPI depends on the specific communication requirements such as data speed, distance, and complexity of wiring. UART provides simple, asynchronous serial communication suitable for low-speed, point-to-point connections, while SPI offers higher data transfer rates with synchronous, multi-device configurations using separate clock and data lines. SPI is preferred in applications requiring fast data exchange and multiple peripherals, whereas UART excels in straightforward, long-distance communication scenarios.

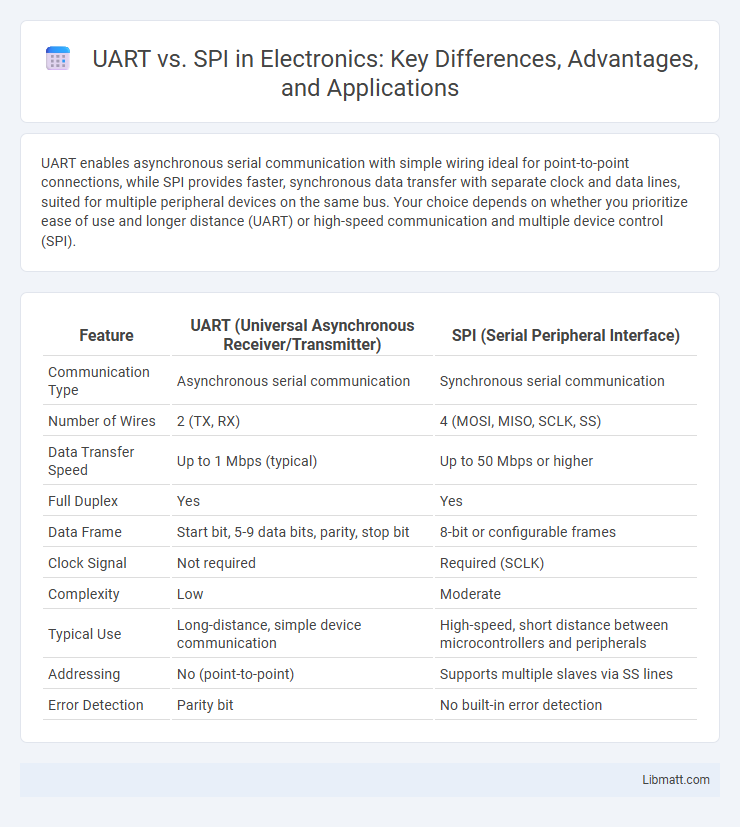

UART vs SPI Infographic
