libmatt.com Open drain outputs allow multiple devices to share a line by pulling it low, requiring an external pull-up resistor to define the high state, which conserves power and reduces component count. Totem pole outputs actively drive the line both high and low, enabling faster switching speeds and stronger signal integrity but consuming more power and risking contention if not properly managed.
Table of Comparison
| Feature | Open Drain Output | Totem Pole Output |
|---|---|---|
| Structure | Single transistor pull-down | Push-pull transistor pair |
| Output Type | Sinking current only | Sourcing and sinking current |
| Voltage Levels | Requires external pull-up resistor | Drives output high and low directly |
| Power Consumption | Low when output is low | Higher due to active driving both states |
| Speed | Slower due to resistor and load capacitance | Faster switching |
| Wiring Flexibility | Supports wired-AND connections | No wired-AND capability |
| Applications | Interrupt lines, I2C bus, open-collector logic | Standard push-pull outputs, high-speed logic |
Introduction to Output Configurations
Open drain output configurations use a transistor to pull the line low, requiring an external pull-up resistor to achieve a high state, making them ideal for wired-AND logic and multi-device communication buses like I2C. Totem pole outputs, also known as push-pull outputs, actively drive the line to both high and low states using a pair of transistors, providing faster switching and stronger drive capability for digital signals. Understanding the differences in speed, power consumption, and compatibility between open drain and totem pole outputs helps you select the appropriate configuration for your circuit design.
What is Open Drain Output?
Open drain output is a type of digital output configuration where the transistor's drain terminal is directly connected to the output pin, allowing the pin to either pull the line low or leave it floating (high-impedance state). This setup requires an external pull-up resistor to a positive voltage to achieve a high logic level, enabling multiple devices to share a single line without conflict. You can use open drain outputs for wired-AND logic operations, level shifting, or communication protocols like I2C that rely on this open-collector/open-drain principle.
What is Totem Pole Output?
Totem pole output is a type of digital output stage commonly found in TTL (Transistor-Transistor Logic) circuits, where two transistors are stacked in series to actively drive the output both high and low, providing fast switching and low output impedance. This configuration allows the output to source and sink current efficiently, resulting in faster response times compared to open drain outputs. Unlike open drain outputs, totem pole outputs do not require external pull-up resistors as they can actively drive the line to a defined logic level.
Electrical Characteristics Comparison
Open drain outputs can only pull the line low, requiring an external pull-up resistor to achieve a high level, resulting in slower rise times and higher power consumption due to the resistor. Totem pole outputs actively drive the line both high and low, providing faster switching speeds and lower output impedance, which improves signal integrity and reduces power dissipation. You should choose the output type based on your circuit's speed requirements and loading conditions to optimize performance and power efficiency.
Signal Level Compatibility
Open drain outputs require an external pull-up resistor to achieve a defined high logic level, making them highly compatible with various voltage levels and allowing easy interfacing with different logic families. Totem pole outputs actively drive both high and low states, providing faster transitions but are typically limited to matching the device's supply voltage for signal compatibility. Open drain is preferred for wired-AND configurations and mixed voltage environments, while totem pole outputs excel in speed-sensitive, single-voltage applications.
Typical Applications of Open Drain
Open drain outputs are ideal for applications requiring wired-AND configurations or multiple devices connected to a common bus line, such as I2C communication and interrupt signaling. They are frequently used in level shifters, open-collector relay driving, and systems needing external pull-up resistors for voltage compatibility. Industrial sensor interfaces and shared communication lines benefit from open drain's flexibility and simple fail-safe logic.
Typical Applications of Totem Pole
Totem pole outputs are commonly used in digital logic circuits, microcontrollers, and TTL (transistor-transistor logic) devices due to their ability to actively drive the output both high and low with low output impedance. They provide faster switching speeds and stronger drive capability, making them ideal for applications such as driving LEDs, interfacing with other logic gates, and ensuring clean, fast digital signals in communication buses. If your project requires precise, efficient signal control and quick transitions, totem pole outputs offer superior performance compared to open drain configurations.
Advantages and Disadvantages
Open drain outputs enable wired-AND connections and simplify interfacing with different voltage levels, offering flexibility in bus systems and external pull-up resistor control. However, they consume more power when driving low and require additional components, resulting in slower signal transitions and increased board complexity. Totem pole outputs provide faster switching speeds and strong drive capability without external resistors, but they cannot easily interface multiple outputs on a shared line and risk damaging devices if output conflicts occur.
Design Considerations
Open drain outputs require external pull-up resistors, influencing board space, power consumption, and signal integrity, while totem pole outputs integrate both pull-up and pull-down transistors, offering faster switching speeds and lower power usage. Design considerations include the need for open drain outputs in wired-AND logic circuits or when interfacing with different voltage levels, whereas totem pole outputs are preferred for push-pull configurations requiring strong drive capability and fast transitions. Engineers must evaluate system requirements such as noise immunity, speed, and power efficiency when selecting between open drain and totem pole output structures.
Choosing the Right Output for Your Circuit
Open drain outputs provide flexibility for wired-AND configurations and level shifting by requiring an external pull-up resistor, making them ideal for bus systems and mixed-voltage environments. Totem pole outputs offer actively driven high and low states, enabling faster signal transitions and stronger drive capability suitable for high-speed digital circuits. Selecting the right output depends on factors like required speed, power consumption, and interfacing needs, where open drain suits multi-device communication and totem pole excels in single-source, speed-critical applications.

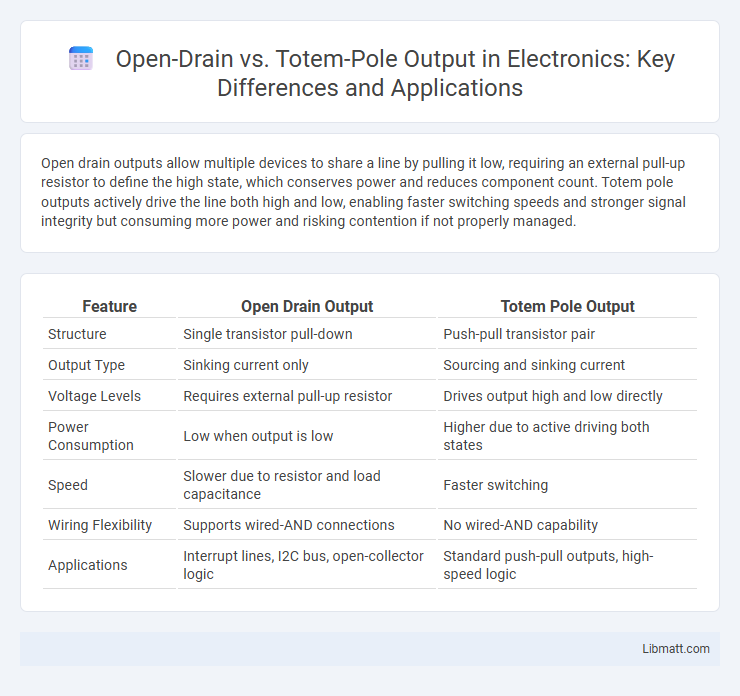

Open drain vs Totem pole output Infographic
