libmatt.com A peak detector captures and holds the maximum voltage of a signal, providing a steady output that represents the highest signal level reached, while a sample and hold circuit samples the input voltage at a specific moment and maintains that value for a period to enable accurate analog-to-digital conversion. Your choice depends on whether you need to track signal peaks continuously or preserve specific voltage instances for processing.
Table of Comparison
| Feature | Peak Detector | Sample and Hold |
|---|---|---|
| Function | Captures and stores the maximum input signal value | Samples the input signal and holds the value for a defined period |
| Application | Envelope detection, RF signal processing | Analog-to-digital conversion, signal stabilization |
| Output Stability | Holds peak voltage until reset or discharge | Maintains sampled voltage during hold interval |
| Response Time | Fast; captures rapid peak changes | Depends on sample rate; holds steady between samples |
| Components | Diode, capacitor, operational amplifier | Analog switch, capacitor, buffer amplifier |
| Applications in Signal Processing | Peak power measurement, amplitude modulation detection | Digitizing analog signals, waveform analysis |
| Limitations | Leakage causes voltage decay over time | Sample rate limits bandwidth; droop in hold period |
Introduction to Peak Detectors and Sample-and-Hold Circuits
Peak detectors capture and hold the maximum amplitude of an input signal, using diodes and capacitors to store the peak voltage until reset. Sample-and-hold circuits sample the input voltage at precise intervals and maintain this value stable for a period, crucial in analog-to-digital conversion processes. Both circuits play essential roles in signal processing by preserving important signal characteristics, with peak detectors focusing on amplitude extremes and sample-and-hold circuits enabling accurate signal tracking.
Definition and Basic Operation of Peak Detectors
A peak detector is an electronic circuit designed to capture and hold the maximum amplitude value of an input signal over a specified period, utilizing components like diodes, capacitors, and operational amplifiers to store the peak voltage. Unlike sample and hold circuits, which periodically sample the input signal and maintain the sampled level until the next sample, peak detectors continuously track the highest input voltage and retain this peak value until reset or the signal drops below the stored peak. This fundamental operation makes peak detectors essential in applications such as envelope detection, signal level monitoring, and amplitude demodulation.
What is a Sample-and-Hold Circuit?
A Sample-and-Hold circuit captures and maintains the voltage level of a continuously varying analog signal at a specific moment, enabling accurate analog-to-digital conversion and signal processing. Unlike a Peak Detector, which only tracks the maximum signal amplitude, the Sample-and-Hold circuit preserves the exact sampled value for a designated period. You rely on Sample-and-Hold circuits in data acquisition systems, communication devices, and instrumentation to ensure stable and precise measurements.
Key Components and Circuit Design Differences
Peak detectors primarily consist of a diode, capacitor, and operational amplifier designed to capture and hold the maximum voltage level of an input signal, relying on the diode's rectifying properties and the capacitor's charge retention. Sample and hold circuits incorporate an analog switch, capacitor, and buffer amplifier, enabling periodic sampling of the input voltage and maintaining that sampled value for processing. The key design difference lies in the peak detector's continuous tracking of signal peaks, whereas sample and hold circuits function on discrete sampling intervals controlled by timing signals.
Working Principle: Peak Detection vs Sample-and-Hold
A peak detector captures and holds the highest voltage level of an input signal by quickly charging a capacitor through a diode and maintaining the peak voltage until it is reset. In contrast, a sample-and-hold circuit samples the input signal at specific intervals using a switch and stores the sampled voltage on a capacitor for later processing. Peak detectors track signal maxima continuously, while sample-and-hold circuits capture discrete instantaneous values for periodic analysis.
Common Applications of Peak Detectors
Peak detectors are frequently used in audio signal processing to capture the maximum amplitude of sound waves, essential for dynamic range compression and audio level monitoring. They also play a critical role in RF communications for envelope detection and signal strength indication. Your circuits benefit from peak detectors when precise transient signal measurement is required, unlike sample and hold circuits that focus on capturing and maintaining signal voltage at a specific moment.
Typical Uses for Sample-and-Hold Circuits
Sample-and-hold circuits are commonly used in analog-to-digital conversion systems to capture and maintain a voltage level for accurate digital measurement. They play a crucial role in signal processing applications such as waveform digitizers, data acquisition modules, and communication receivers by stabilizing transient signals. Your designs benefit from their ability to preserve signal integrity during rapid voltage fluctuations, enabling precise sampling and analysis.
Performance Comparison: Accuracy, Speed, and Stability
Peak detectors excel in accurately capturing the maximum signal amplitude with high speed, making them ideal for applications requiring quick response times. Sample and hold circuits provide greater stability by maintaining a constant output voltage over a specified period, improving signal integrity for subsequent processing. In terms of accuracy, peak detectors may suffer from droop and leakage errors, whereas sample and hold circuits typically offer better precision but at the expense of slower acquisition speed.
Advantages and Disadvantages of Each Approach
Peak detectors excel at capturing the maximum amplitude of rapidly changing signals, offering simplicity and fast response but often suffer from voltage droop and limited accuracy over time. Sample and hold circuits provide precise and stable voltage storage ideal for analog-to-digital conversion, yet they require more complex circuitry and may introduce acquisition time delays and hold-mode errors. Choosing between the two depends on specific application requirements like speed, accuracy, and signal stability.
How to Choose: Peak Detector vs Sample-and-Hold for Your Project
Choosing between a peak detector and a sample-and-hold circuit depends on the specific signal characteristics and measurement requirements. Peak detectors excel in capturing the maximum amplitude of rapidly changing signals, making them ideal for signal envelope detection and transient analysis. Sample-and-hold circuits are better suited for maintaining stable voltage levels over a sampling interval, crucial for analog-to-digital conversion and precise measurement in data acquisition systems.

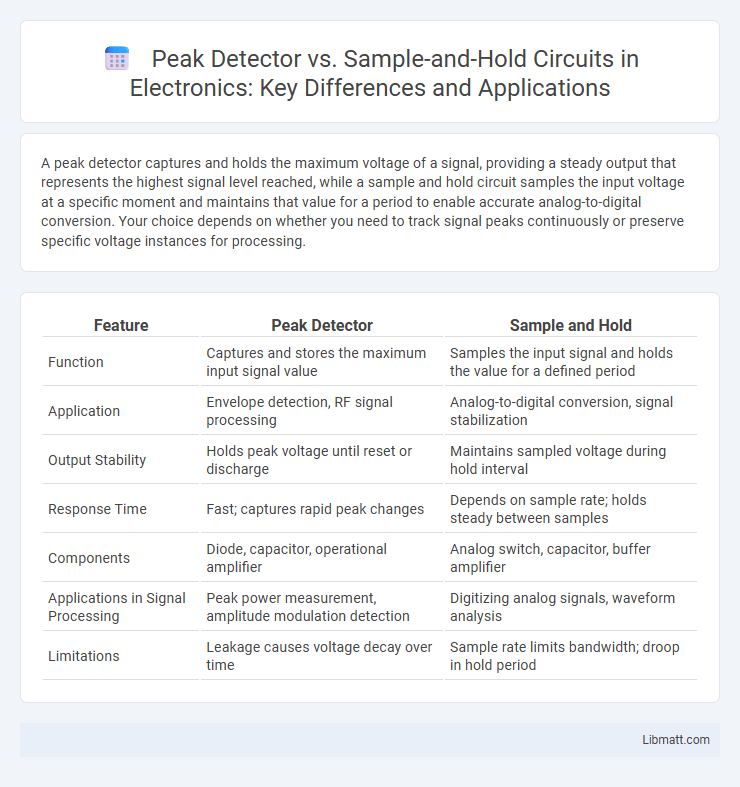

Peak detector vs Sample and hold Infographic
