libmatt.com Memory mapped I/O integrates device registers into the same address space as regular memory, allowing Your CPU to use standard memory instructions for communication, boosting efficiency and simplifying programming. Isolated I/O uses a separate address space with specific instructions, providing distinct control and reducing address space conflicts but often requiring additional instruction overhead.
Table of Comparison
| Feature | Memory Mapped I/O | Isolated I/O |
|---|---|---|
| Addressing | Shares system memory address space | Uses separate I/O address space |
| Instruction Set | Accessed via standard memory instructions | Requires special I/O instructions (e.g., IN, OUT) |
| Speed | Generally faster due to unified addressing | May be slower due to additional instruction decoding |
| Complexity | Simpler CPU design, no special I/O instructions needed | More complex CPU design with separate I/O handling |
| Address Space Utilization | Consumes part of system memory address range | Preserves full system memory address range |
| Peripheral Access | Memory and peripherals accessed uniformly | Separates peripheral access from memory operations |
Introduction to I/O Techniques
Memory Mapped I/O and Isolated I/O are two primary techniques used to manage communication between a processor and peripheral devices. Memory Mapped I/O uses the same address space for both memory and I/O devices, allowing the CPU to handle I/O operations with standard memory instructions, which can simplify programming and improve speed. Isolated I/O, on the other hand, uses a separate address space for I/O devices, requiring specific instructions to access peripherals, thereby preventing any address conflicts and ensuring dedicated control for I/O operations.
What is Memory Mapped I/O?
Memory Mapped I/O is a technique where device registers are assigned specific address locations within the same address space as the system memory, allowing the CPU to read and write to these devices using standard memory instructions. This enables seamless communication between the processor and peripheral hardware without special I/O instructions, improving efficiency and simplifying programming. Understanding Memory Mapped I/O helps you optimize hardware interfacing and enhance system performance by leveraging unified address access.
What is Isolated I/O?
Isolated I/O is a communication method used in computer architectures where the processor accesses peripheral devices through a separate address space distinct from the memory address space, ensuring that I/O devices and memory do not share the same address lines. This approach typically uses dedicated CPU instructions like IN and OUT to transfer data between the processor and I/O devices, enhancing control and reducing address conflicts. Isolated I/O improves system organization by segregating device communication, which can simplify hardware design and improve security in embedded systems.
Key Differences: Memory Mapped vs Isolated I/O
Memory Mapped I/O integrates device registers directly into the system's address space, enabling CPUs to access peripherals using standard load and store instructions, while Isolated I/O employs a separate address space and specialized instructions for device communication. Memory Mapped I/O allows for unified addressable memory and I/O devices, improving programming simplicity and efficiency, whereas Isolated I/O offers dedicated control for I/O operations, reducing address space conflicts. Key differences include addressing methods, instruction sets, and hardware complexity, impacting system design and performance in embedded and computing systems.
Addressing Mechanisms in Each Technique
Memory mapped I/O uses the system's main address space to access I/O devices, allowing the CPU to communicate with peripherals via standard memory instructions. In contrast, Isolated I/O employs a separate address space with specialized instructions like IN and OUT, isolating device addresses from regular memory addresses. Your choice between these techniques influences how efficiently the CPU interacts with hardware components and manages address decoding complexity.
Hardware Support Requirements
Memory mapped I/O requires hardware that supports address decoding to differentiate between memory and device registers within the same address space, enabling CPUs to use standard instructions for both. Isolated I/O demands specialized hardware with a separate I/O address space and dedicated instructions to access device registers independently from memory addresses. Your system's architecture and CPU instruction set must align with the hardware support to efficiently implement either memory mapped or isolated I/O.
Performance Implications
Memory mapped I/O offers higher performance due to direct CPU access to device registers as regular memory, reducing instruction overhead and enabling faster data transfer rates. Isolated I/O requires specialized instructions, causing additional CPU cycles and potential latency during device communication. Optimizing your system with memory mapped I/O can significantly boost throughput in high-speed applications.
Advantages and Disadvantages
Memory mapped I/O offers faster data transfer since devices share the same address space as memory, enabling direct CPU access and simpler instruction sets, but it reduces available memory for applications and may complicate address decoding. Isolated I/O uses separate address spaces for devices, preventing memory usage conflicts and simplifying hardware design, yet it requires special I/O instructions and slower access speeds compared to memory mapped I/O. Choosing between them depends on system priorities such as speed optimization, hardware complexity, and available memory resources.
Real-World Applications and Use Cases
Memory mapped I/O enables seamless integration of peripheral devices into the system's address space, making it ideal for embedded systems and microcontrollers where fast, direct hardware access is crucial, such as in graphics cards and real-time data acquisition systems. Isolated I/O, by contrast, offers dedicated address spaces for I/O devices, enhancing security and reducing address space conflicts, which is beneficial in complex computer architectures like x86 processors used in personal computers and industrial control systems. Both approaches serve critical roles, with memory mapped I/O favored for performance-intensive applications and isolated I/O preferred in systems requiring strict separation and modular device management.
Conclusion: Choosing the Right I/O Approach
Choosing the right I/O approach depends on system architecture, performance requirements, and complexity. Memory-mapped I/O offers faster data access by integrating device registers into the normal memory address space, ideal for high-speed applications. Isolated I/O increases security and simplifies address decoding by separating device address space, making it suitable for systems requiring strict control and reduced interference.

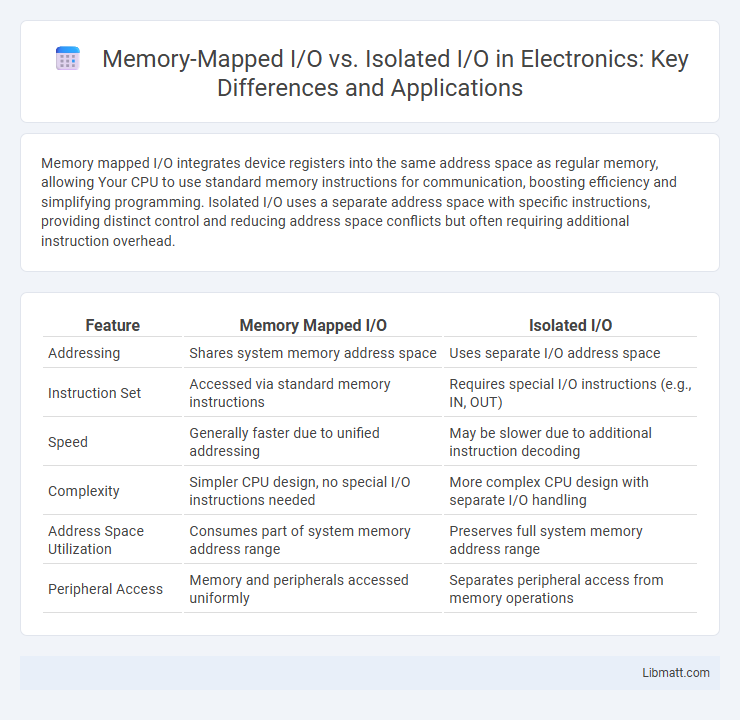

Memory mapped I/O vs Isolated I/O Infographic
