libmatt.com The block coefficient measures how fully a vessel's hull fills the rectangular block enveloping it, indicating overall hull fullness, while the prismatic coefficient compares the volume of the underwater hull to a prism of the same length and maximum cross-sectional area, reflecting hull shape distribution along its length. Understanding these coefficients helps optimize your ship's design for stability, resistance, and performance.
Table of Comparison
| Aspect | Block Coefficient (Cb) | Prismatic Coefficient (Cp) |
|---|---|---|
| Definition | Ratio of the underwater volume of the hull to the volume of a rectangular block enclosing the ship's length, breadth, and draft | Ratio of the underwater volume to the volume of a prism with the same length and maximum cross-sectional area |
| Formula | Cb = V / (L x B x T) | Cp = V / (L x Am) |
| Parameters | V: underwater volume, L: length, B: breadth, T: draft | V: underwater volume, L: length, Am: maximum submerged cross-sectional area |
| Purpose | Measures overall fullness of the hull shape | Indicates how the underwater hull shape distributes volume longitudinally |
| Typical Values | 0.5 - 0.85 (Full cargo ships higher) | 0.6 - 0.85 (Reflects hull form slenderness) |
| Impact on Performance | Higher Cb = more resistance, lower speed, higher carrying capacity | Higher Cp = fuller midship section, affects drag and flow separation |
| Application | Used for preliminary ship design and stability assessment | Used for hull form optimization and resistance evaluation |
Introduction to Block and Prismatic Coefficients
Block coefficient (Cb) measures the fullness of a ship's hull by comparing its volume to a rectangular block encompassing the hull's length, breadth, and draft, indicating overall hull fullness and displacement efficiency. Prismatic coefficient (Cp) evaluates the distribution of hull volume along the length by comparing actual volume to that of a prism with the same midship area and length, reflecting the ship's longitudinal hull shape and resistance characteristics. Your understanding of these coefficients aids in optimizing hull design for improved hydrodynamic performance and fuel efficiency.
Definitions: Block Coefficient Explained
Block coefficient (Cb) measures a ship's overall hull fullness by comparing its submerged volume to the volume of a rectangular block with the same length, beam, and draft, indicating how closely the hull shape approaches a full rectangular prism. Prismatic coefficient (Cp) compares the underwater volume of the hull to that of a prism with the same length and maximum cross-sectional area, focusing on hull shape distribution along the vessel's length. Understanding these coefficients helps optimize Your ship's hydrodynamic performance and fuel efficiency by balancing hull fullness and resistance.
Understanding Prismatic Coefficient
Prismatic coefficient measures the fullness of a ship's hull form by comparing the volume of displacement to the volume of a prism with the same length and maximum cross-sectional area. It is crucial for assessing hull shape efficiency, influencing resistance and propulsion performance. Unlike block coefficient, which evaluates overall fullness, prismatic coefficient specifically reflects the distribution of volume along the hull's length, impacting speed and seakeeping characteristics.
Mathematical Formulas for Each Coefficient
The block coefficient (Cb) is calculated by dividing the volume of displacement (V) by the product of the length between perpendiculars (L), beam (B), and draft (T), expressed as Cb = V / (L x B x T). The prismatic coefficient (Cp) is the ratio of the volume of displacement (V) to the product of the length between perpendiculars (L) and the cross-sectional area at midship (Am), formulated as Cp = V / (L x Am). Your understanding of these formulas helps optimize hull design by balancing fullness and efficiency.
Key Differences: Block vs. Prismatic Coefficient
Block coefficient measures the fullness of a ship's hull by comparing its underwater volume to a rectangular block of the same length, breadth, and draft, reflecting overall hull fullness. Prismatic coefficient relates the underwater volume to a prism formed by the waterline length and the maximum underwater cross-sectional area, highlighting the distribution of volume along the length. The key difference lies in block coefficient assessing total hull fullness, while prismatic coefficient evaluates volume distribution, crucial for predicting resistance and optimizing hull design.
Importance in Ship Design and Naval Architecture
Block coefficient and prismatic coefficient are critical parameters in ship design that influence hull form optimization, affecting resistance, stability, and propulsion efficiency. The block coefficient quantifies hull fullness and impacts displacement and cargo capacity, while the prismatic coefficient relates to volume distribution along the ship's length, affecting wave-making resistance and speed potential. Understanding and balancing these coefficients allows you to optimize performance characteristics tailored to vessel type and operational requirements in naval architecture.
Practical Applications in Hull Form Selection
Block coefficient (Cb) and prismatic coefficient (Cp) are crucial metrics in hull form selection, with Cb indicating the fullness of the hull and Cp reflecting the distribution of volume along the length. High Cb values suit displacement vessels like tankers for maximizing cargo capacity, while higher Cp values optimize hulls for consistent speed and efficiency in vessels such as container ships. Your choice between these coefficients directly impacts hydrodynamic performance, fuel efficiency, and operational costs.
Impact on Vessel Performance and Efficiency
The block coefficient (Cb) and prismatic coefficient (Cp) significantly influence vessel performance and efficiency by affecting hydrodynamic resistance and hull form. A higher block coefficient indicates a fuller hull shape, typically enhancing cargo capacity but increasing drag, which reduces speed and fuel efficiency. Conversely, a higher prismatic coefficient optimizes the distribution of volume along the hull, improving wave-making resistance and benefiting vessels designed for higher speeds or specific operational profiles.
Comparative Analysis with Real-World Examples
Block coefficient (Cb) and prismatic coefficient (Cp) are critical metrics in naval architecture used to assess a vessel's hull form efficiency and performance. Cb measures the fullness of the ship's hull by comparing the submerged volume to the volume of a rectangular block defined by length, beam, and draft, while Cp focuses on the distribution of volume along the length of the ship's hull. For example, a tanker with a high Cb and low Cp indicates a full hull shape optimized for maximum cargo capacity, whereas a fast naval ship often has a lower Cb but higher Cp to reduce resistance and enhance speed; understanding these differences helps you optimize hull design for specific operational goals.
Conclusion: Choosing the Right Coefficient for Design
Selecting the appropriate coefficient between block coefficient (Cb) and prismatic coefficient (Cp) depends heavily on the vessel's hull form and intended operational profile. Block coefficient is crucial for understanding overall fullness and displacement characteristics, while prismatic coefficient helps optimize hull efficiency related to wave resistance and distribution of volume along the waterline. Designers prioritize Cb for cargo and tanker ships focusing on maximizing volume, whereas Cp is favored in high-speed vessels where minimizing resistance and improving hydrodynamic performance is essential.

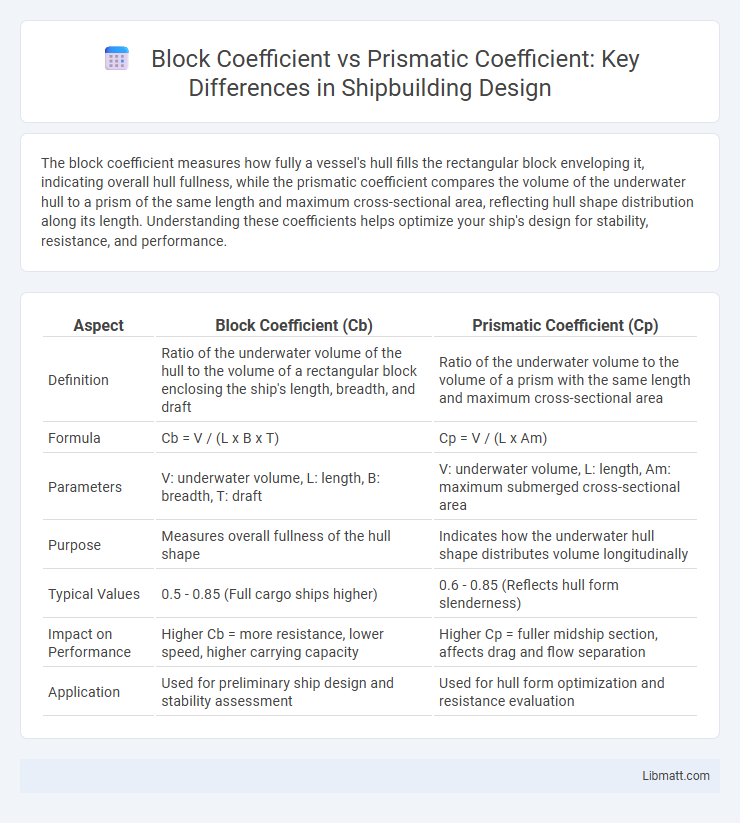

Block coefficient vs prismatic coefficient Infographic
