libmatt.com The FWD collision bulkhead is a watertight barrier located at the front of the ship, designed to prevent water ingress in case of a forward hull breach, while the aft peak bulkhead is positioned at the rear and serves to contain flooding or structural damage in the aft section. Understanding the differences between these bulkheads is crucial for maintaining your vessel's safety and structural integrity during emergencies.
Table of Comparison
| Feature | FWD Collision Bulkhead | Aft Peak Bulkhead |
|---|---|---|
| Location | Forward section of the ship | Aft (rear) section of the ship |
| Primary Function | Prevents flooding after frontal collision | Prevents flooding in the aft compartments |
| Structural Role | Reinforces the bow against impact damage | Supports the stern and propulsion machinery compartments |
| Regulatory Requirement | Mandatory under SOLAS for safety | Often required, depending on ship design |
| Typical Thickness | Higher, for impact resistance | Moderate, based on structural needs |
| Associated Risks | Collision damage at the bow | Damage from grounding or stern impact |
| Watertight Integrity | Critical for preventing forward flooding | Essential for aft compartment safety |
Introduction to Ship Bulkheads
Ship bulkheads are crucial structural partitions that enhance vessel integrity and safety by dividing the hull into watertight compartments. The forward collision bulkhead, positioned near the bow, is designed to withstand impact forces during front-end collisions, preventing water ingress into vital compartments. The aft peak bulkhead, located at the stern, primarily serves to contain the aft peak tank and improve the ship's structural strength and stability at the rear.
Purpose of FWD Collision Bulkhead
The FWD collision bulkhead is a reinforced watertight barrier located at the forward section of a ship to prevent water ingress in case of a bow collision, protecting the vessel's structural integrity. It isolates the forward compartments, minimizing flooding risk and enhancing the overall safety of Your ship. Unlike the aft peak bulkhead, which contains the stern-related machinery and storage, the FWD collision bulkhead primarily serves as a critical line of defense against forward impacts.
Function of Aft Peak Bulkhead
The aft peak bulkhead serves as a crucial structural barrier that prevents water ingress into the aft compartments in case of hull damage, enhancing the vessel's watertight integrity and overall safety. Unlike the forward collision bulkhead, which primarily protects against frontal impacts, the aft peak bulkhead contains flooding at the stern, safeguarding the ship's propulsion and steering systems. Your ship's stability and compartmentalization rely significantly on the effective design and maintenance of the aft peak bulkhead.
Location and Structural Differences
The forward (FWD) collision bulkhead is located at the front section of a ship, serving as a watertight barrier to prevent flooding from forward compartment damages, while the aft peak bulkhead is positioned at the rear, separating the aft peak tank from the rest of the vessel. Structurally, the FWD collision bulkhead is typically reinforced to withstand high impact loads during collisions, featuring thicker plating and stronger framing compared to the aft peak bulkhead, which primarily resists water pressure and maintains the integrity of the stern area. Understanding the location and structural distinctions between these bulkheads is essential for ensuring your vessel's safety compliance and effective damage control.
Regulatory Requirements for Bulkheads
FWD collision bulkheads and aft peak bulkheads must comply with International Maritime Organization (IMO) regulations outlined in SOLAS Chapter II-1, focusing on watertight integrity and subdivision of the ship to ensure survivability after hull damage. The forward collision bulkhead is mandated to withstand flooding from forward-end collisions, requiring stringent structural strength and height criteria per IMO standards. Aft peak bulkheads have specific regulatory guidelines emphasizing prevention of flooding in the stern, critical for maintaining buoyancy and stability, with compliance verified through approved ship design and classification society certificates.
Safety Roles: Collision vs Aft Peak Bulkhead
The FWD collision bulkhead serves as a crucial safety barrier designed to prevent flooding in the forward compartments after a collision, effectively protecting the vessel's buoyancy and stability. The aft peak bulkhead, while also watertight, primarily guards the aftmost section of the ship, ensuring that flooding in the stern does not compromise engine rooms or steering gear spaces. Your ship's overall safety depends on the integrity of both bulkheads to maintain compartmentalization and minimize water ingress during emergencies.
Impact on Ship Stability and Flooding
The forward (FWD) collision bulkhead significantly enhances ship stability by providing a watertight barrier that limits flooding to the forward sections in the event of a hull breach, thereby maintaining buoyancy and preventing catastrophic sinking. In contrast, the aft peak bulkhead primarily secures the stern compartments, minimizing water ingress from aft damage but contributing less to overall ship-wide flooding control. Your vessel's safety and operational stability depend on the proper design and maintenance of both bulkheads to effectively compartmentalize flooding and preserve structural integrity.
Design Considerations for Each Bulkhead
FWD collision bulkheads require reinforced structures and watertight integrity to prevent flooding after bow impact, emphasizing stiffness and impact resistance in design. Aft peak bulkheads focus on containing engine room or machinery space, necessitating heat resistance and vibration damping for safety and operational stability. Your ship's overall design must balance these factors to ensure structural strength and compartmentalization according to maritime safety regulations.
Maintenance and Inspection Protocols
FWD collision bulkhead requires rigorous maintenance and inspection protocols to ensure structural integrity against frontal impacts, including regular ultrasonic testing and corrosion checks. Aft peak bulkhead inspections focus on preventing water ingress through comprehensive visual assessments and moisture level monitoring using sensors. Your maintenance schedule should prioritize these protocols to avoid costly repairs and ensure vessel safety.
Conclusion: Choosing the Right Bulkhead for Vessel Safety
Selecting the appropriate bulkhead between a forward collision bulkhead and an aft peak bulkhead significantly enhances vessel safety by effectively compartmentalizing spaces to prevent flooding and maintain structural integrity during incidents. The forward collision bulkhead is critical for protecting the bow against impact damage, while the aft peak bulkhead safeguards the stern, especially in ships with machinery or ballast tanks located in the aft section. Optimal vessel design incorporates both bulkheads based on the ship's purpose, ensuring maximum damage control and compliance with maritime safety regulations such as SOLAS.

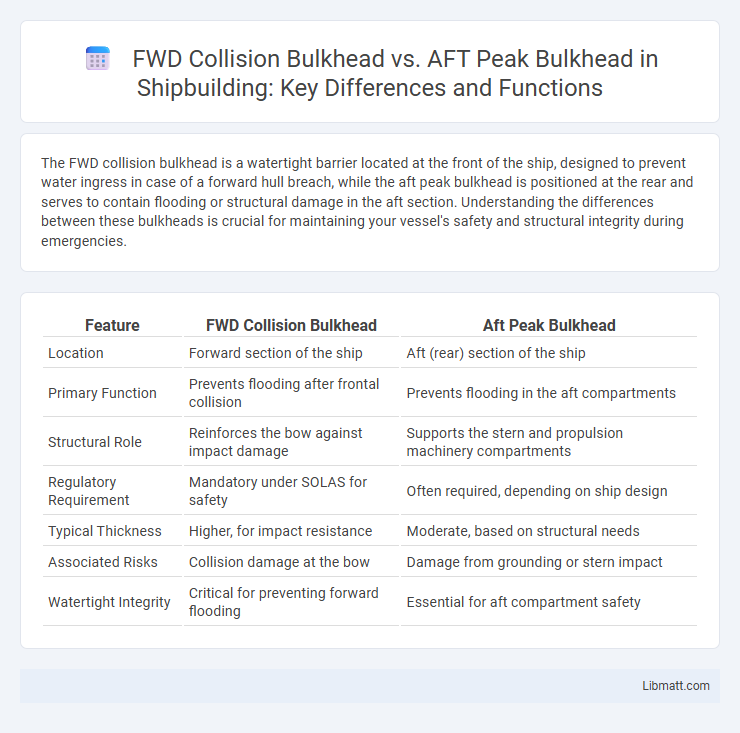

FWD collision bulkhead vs aft peak bulkhead Infographic
