libmatt.com Star Delta Starters reduce the initial current and voltage surge during motor startup by first connecting the motor windings in a star configuration, then switching to delta for normal operation, which helps protect your electrical system from high inrush currents. Direct On Line Starters apply full voltage immediately to the motor, offering a simpler design but causing higher starting current and potential mechanical stress on the motor.
Table of Comparison
| Feature | Star Delta Starter | Direct On Line (DOL) Starter |
|---|---|---|
| Starting Method | Reduces voltage by connecting motor windings in star configuration initially | Applies full line voltage directly to the motor terminals |
| Purpose | Limits inrush current and torque during motor start | Provides full starting torque immediately |
| Starting Current | Approximately 33% of full load current | Full load current, can be 6 to 8 times motor full load current |
| Starting Torque | About 33% of full torque | Full torque at start |
| Complexity | More complex with additional contactors and time relay | Simpler design with one contactor and overload relay |
| Application | Used for large motors requiring reduced starting current | Best for small motors with high starting torque requirements |
| Cost | Higher initial cost due to additional components | Lower cost and easy maintenance |
| Motor Life Impact | Reduces mechanical stress, extends motor life | Higher mechanical stress due to full torque start |
Introduction to Motor Starters
Motor starters are electrical devices designed to safely start and stop electric motors by controlling the power supply. Star Delta starters reduce the starting current by initially connecting the motor windings in a star configuration before switching to delta, providing a smooth start for large motors. Direct On Line (DOL) starters apply full voltage directly to the motor terminals, making them suitable for small motors that can handle high starting currents without damage.
What is a Star Delta Starter?
A Star Delta Starter is an electrical motor starting method that initially connects the motor windings in a star (Y) configuration to reduce voltage and current during startup, minimizing mechanical stress and electrical demand. After a preset time, the starter switches the motor windings to a delta (D) configuration for normal operation at full voltage. This technique is commonly used for three-phase induction motors to achieve smooth starting and energy efficiency.
What is a Direct On Line (DOL) Starter?
A Direct On Line (DOL) Starter is an electrical device used to start electric motors by applying full voltage directly to the motor terminals, ensuring immediate and straightforward motor startup. It provides high starting torque but results in a high inrush current, making it suitable for small motors or applications where sudden torque is acceptable. Your choice between a DOL starter and a Star Delta starter depends on motor size, load requirements, and the need to reduce starting current.
Working Principle of Star Delta Starter
The working principle of a Star Delta Starter involves initially connecting the motor winding in a star configuration to reduce the starting current and voltage, which mitigates electrical stress and mechanical shock. After a preset time, the motor switches to a delta connection to provide full line voltage for normal operation, enhancing efficiency and torque. Your electric motor benefits from smoother start-up and reduced energy consumption during the initial phase with this type of starter compared to a Direct On Line (DOL) Starter.
Working Principle of DOL Starter
The working principle of a Direct On Line (DOL) starter involves applying full line voltage directly to the motor terminals, causing the motor to start at its rated speed and torque immediately. This method results in a high starting current, typically 6 to 8 times the motor's rated current, which can cause mechanical stress and electrical surges. You should consider DOL starters for small motors where the high inrush current does not affect the power supply system.
Key Differences Between Star Delta and DOL Starters
Star Delta and Direct On Line (DOL) starters differ mainly in their starting method, with Star Delta reducing the initial voltage to minimize starting current and mechanical stress, while DOL applies full voltage immediately. The Star Delta starter is preferred for large motors above 10 kW due to its smoother starting process, whereas DOL starters suit smaller motors with less starting current. Your choice impacts motor longevity and power efficiency, especially in industrial applications requiring controlled acceleration.
Advantages of Star Delta Starter
Star Delta Starter reduces the starting current and torque, minimizing electrical and mechanical stress on motors, which significantly extends motor lifespan and lowers maintenance costs. This starting method improves power factor during motor startups, enhancing energy efficiency and reducing voltage dips in industrial power systems. Your machinery benefits from smoother acceleration and reduced impact on the electrical network compared to Direct On Line Starters.
Advantages of DOL Starter
Direct On Line (DOL) starters offer the advantages of simple construction and easy installation, making them cost-effective for small to medium-sized motors. They provide full voltage at startup, ensuring rapid motor acceleration and strong torque output. DOL starters are reliable with minimal maintenance requirements, ideal for applications where motor starting current and mechanical stress are manageable.
Applications and Usage Scenarios
Star Delta Starters are ideal for applications requiring reduced starting current, such as large induction motors in pumps, compressors, and conveyors, where minimizing electrical and mechanical stress during startup is crucial. Direct On Line (DOL) Starters are suited for smaller motors with low starting torque needs and applications like fans, blowers, and small machine tools where input voltage can be applied directly without current surge concerns. Your choice depends on motor size, load nature, and the importance of controlling initial inrush current.
Choosing the Right Starter for Your Motor
Selecting the appropriate motor starter, such as a Star Delta Starter or a Direct On Line (DOL) Starter, depends on the motor's power rating and application needs. Star Delta Starters are ideal for high-power motors requiring reduced starting current and torque, minimizing electrical stress during startup. DOL Starters suit low-power motors with straightforward operational demands, providing full voltage immediately for simple and cost-effective motor control.

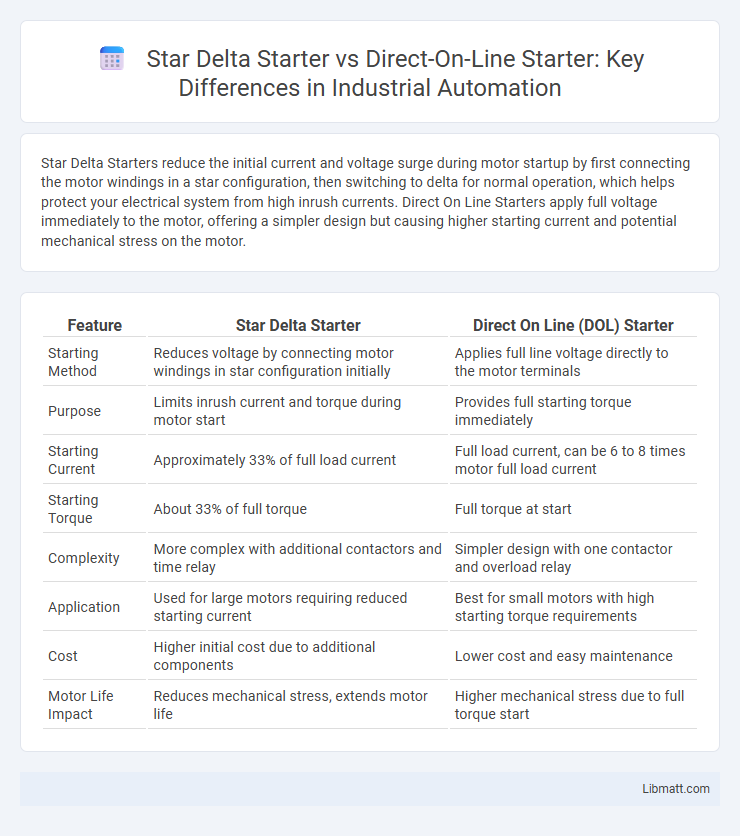

Star Delta Starter vs Direct On Line Starter Infographic
