libmatt.com Bit-banging offers flexible, software-controlled communication with SPI devices at the cost of higher CPU usage and lower data rates. Hardware SPI provides faster, more efficient data transfer by offloading the communication to dedicated hardware, freeing your processor for other tasks.
Table of Comparison
| Feature | Bit-Banging | Hardware SPI |
|---|---|---|
| Implementation | Software-driven GPIO control | Dedicated SPI hardware module |
| Speed | Low to moderate (CPU limited) | High speed (up to MHz range) |
| CPU Usage | High (CPU busy toggling pins) | Low (hardware handles protocol) |
| Precision | Dependent on software timing | Consistent clock and timing |
| Complexity | Simple hardware, complex software | Complex hardware, simple software |
| Pin Requirements | Flexible, uses any GPIO pins | Fixed SPI pins (MOSI, MISO, SCLK, SS) |
| Power Consumption | Higher due to CPU load | Lower with hardware efficiency |
| Use Case | Low speed, cost-sensitive, low pin count projects | High speed, real-time, and industrial applications |
Introduction to SPI Communication
SPI communication is a high-speed, synchronous serial interface used to connect microcontrollers with peripherals such as sensors, memory devices, and displays. Bit-banging emulates SPI protocol through software by manually toggling GPIO pins, allowing flexibility but consuming more CPU cycles and resulting in slower data throughput. In contrast, hardware SPI utilizes dedicated SPI controller modules within microcontrollers, offering efficient data transfer with precise timing and reduced processor overhead.
What is Bit-Banging?
Bit-banging is a technique where software directly controls the GPIO pins to emulate communication protocols like SPI, instead of relying on dedicated hardware peripherals. It allows you to implement SPI on microcontrollers without built-in hardware support but often results in higher CPU usage and slower data transfer rates. Hardware SPI uses specialized modules designed to handle data transmission efficiently, freeing up your processor for other tasks.
Understanding Hardware SPI
Hardware SPI is a communication protocol that uses dedicated hardware modules within microcontrollers to manage data transmission between devices efficiently. It offers higher speed, lower CPU overhead, and consistent timing compared to bit-banging, which relies on software to manually toggle GPIO pins. Understanding Hardware SPI enables developers to optimize performance and reliability in applications requiring fast and synchronized data exchange.
Key Differences: Bit-Banging vs Hardware SPI
Bit-banging manually controls SPI signals using software, offering flexibility but consuming more CPU resources and resulting in slower data transfer speeds compared to Hardware SPI. Hardware SPI utilizes dedicated microcontroller peripherals for precise timing and higher throughput, ensuring efficient and reliable communication with minimal CPU intervention. Your choice depends on the application's speed requirements and available processing power.
Performance Comparison: Speed and Efficiency
Hardware SPI consistently outperforms bit-banging by offering significantly higher data transfer speeds, often reaching several megabits per second, while bit-banging is limited by the processor's instruction cycle speed and software overhead. The efficiency of hardware SPI arises from dedicated SPI controllers that manage clock timing and data shifting autonomously, reducing CPU load and allowing concurrent processing of other tasks. Bit-banging consumes more CPU cycles due to manual toggling of GPIO pins, resulting in slower communication and increased power consumption compared to hardware-accelerated SPI interfaces.
Resource Utilization and System Overhead
Bit-banging requires more CPU cycles and occupies more processing time because it relies on software to manually toggle GPIO pins, leading to higher system overhead and increased resource utilization. Hardware SPI offloads the communication process to dedicated peripherals, significantly reducing CPU load and freeing up resources for other tasks. Your system performance benefits from using hardware SPI when minimizing resource consumption and optimizing efficiency is critical.
Flexibility and Compatibility Considerations
Bit-banging offers greater flexibility by allowing you to implement SPI communication on virtually any general-purpose I/O pin, making it compatible with a wide range of microcontrollers without dedicated SPI hardware. Hardware SPI, while less flexible, delivers faster and more reliable data transfer due to its specialized circuitry, but requires specific pins and may limit compatibility across different devices. Choosing between bit-banging and hardware SPI depends on your need for adaptable pin usage versus optimized speed and efficiency.
Typical Use Cases for Bit-Banging
Bit-banging is typically used in low-cost or resource-constrained embedded systems where dedicated hardware SPI modules are unavailable or occupied. It provides flexibility for custom timing and multiple protocol support, making it ideal for prototyping and interfaces with non-standard or rare SPI devices. Bit-banging is also favored in educational settings and simple applications requiring limited data speeds and minimal hardware complexity.
Best Applications for Hardware SPI
Hardware SPI excels in applications requiring high-speed communication and efficient processor usage, such as data transfer between microcontrollers and sensors or memory devices. Its dedicated hardware controllers enable reliable and consistent clock timing, making it ideal for real-time embedded systems and industrial automation. When your project demands fast data throughput and minimal CPU overhead, Hardware SPI is the best choice.
Choosing the Right SPI Method for Your Project
Selecting between bit-banging and hardware SPI depends on project requirements such as speed, CPU usage, and hardware complexity. Hardware SPI offers faster data transfer rates and lower CPU load by using dedicated SPI modules, ideal for high-speed communication and precise timing. Bit-banging provides flexibility on microcontrollers lacking SPI hardware, suitable for simple applications where timing and speed are less critical.

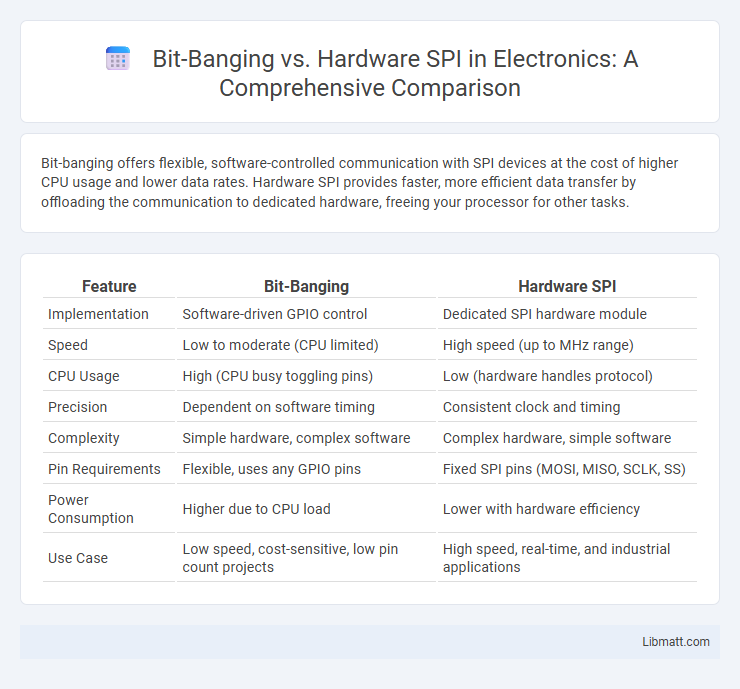

Bit-banging vs Hardware SPI Infographic
