CAN FD vs. Classical CAN in Electronics: Key Differences and Advantages

CAN FD (Flexible Data-rate) enhances Classical CAN by offering faster data transmission speeds and larger payload capacity up to 64 bytes per frame compared to Classical CAN's 8-byte limit. Your choice between CAN FD and Classical CAN depends on the need for higher throughput and more efficient communication in complex automotive or industrial applications.

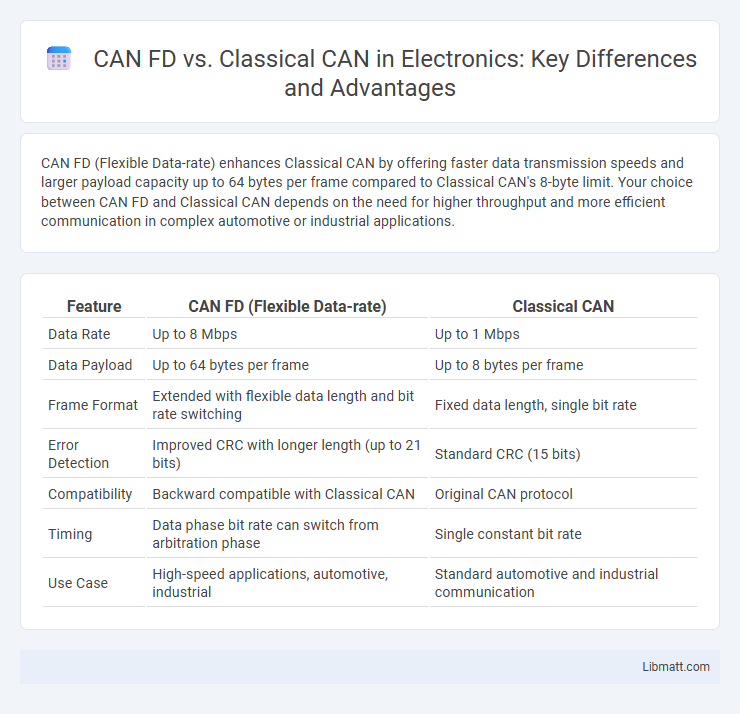

Table of Comparison

Introduction to CAN FD and Classical CAN

Classical CAN (Controller Area Network) is a robust vehicle bus standard designed for efficient communication in automotive and industrial systems, supporting data rates up to 1 Mbps with fixed 8-byte data frames. CAN FD (Flexible Data-rate) extends Classical CAN by enabling faster data transmission up to 8 Mbps and larger payloads of up to 64 bytes, enhancing communication efficiency and bandwidth utilization. Your system benefits from CAN FD's improved speed and flexibility, making it ideal for modern applications requiring higher data throughput and more complex data exchange.

Key Differences Between CAN FD and Classical CAN

CAN FD (Controller Area Network Flexible Data-rate) enhances Classical CAN by supporting higher data rates up to 8 Mbps and increasing payload size from 8 to 64 bytes per frame, enabling faster and more efficient communication. The improved error detection mechanisms and dynamic data length enable better real-time performance and reliability in automotive and industrial applications. Your network will benefit from CAN FD's flexibility in data transmission and enhanced bandwidth utilization compared to Classical CAN.

Data Transmission Speed Comparison

CAN FD (Flexible Data-rate) significantly enhances data transmission speed by supporting bit rates up to 8 Mbps, compared to Classical CAN's maximum of 1 Mbps. This increase in speed is achieved by allowing faster data phase bit rates while maintaining standard arbitration phase timing. The ability to transmit larger data payloads (up to 64 bytes vs. 8 bytes in Classical CAN) further optimizes overall network efficiency and reduces transmission delays.

Frame Structure: CAN FD vs Classical CAN

CAN FD (Flexible Data-rate) improves upon Classical CAN by allowing larger data payloads of up to 64 bytes, compared to the fixed 8 bytes in Classical CAN frames. The CAN FD frame structure includes an extended data length code (DLC) field and a bit rate switch (BRS) flag, enabling faster data transmission during the data phase. Your system benefits from enhanced efficiency and throughput by leveraging this optimized frame design in CAN FD.

Payload Capacity and Efficiency

CAN FD (Flexible Data-rate) significantly enhances payload capacity by allowing up to 64 bytes per frame, compared to Classical CAN's fixed 8 bytes, enabling more data to be transmitted in fewer messages. This increased payload reduces bus load and improves overall communication efficiency in automotive and industrial networks. The flexible data rate of CAN FD also accelerates data transfer during the payload phase, further optimizing network throughput and latency.

Error Handling and Reliability

CAN FD enhances error handling and reliability by supporting larger data payloads and faster bit rates while maintaining robust error detection mechanisms like CRC, bit stuffing, and acknowledgment slots found in Classical CAN. The improved protocol helps reduce error rates and supports dynamic error confinement, ensuring your network remains stable under higher data loads and minimizes communication failures. This advanced error handling capability makes CAN FD more reliable for modern automotive and industrial applications requiring efficient, high-speed data transmission.

Use Cases and Industry Applications

CAN FD offers higher data rates up to 8 Mbps and larger payloads up to 64 bytes, making it ideal for complex applications such as advanced driver-assistance systems (ADAS), electric vehicle powertrains, and industrial automation where rapid, large data transfers are critical. Classical CAN remains prevalent in simpler, cost-sensitive applications like basic engine control units, body electronics, and legacy automotive systems where lower bandwidth and payload constraints are sufficient. Your choice between CAN FD and Classical CAN depends on the need for speed, data volume, and system complexity across automotive, industrial, and aerospace sectors.

Migration Challenges: Upgrading from Classical CAN to CAN FD

Upgrading from Classical CAN to CAN FD presents migration challenges such as hardware compatibility, software updates, and ensuring real-time performance under higher data rates up to 8 Mbps. Your existing network components may need replacement or firmware enhancements to support CAN FD's flexible data payload up to 64 bytes compared to Classical CAN's 8 bytes. Careful validation and testing of the mixed network environment are essential to maintain system reliability during the transition phase.

Cost Implications of Implementing CAN FD

CAN FD modules generally incur higher initial costs compared to Classical CAN due to more advanced hardware requirements and licensing fees. However, CAN FD's enhanced data throughput and efficiency can reduce long-term expenses by minimizing network complexity and improving system performance. Your project may achieve overall cost savings by leveraging CAN FD's ability to handle larger payloads and faster communication, despite the upfront investment.

Future Trends in CAN Bus Technology

CAN FD offers significantly higher data rates up to 8 Mbps compared to Classical CAN's 1 Mbps, enabling more efficient communication for modern automotive and industrial applications. Future trends in CAN bus technology emphasize increased bandwidth, enhanced error handling, and improved diagnostics to support the rise of autonomous vehicles and Industry 4.0 systems. Your choice of CAN protocol will impact system scalability and real-time data throughput as networks evolve toward more complex, data-intensive environments.
