libmatt.com Class D amplifiers use pulse-width modulation to achieve high efficiency and generate less heat, making them ideal for portable or battery-powered applications. Class AB amplifiers balance efficiency and audio fidelity by operating in a linear mode with reduced crossover distortion, providing superior sound quality for home audio systems and professional equipment.
Table of Comparison
| Feature | Class D Amplifier | Class AB Amplifier |
|---|---|---|
| Efficiency | 85-95% | 50-70% |
| Heat Generation | Low | High |
| Sound Quality | Good, may have switching noise | Excellent, low distortion |
| Size | Compact, lightweight | Larger, heavier |
| Complexity | Higher due to switching design | Simpler analog design |
| Typical Applications | Portable devices, subwoofers, car audio | Hi-Fi audio, studio monitors, home amplifiers |
Introduction to Audio Amplifier Classes
Class D amplifiers use pulse-width modulation to achieve high efficiency and minimal heat dissipation, making them ideal for portable and battery-powered audio devices. Class AB amplifiers combine the linearity of Class A with the efficiency of Class B, delivering balanced sound quality and moderate power consumption, commonly found in home audio systems. Understanding the differences helps you choose the right amplifier class based on your audio performance needs and power constraints.
What is a Class AB Amplifier?
A Class AB amplifier combines the efficiency of Class B with the low distortion of Class A, using complementary transistors that conduct more than half of the input signal but less than the whole cycle. It reduces crossover distortion by allowing a small bias current to flow even when no input signal is present, improving sound quality in audio applications. Your audio system benefits from a Class AB amplifier's balanced performance, providing clear sound with moderate efficiency and heat dissipation.
What is a Class D Amplifier?
A Class D amplifier operates using pulse-width modulation (PWM) to convert analog signals into high-frequency digital pulses, resulting in highly efficient power conversion with minimal heat loss. Its switching output transistors alternate fully on or off, driving speakers with rapid pulses that are then smoothed into audio signals by low-pass filters. You benefit from Class D amplifiers in applications requiring compact size, energy efficiency, and reduced thermal management compared to traditional Class AB designs.
Key Differences Between Class AB and Class D Amplifiers
Class D amplifiers use pulse-width modulation to achieve high efficiency, often exceeding 90%, while Class AB amplifiers rely on linear operation with efficiency typically around 50-70%. Class AB amplifiers provide superior audio fidelity with lower distortion, making them ideal for high-quality sound reproduction, whereas Class D amplifiers are favored for compact size and minimal heat generation in portable or battery-powered devices. Your choice depends on prioritizing either audio quality with Class AB or energy efficiency and size with Class D amplifiers.
Efficiency Comparison: Class D vs Class AB
Class D amplifiers achieve efficiency levels of up to 90%, making them significantly more power-efficient than Class AB amplifiers, which typically operate around 50-70% efficiency. This higher efficiency in Class D design reduces heat generation and power consumption, ideal for battery-powered or compact audio devices. Your choice between Class D and Class AB amplifiers will impact energy use, thermal management, and overall system performance.
Sound Quality: Class D vs Class AB
Class AB amplifiers are renowned for their superior sound quality with low distortion and high linearity, making them ideal for audiophiles seeking accurate audio reproduction. Class D amplifiers, while more efficient and compact, historically faced challenges with audio fidelity due to switching noise and distortion, though modern designs have significantly closed this gap. The choice between Class D and Class AB often balances sound purity with energy efficiency and heat dissipation considerations.
Power Output and Thermal Performance
Class D amplifiers deliver higher power output with greater energy efficiency, converting more input power into audio signal rather than heat. Their switching operation minimizes thermal dissipation, resulting in cooler operation and smaller heat sinks compared to Class AB amplifiers. Your choice depends on whether you prioritize maximum power with compact thermal management or a traditional linear amplification style with moderate heat generation.
Applications and Use Cases
Class D amplifiers dominate battery-powered devices and portable audio systems due to their high efficiency and compact size, making them ideal for smartphones, Bluetooth speakers, and subwoofers. Class AB amplifiers excel in home audio and professional sound equipment where audio fidelity is critical, such as in guitar amps, high-end stereo receivers, and studio monitors. The choice between Class D and Class AB amplifiers hinges on balancing efficiency requirements with sound quality preferences in specific application scenarios.
Pros and Cons of Class AB and Class D Amplifiers
Class AB amplifiers offer low distortion and high audio quality, making them ideal for audiophiles, but they are less efficient and generate more heat compared to Class D amplifiers. Class D amplifiers excel in energy efficiency and compact size due to their switching technology, but they may introduce higher electromagnetic interference and slightly lower audio fidelity. Choosing between Class D and Class AB depends on whether Your priority is sound clarity or power efficiency in your audio setup.
Which Amplifier Class is Best for Your Needs?
Class D amplifiers excel in energy efficiency and compact design, making them ideal for portable and battery-powered devices requiring high power output with minimal heat generation. Class AB amplifiers offer superior audio fidelity and lower distortion, preferred for high-quality home audio systems and professional sound equipment where sound clarity is paramount. Choose Class D for efficiency and size constraints, while Class AB suits applications demanding audio precision and rich sound reproduction.

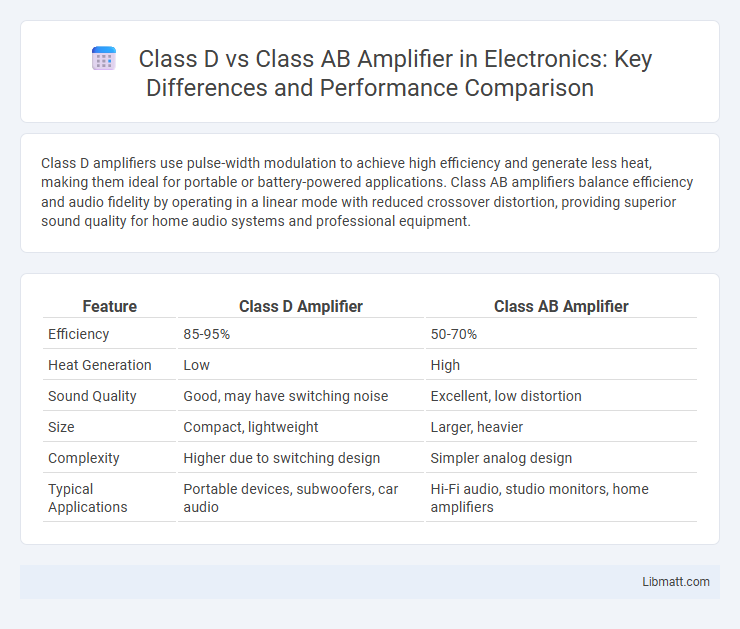

Class D vs Class AB amplifier Infographic
