libmatt.com Synchronous counters update all flip-flops simultaneously with a shared clock signal, resulting in faster and more reliable counting compared to asynchronous counters, where flip-flops trigger sequentially with delayed propagation. Understanding the difference helps you choose the right counter type for applications demanding precise timing and speed.

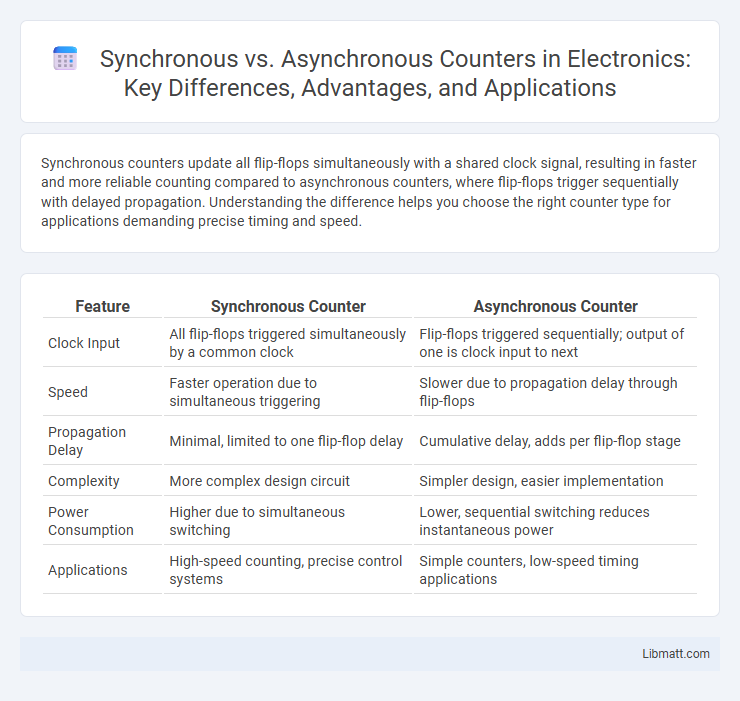

Table of Comparison
| Feature | Synchronous Counter | Asynchronous Counter |
|---|---|---|
| Clock Input | All flip-flops triggered simultaneously by a common clock | Flip-flops triggered sequentially; output of one is clock input to next |
| Speed | Faster operation due to simultaneous triggering | Slower due to propagation delay through flip-flops |
| Propagation Delay | Minimal, limited to one flip-flop delay | Cumulative delay, adds per flip-flop stage |
| Complexity | More complex design circuit | Simpler design, easier implementation |
| Power Consumption | Higher due to simultaneous switching | Lower, sequential switching reduces instantaneous power |
| Applications | High-speed counting, precise control systems | Simple counters, low-speed timing applications |
Introduction to Digital Counters
Digital counters are essential components in electronic circuits used for counting pulses and managing time sequences. Synchronous counters update all flip-flops simultaneously with a common clock signal, ensuring faster operation and reduced propagation delay. Asynchronous counters trigger flip-flops sequentially, which can lead to timing issues but offer simpler design for low-speed applications, making your choice dependent on speed and complexity requirements.
Defining Synchronous Counters
Synchronous counters are digital circuits where all flip-flops receive the clock signal simultaneously, ensuring simultaneous state changes and reducing propagation delay. This design improves counting speed compared to asynchronous counters, which have sequential clock inputs causing ripple effects. Understanding synchronous counters helps you optimize timing and performance in digital logic applications.
Understanding Asynchronous Counters
Asynchronous counters, also known as ripple counters, operate by having each flip-flop triggered by the previous one's output, which causes a delay as the count progresses through the stages. This delay, called propagation delay, results in slower operation compared to synchronous counters, where all flip-flops are triggered simultaneously by a common clock signal. Understanding asynchronous counters is crucial for applications requiring simple, low-speed counting where timing accuracy is less critical.
Key Differences Between Synchronous and Asynchronous Counters
Synchronous counters have all flip-flops triggered simultaneously by a common clock signal, ensuring faster and more reliable operation, while asynchronous counters trigger flip-flops sequentially, causing propagation delays. You benefit from synchronous counters in applications requiring precise timing and speed, as they avoid cumulative delays seen in asynchronous counters. Asynchronous counters are simpler and use fewer gates, making them suitable for low-speed or less timing-critical tasks.
Advantages of Synchronous Counters
Synchronous counters offer significant advantages including faster operation due to simultaneous clocking of all flip-flops, eliminating the propagation delay commonly seen in asynchronous counters. They provide better timing accuracy and reliability, making them ideal for high-speed applications and precise counting tasks. Enhanced design flexibility and easier synchronization with other digital circuits further improve system performance and scalability.
Advantages of Asynchronous Counters
Asynchronous counters boast simpler design and require fewer components, making them cost-effective and easier to implement in basic counting applications. They consume less power due to fewer simultaneous switching activities compared to synchronous counters. Your projects can benefit from their straightforward operation and suitability for lower-frequency counting tasks.
Common Applications of Synchronous Counters
Synchronous counters are widely used in digital systems requiring precise timing and coordination, such as frequency dividers, digital clocks, and event counters. Their ability to minimize propagation delay makes them ideal for applications demanding high-speed and reliable counting operations in microprocessors and communication devices. Your projects involving real-time data processing benefit significantly from synchronous counters' synchronized clocking mechanism, ensuring accurate and efficient performance.
Typical Uses for Asynchronous Counters
Asynchronous counters are typically used in applications where simplicity and low speed are sufficient, such as in digital clocks, frequency dividers, and event counters. Their design allows for easy implementation in basic timing circuits and simple sequential logic tasks. You can rely on asynchronous counters for cost-effective solutions where minimal synchronization requirements are acceptable.
Performance Comparison: Speed, Reliability, and Scalability
Synchronous counters exhibit higher speed due to simultaneous clocking of all flip-flops, reducing propagation delay compared to asynchronous counters where delays accumulate sequentially. Reliability in synchronous counters is enhanced as synchronization minimizes timing errors and glitches, while asynchronous counters are more prone to timing issues under high-frequency operation. Scalability favors synchronous counters since their uniform timing enables consistent performance with increased bit-width, whereas asynchronous counters suffer from compounded delay and diminished speed as the counter size grows.
Choosing the Right Counter for Your Project
Selecting between synchronous and asynchronous counters depends on your project's speed and complexity requirements. Synchronous counters offer faster performance by triggering all flip-flops simultaneously, ideal for high-frequency applications. Asynchronous counters, while simpler and less costly, are suitable for slower operations where propagation delay is less critical.
