libmatt.com Latching relays maintain their position without continuous power, making them ideal for energy-saving applications, while non-latching relays require constant power to hold their state, ensuring immediate reset when power is removed. Your choice depends on whether you need the relay to retain its last position during power loss or revert automatically.
Table of Comparison
| Feature | Latching Relay | Non-Latching Relay |
|---|---|---|
| Operation | Maintains state without continuous power | Returns to default state after power removal |
| Power Consumption | Low (only during switching) | High (continuous coil energizing) |
| Use Case | Memory storage, power-saving applications | General switching, momentary control |
| Complexity | Higher due to mechanical or magnetic latching | Simple coil and spring mechanism |
| Cost | Generally higher | Generally lower |
| Switching Speed | Comparable but may be slower | Generally faster |
Introduction to Relays: Latching vs Non-Latching
Latching relays maintain their contact position even when power is removed, making them ideal for applications requiring memory retention and power saving. Non-latching relays revert to their default state once power is lost, offering simple and immediate switching control suitable for temporary or momentary load activation. Understanding the distinction between latching and non-latching relays ensures you select the appropriate device for your control system's reliability and energy efficiency needs.
How Latching Relays Work
Latching relays operate by maintaining their contact position after the actuating force is removed, using a magnetic latch or mechanical mechanism to hold the relay in either the energized or de-energized state. This design allows the relay to consume power only during switching, making it energy-efficient compared to non-latching relays which require continuous power to maintain their position. The ability of latching relays to retain state without constant power makes them ideal for applications requiring memory retention and low power consumption.
How Non-Latching Relays Operate
Non-latching relays operate by using an electromagnetic coil that, when energized, creates a magnetic field to close or open the contacts, allowing current to flow or stop. Once the coil is de-energized, a spring mechanism returns the contacts to their default state, meaning the relay only maintains its position while power is applied. This constant power requirement distinguishes non-latching relays from latching relays, which retain their state without continuous energy.
Key Differences Between Latching and Non-Latching Relays
Latching relays maintain their position after the control signal is removed, using a magnetic latch or mechanical mechanism, which reduces power consumption and enables memory retention in your control systems. Non-latching relays require continuous power to hold their position, making them suitable for applications needing quick, temporary switching with straightforward control. Understanding these key differences helps optimize relay selection for energy efficiency, system complexity, and operational reliability.
Advantages of Latching Relays
Latching relays consume power only during state change, making them highly energy-efficient compared to non-latching relays that require continuous coil power. Their ability to maintain the contact position without constant power reduces heat generation and extends the relay's lifespan, which is essential in battery-powered and remote applications. Latching relays also offer improved reliability in maintaining switched states during power outages, ensuring stable operation in critical systems.
Benefits of Non-Latching Relays
Non-latching relays provide fast and reliable switching with a simpler control circuit, as they only require power during the switching operation, reducing power consumption. They offer straightforward reset capability, automatically returning to their default state when power is removed, which enhances safety and ease of use in emergency or fail-safe systems. These relays are ideal for applications needing frequent switching and continuous monitoring without the need for mechanical memory retention.
Typical Applications for Latching Relays
Latching relays are widely used in applications requiring power-efficient holding of relay state without continuous power supply, such as memory storage in industrial automation and smart home systems. They are ideal for energy-saving lighting controls, where maintaining circuit status during power interruptions is crucial. These relays also find extensive use in telecommunication equipment and safety systems for reliable position retention and minimal energy consumption.
Common Uses for Non-Latching Relays
Non-latching relays are commonly used in applications requiring momentary power control, such as switching circuits in automotive systems, home appliances, and industrial machinery. These relays deactivate immediately when the control signal is removed, making them ideal for tasks that need temporary activation without maintaining the previous state. Your control systems benefit from their simplicity and reliability in circuits where continuous power is unnecessary.
Choosing the Right Relay for Your Project
Choosing the right relay for your project involves understanding the key differences between latching and non-latching relays. Latching relays maintain their state without continuous power, ideal for energy-efficient applications or memory retention after power loss, while non-latching relays require constant power to remain activated, suitable for applications needing immediate reset or fail-safe operation. Evaluating factors such as power consumption, switching frequency, and application environment helps determine the optimal relay type for reliable performance and extended device lifespan.
Conclusion: Which Relay Suits Your Needs?
Latching relays maintain their position without continuous power, making them ideal for energy-saving applications and systems requiring memory retention during power loss. Non-latching relays require constant power to hold their state, providing simpler control for applications demanding rapid switching and reset capability. Choose a latching relay for low power consumption and retention benefits, whereas non-latching relays are preferred for applications with frequent state changes and less concern about power usage.

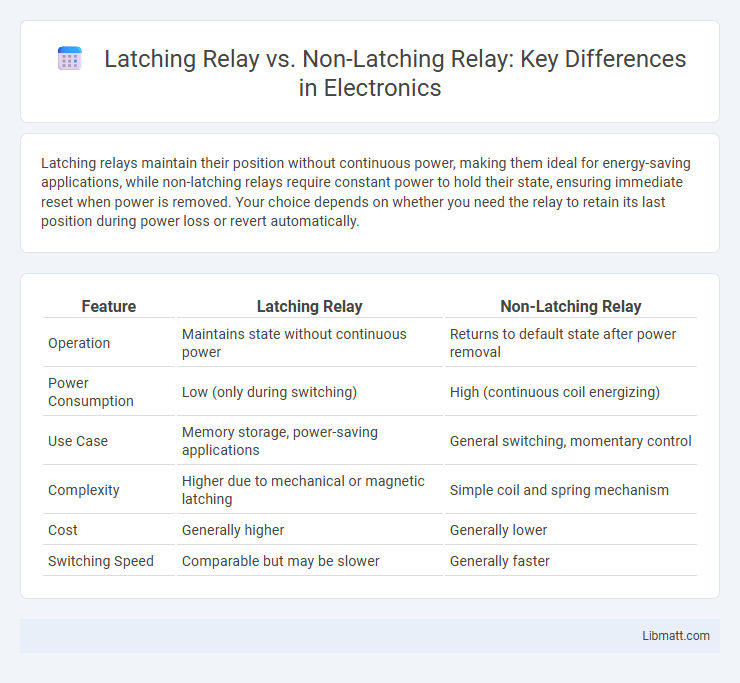

Latching relay vs Non-latching relay Infographic
