libmatt.com Power MOSFETs are designed to handle high voltage and current with low on-resistance, making them ideal for power switching and amplification in applications like motor drivers and power supplies. Logic MOSFETs prioritize low gate threshold voltage for efficient switching at low voltages, ensuring Your circuits can operate seamlessly in digital logic and low-power applications.
Table of Comparison
| Feature | Power MOSFET | Logic MOSFET |
|---|---|---|
| Application | High power switching, power supplies, motor drivers | Low voltage logic level circuits, microcontrollers, digital ICs |
| Gate Threshold Voltage (VGS(th)) | Typically 2-4V | Typically 1-2.5V (optimized for low voltage) |
| RDS(on) | Low RDS(on), optimized for minimal conduction loss | Higher RDS(on) compared to power MOSFET |
| Switching Speed | Moderate to fast, suited for power applications | Fast switching, ideal for digital logic signals |
| Voltage Rating | Typically 20V to 1000V | Lower voltage rating, usually up to 30V |
| Drive Voltage | May require 10-12V for full enhancement | Fully driven at 3.3V or 5V logic levels |
| Cost | Higher due to power handling features | Lower cost, optimized for low power and CMOS integration |
Introduction to Power MOSFETs and Logic MOSFETs
Power MOSFETs are designed for high current and voltage applications, featuring low on-resistance (R_DS(on)) to minimize power loss in switching circuits such as power supplies and motor drives. Logic MOSFETs operate with lower gate drive voltages, typically compatible with 5V or 3.3V logic levels, making them ideal for CMOS digital circuits requiring fast switching and low gate charge. Both types utilize the metal-oxide-semiconductor structure but are optimized differently to balance performance criteria like switching speed, power dissipation, and gate threshold voltage.
Key Differences Between Power and Logic MOSFETs
Power MOSFETs are designed to handle high current and voltage levels, featuring low on-resistance (R_DS(on)) and robust avalanche energy ratings for efficient power switching in applications such as motor drives and power supplies. Logic MOSFETs prioritize low gate charge and fast switching speeds, optimizing performance in digital circuits and low-voltage environments like microprocessors and level shifters. The key differences lie in their threshold voltage, current capacity, switching characteristics, and ruggedness, which define their suitability for power management versus signal processing tasks.
Construction and Internal Structure Comparison
Power MOSFETs feature a vertical structure with a thick epitaxial layer and a large cell pitch to handle high voltage and current, optimizing thermal performance and switching efficiency. Logic MOSFETs have a lateral structure with smaller cells and thinner oxide layers, designed for low voltage applications and faster switching in digital circuits. Your choice depends on the application's voltage, current requirements, and switching speed, as these internal architectures directly influence device performance and efficiency.
Voltage and Current Handling Capabilities
Power MOSFETs are designed to handle high voltages typically ranging from 20V up to 1200V and can manage large continuous currents often exceeding tens of amperes, making them ideal for power conversion and switching applications. Logic MOSFETs, however, operate at lower voltages usually below 20V and support smaller currents suitable for digital circuits and low-power applications. Understanding these voltage and current handling capabilities helps you select the appropriate MOSFET type for your electrical design needs.
Switching Speed and Performance Metrics
Power MOSFETs are designed for high-current, high-voltage applications with optimized conduction resistance and robust thermal performance, but their switching speeds are generally slower compared to Logic MOSFETs, which are tailored for low-voltage, high-speed digital circuits. Logic MOSFETs feature lower gate charge and input capacitance, resulting in faster switching times and improved efficiency in high-frequency operations. When selecting a MOSFET for your application, consider that Power MOSFETs excel in handling larger power loads, while Logic MOSFETs prioritize rapid switching and reduced gate drive requirements.
Gate Drive Requirements and Threshold Voltages
Power MOSFETs typically require higher gate drive voltages, often around 10-15V, to fully turn on and minimize R_DS(on), whereas Logic MOSFETs are optimized for low-voltage gate drive, usually compatible with 4.5-5V logic levels. Threshold voltages (V_th) for Power MOSFETs are generally higher (2-4V) to ensure robustness in high-power applications, while Logic MOSFETs have lower V_th (typically 1-2V) for faster switching and compatibility with low-voltage digital circuits. The difference in gate drive requirements and threshold voltages directly impacts switching efficiency and integration with digital control systems.
Typical Applications of Power MOSFETs
Power MOSFETs are commonly used in high-power applications such as power supplies, motor controllers, and DC-DC converters due to their ability to handle large currents and high voltages efficiently. These devices excel in switching applications where low on-resistance and fast switching speeds are critical, making them ideal for use in power management and automotive electronics. Your choice of Power MOSFET can significantly impact the performance and energy efficiency of systems requiring robust power handling.
Typical Applications of Logic MOSFETs
Logic MOSFETs are primarily used in low-voltage, high-speed switching applications such as microcontroller power switches, battery-powered devices, and digital circuits. Their low gate threshold voltage and fast switching capabilities make them ideal for logic-level interfacing in computer motherboards and portable electronics. You benefit from precise control and energy efficiency in applications requiring rapid, consistent signal switching.
Selection Guidelines for Designers
Designers selecting between Power MOSFETs and Logic MOSFETs should prioritize voltage rating, on-resistance (R_DS(on)), and gate charge parameters to optimize performance for high-current or low-voltage applications. Power MOSFETs excel in high-current, high-voltage environments offering robust thermal performance and low conduction losses, while Logic MOSFETs suit low-voltage, fast-switching circuits with lower gate drive voltages. Evaluating switching speed, threshold voltage, and device packaging ensures compatibility with the intended control circuitry and operational environment.
Summary Table: Power MOSFET vs Logic MOSFET
Power MOSFETs are designed for high voltage and current applications, featuring low on-resistance and high efficiency in power switching, making them ideal for power management in industrial and automotive systems. Logic MOSFETs operate at lower voltages with higher gate threshold voltages optimized for digital logic circuits, offering faster switching speeds and lower input capacitance for improved performance in microcontrollers and digital electronics. Your choice depends on the application requirements, focusing on power handling capabilities for Power MOSFETs versus signal-level switching efficiency in Logic MOSFETs.

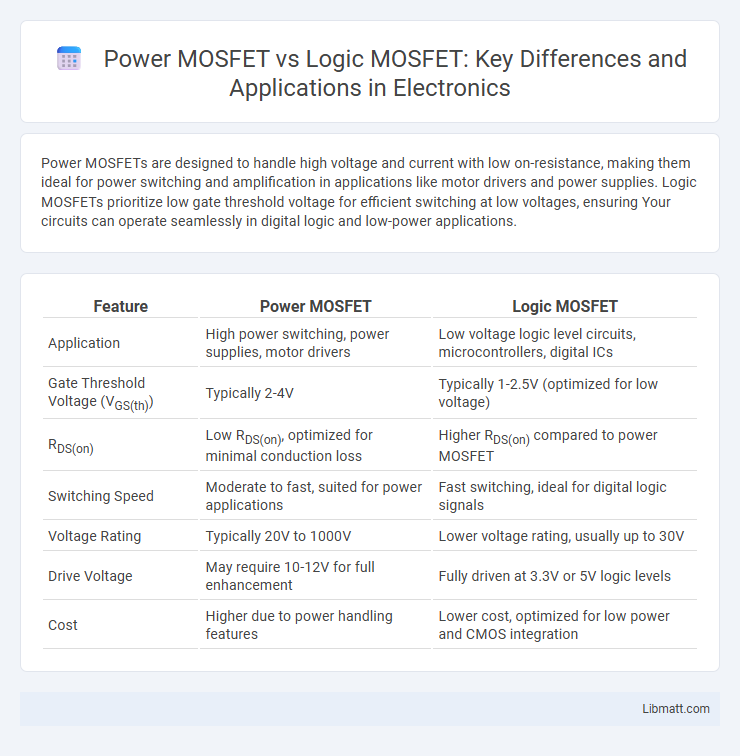

Power MOSFET vs Logic MOSFET Infographic
