libmatt.com A flyback converter is ideal for low to medium power applications, offering simple isolation and energy storage in its transformer, while a forward converter provides higher efficiency and better performance for medium to high power levels by transferring energy directly during the switch-on time. Your choice depends on power requirements, complexity, and efficiency needs, with flyback suited for simplicity and cost-saving, and forward for improved output regulation and reduced size.
Table of Comparison
| Feature | SMPS Flyback Converter | Forward Converter |
|---|---|---|
| Topology Type | Isolated, transformer-based, energy storage in transformer magnetizing inductance | Isolated, transformer-based, energy transferred directly to output |
| Energy Transfer | Stores energy during ON-time, releases during OFF-time | Transfers energy only during ON-time |
| Output Power Range | Low to medium power (up to ~100W) | Medium to higher power (typically 50W to several hundred watts) |
| Complexity | Simple design, fewer components | More complex, requires reset circuit |
| Transformer Design | Transformer operates in discontinuous conduction mode (DCM) | Transformer operates in continuous conduction mode (CCM) or DCM with reset |
| Voltage Stress on Switch | Higher voltage stress due to leakage inductance and flyback operation | Lower voltage stress on switch |
| Efficiency | Moderate efficiency (70-85%) | Higher efficiency (80-95%) |
| Application Examples | Power adapters, chargers, low power supplies | Industrial power supplies, telecom, medium power converters |
| Output Voltage Ripple | Higher output voltage ripple | Lower output voltage ripple |
| Cost | Lower cost due to simpler design | Higher cost due to complexity and more components |
Introduction to SMPS: Flyback vs Forward Converter
Flyback and Forward converters are two common topologies in Switch Mode Power Supplies (SMPS) used for efficient voltage regulation. The Flyback converter stores energy in the transformer's magnetic field during the switch ON period and releases it to the output during the OFF period, making it suitable for low to medium power applications with electrical isolation. The Forward converter transfers energy directly to the output during the switch ON period, offering higher efficiency and better performance in medium to high power applications with continuous energy delivery.
Basic Operating Principles of Flyback and Forward Converters
Flyback converters store energy in a transformer during the switch-on period and release it to the output during the switch-off period, making them ideal for isolated low-power applications. Forward converters transfer energy directly to the output transformer while the switch is on, providing continuous current flow and better efficiency for higher power levels. Understanding your application's power requirements helps determine whether the energy storage method of the flyback or the direct energy transfer of the forward converter suits your design best.
Key Differences Between Flyback and Forward Topologies
Flyback converters store energy in the transformer's magnetic field during the switch-on period, transferring it to the output when the switch is off, making them ideal for low to medium power applications and providing inherent galvanic isolation. Forward converters transfer energy directly from input to output during the switch-on period, requiring additional components like reset circuits to avoid transformer saturation, which suits higher power applications with better efficiency. Flyback topologies are simpler with fewer components, while forward converters offer improved performance with reduced output ripple and higher efficiency at increased power levels.
Efficiency Comparison: Flyback vs Forward Converter
Flyback converters typically offer lower efficiency, ranging from 70% to 85%, due to energy storage in the transformer and higher switching losses. Forward converters generally achieve higher efficiency, often between 80% and 95%, because they transfer energy directly during the switch-on period, reducing energy dissipation. Understanding these differences helps you select the optimal SMPS topology for applications demanding higher efficiency and better thermal management.
Applications Suited for Flyback Converters
Flyback converters are ideal for low to medium power applications such as chargers, standby power supplies, and small electronic devices due to their simple design and ability to provide electrical isolation. They excel in isolated power supplies with input voltages ranging from 85V to 265V AC, making them prevalent in telecom, LED drivers, and instrumentation. Their cost-effective and compact structure allows efficient operation in applications requiring minimal output power with multiple outputs.
Applications Suited for Forward Converters
Forward converters are well-suited for applications requiring regulated power supplies with moderate voltage and current levels, such as telecom equipment, industrial control systems, and medical devices. Their ability to deliver continuous energy transfer with lower output voltage ripple makes them ideal for sensitive electronics demanding stable DC output. Your power design benefits from forward converters when efficient energy transfer and precise voltage regulation are crucial in moderate power scenarios.
Design Complexity and Component Count Analysis
Flyback converters feature simpler design architecture with fewer components, making them ideal for low to medium power applications requiring isolation and cost-efficiency. Forward converters demand more complex circuitry and higher component counts due to the need for additional elements like output inductors and reset windings to manage energy transfer and maintain continuous conduction mode. This complexity in forward converters results in improved efficiency and performance in medium to high power applications, at the expense of design intricacy and system cost.
Pros and Cons of Flyback Converters
Flyback converters offer simplicity and cost-effectiveness by integrating energy storage and transformation in a single magnetic component, making them ideal for low to medium power applications. They provide excellent electrical isolation and good efficiency at low power levels, but suffer from higher electromagnetic interference (EMI) and limited performance at high power compared to forward converters. Your choice of flyback converter should weigh its lower component count and ease of design against constraints such as increased heat dissipation and potential voltage spikes during switching.
Pros and Cons of Forward Converters
Forward converters offer high efficiency and excellent regulation, making them suitable for medium power applications ranging from 50W to 300W. They provide continuous energy transfer with reduced core saturation risk compared to flyback converters, but require more complex design and additional components like transformers with reset windings, increasing size and cost. Your choice depends on balancing efficiency needs against design complexity and budget constraints.
Choosing the Right SMPS Topology for Your Project
Selecting between a flyback and forward converter topology in SMPS design depends on power level and complexity; flyback converters excel in low to medium power applications (up to 100W) with simpler circuitry and cost-effectiveness. Forward converters suit higher power requirements (above 100W) and offer better efficiency and reduced voltage stress due to continuous energy transfer and transformer reset mechanisms. Evaluating project-specific factors such as output power, isolation needs, and efficiency targets ensures optimal topology choice for reliable and efficient power supply solutions.

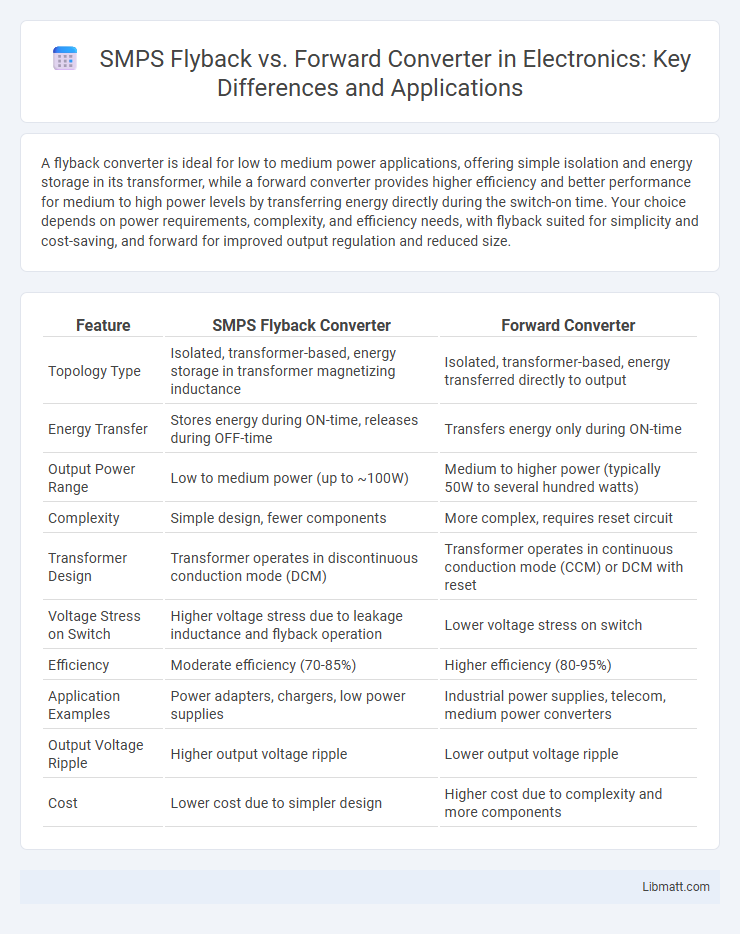

SMPS flyback vs Forward converter Infographic
