libmatt.com Tri-Gate transistors improve performance by wrapping the gate around three sides of the channel, reducing leakage and enhancing control compared to traditional planar designs. Gate-All-Around (GAA) technology further optimizes electrostatic control by surrounding the channel on all sides, offering superior scaling potential and power efficiency for your next-generation semiconductor devices.
Table of Comparison
| Feature | Tri-Gate | Gate-All-Around (GAA) |
|---|---|---|
| Gate Control | Three sides of the channel | Surrounds the channel completely |
| Channel Structure | Fin-based 3D transistor | Nanowire or nanosheet structure |
| Short Channel Control | Improved vs planar MOSFETs | Superior, ideal for sub-5nm nodes |
| Drive Current | High due to enhanced gate control | Higher due to full channel wrap |
| Leakage Reduction | Moderate leakage reduction | Significant leakage suppression |
| Manufacturing Complexity | Established, moderate complexity | Higher complexity, emerging technology |
| Industry Adoption | Used in 14nm to 7nm nodes (Intel 22nm tri-gate) | Adopted for 5nm nodes and beyond (TSMC, Samsung) |
Introduction to Advanced Transistor Architectures
Tri-Gate and Gate-All-Around (GAA) transistors represent significant advancements in transistor architecture, designed to enhance gate control and reduce leakage currents. Tri-Gate technology features a three-dimensional structure with the gate wrapping around three sides of the channel, improving electrostatic control compared to traditional planar transistors. Gate-All-Around transistors further advance this concept by surrounding the channel completely with the gate, offering superior scalability, better short-channel control, and improved performance for sub-5nm semiconductor nodes.
Overview of Tri-Gate Transistors
Tri-Gate transistors, also known as FinFETs, feature a three-dimensional gate that wraps around three sides of a silicon fin, enhancing control over the channel and reducing leakage current compared to traditional planar transistors. This geometry improves switching performance and power efficiency by increasing gate-to-channel capacitance while maintaining low short-channel effects. Tri-Gate technology forms a critical stepping stone towards more advanced Gate-All-Around (GAA) architectures, which envelop the channel entirely for even better electrostatic control.
Understanding Gate-All-Around (GAA) Transistors
Gate-All-Around (GAA) transistors represent the next evolution in semiconductor technology, offering superior electrostatic control compared to traditional Tri-Gate designs by surrounding the channel with the gate on all sides. This architecture minimizes leakage currents and enhances performance at nanoscale dimensions, making GAA devices ideal for maintaining Moore's Law progression. Your integration of GAA transistors can lead to improved energy efficiency and higher transistor density in advanced computing applications.
Structural Differences: Tri-Gate vs GAA
Tri-Gate transistors feature a three-sided gate structure wrapping around the channel on the top and two sides, enhancing electrostatic control compared to planar designs. Gate-All-Around (GAA) transistors fully encircle the channel with the gate material, providing superior gate control by minimizing leakage and short-channel effects. This structural difference allows GAA devices to achieve better scaling and performance at advanced technology nodes compared to Tri-Gate architectures.
Performance Comparison: Speed and Power Efficiency
Tri-Gate technology offers superior speed due to increased drive current from its 3D fin structure, but Gate-All-Around (GAA) transistors provide even better power efficiency by minimizing leakage currents through full channel control. Your choice between the two impacts device performance: Tri-Gate excels in high-speed applications, while GAA is optimal for ultra-low power designs and enhanced scalability at advanced nodes. Both technologies improve transistor switching characteristics, but GAA's architecture leads to improved power-performance balance in next-generation semiconductor devices.
Scalability and Node Adaptability
Tri-Gate technology offers effective scalability down to the 7nm node, providing improved control over short-channel effects compared to traditional planar transistors. Gate-All-Around (GAA) transistors enhance node adaptability beyond 5nm by surrounding the channel entirely, enabling superior electrostatic control and reduced leakage for advanced scaling. Your choice between Tri-Gate and GAA will impact device performance and power efficiency at sub-7nm technology nodes.
Manufacturing Challenges and Complexity
Tri-Gate transistors face manufacturing challenges due to their 3D fin structures requiring precise etching and doping control, increasing process complexity and variability. Gate-All-Around (GAA) technology introduces even greater complexity with the need to fabricate multiple nanowires or nanosheets, demanding advanced lithography and stacking techniques that push the limits of current semiconductor manufacturing. Your choice between these architectures must consider the increased production difficulty and cost impact associated with GAA's superior electrostatic control and device scaling.
Industry Adoption and Roadmap
Tri-Gate transistors, widely adopted by leading semiconductor manufacturers since the early 2010s, have become the industry standard for enhancing transistor performance at the 14nm and 10nm nodes. Gate-All-Around (GAA) technology is positioned as the next major leap, with companies like Samsung and TSMC actively developing GAA transistors for 3nm and beyond to overcome scaling limitations. Your choice between these technologies depends on availability and roadmap alignment, as GAA is expected to dominate future nodes with improved electrostatic control and power efficiency.
Real-World Applications and Use Cases
Tri-Gate transistors are widely used in mainstream processors and memory devices, offering improved power efficiency and performance in consumer electronics and data centers. Gate-All-Around (GAA) technology, with its superior electrostatic control, is ideal for next-generation semiconductor nodes and advanced AI accelerators, enabling higher transistor density and lower leakage currents. Your choice between Tri-Gate and GAA depends on the specific application requirements, balancing maturity and performance gains for real-world implementations.
Future Trends in Transistor Technology
Tri-Gate transistors enhance performance and power efficiency by providing three-dimensional control of the channel, but Gate-All-Around (GAA) transistors take this further by fully surrounding the channel with the gate, offering superior electrostatic control and scalability. Future trends in transistor technology highlight GAA as a critical advancement to sustain Moore's Law, enabling smaller node sizes and reduced leakage currents, which are essential for your next-generation semiconductor devices. As the industry moves beyond 3nm nodes, GAA architectures are expected to dominate due to their ability to improve transistor density and energy efficiency compared to Tri-Gate designs.

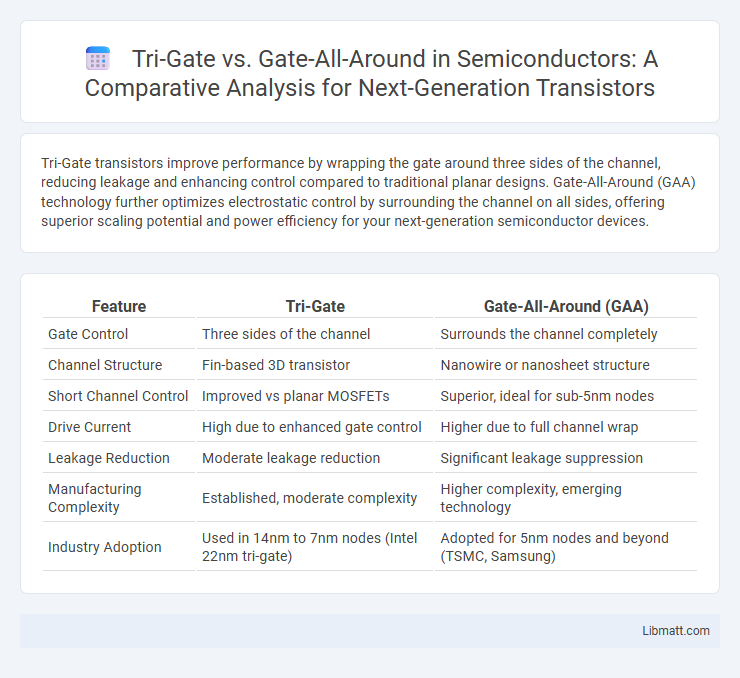

Tri-Gate vs Gate-All-Around Infographic
