libmatt.com Star topology offers centralized control and easy fault isolation by connecting all nodes to a single hub, making network management straightforward. Ring topology creates a closed loop where each node connects to two others, enabling equal data transmission but risking network failure if one node breaks the loop.
Table of Comparison
| Feature | Star Topology | Ring Topology |
|---|---|---|
| Network Layout | All devices connected to a central hub | Devices connected in a circular ring |
| Data Flow | Centralized; data passes through the hub | Unidirectional or bidirectional data flow around the ring |
| Fault Tolerance | High; failure of one device does not affect the network | Low; failure of one device breaks the ring |
| Network Performance | Stable; hub manages traffic efficiently | Dependent on ring integrity; can slow if many devices |
| Scalability | Easy to add new devices via the hub | Complex; adding devices may interrupt the network |
| Installation & Maintenance | Simple; centralized troubleshooting | Complex; requires ring consistency checks |
| Use Case in Automation | Preferred for centralized control systems and monitoring | Used in systems requiring equal access and token passing |
Overview of Star and Ring Topologies
Star topology connects all devices to a central hub or switch, facilitating easy management and fault isolation, while ring topology links each device to two others, forming a circular data path that ensures equal access and predictable data flow. Star topology offers simpler troubleshooting and scalability, with data primarily passing through the central node, whereas ring topology enables token passing or sequential data transmission, minimizing collisions but complicating failure detection. Both topologies have distinct advantages in network design, influencing performance, reliability, and maintenance strategies.
Structure and Design Principles
Star topology features a centralized hub where all devices connect individually, ensuring easy fault isolation and straightforward management. Ring topology connects devices in a closed loop, with each node linked to exactly two others, supporting unidirectional or bidirectional data flow and requiring token-passing protocols for communication. Your choice between these designs impacts network scalability, fault tolerance, and data transmission efficiency.
Data Transmission Methods
Star topology uses a central hub or switch to manage data transmission, allowing data to travel directly from the sender to the receiver through dedicated point-to-point connections, reducing collision possibilities. Ring topology transmits data sequentially in one direction around the network nodes, with each device acting as a repeater to pass the data along until it reaches its destination. Your choice between these topologies impacts network performance and fault tolerance based on how data flows through the system.
Network Performance Comparison
Star topology offers superior network performance by minimizing data collision through centralized control via a hub or switch, allowing simultaneous data transmissions to multiple devices. In contrast, ring topology relies on token passing, which can introduce latency and reduce throughput as data travels sequentially through each node. Consequently, star topology generally provides faster data transfer rates and better fault tolerance compared to ring topology, which experiences performance degradation if any single node fails.
Scalability and Expansion
Star topology offers superior scalability by allowing easy addition of new devices through direct connections to a central hub without disrupting the existing network. In contrast, ring topology requires insertion of new nodes into the loop, which can temporarily interrupt data flow and complicate expansion efforts. The centralized structure of star topology supports flexible growth and simplified network management compared to the sequential dependency seen in ring configurations.
Fault Tolerance and Reliability
Star topology offers higher fault tolerance and reliability since each device connects independently to a central hub, allowing network communication to continue even if one device fails. In contrast, ring topology depends on a closed loop, so a single device or connection failure can disrupt the entire network unless a dual-ring or bypass mechanism is implemented. Your choice impacts network uptime and maintenance complexity, with star topology generally providing easier fault isolation and quicker recovery.
Cost Implications
Star topology typically incurs higher initial costs due to the need for a central hub or switch and more cabling, while ring topology reduces cabling expenses by connecting devices in a closed loop. Maintenance and troubleshooting in star topology can be more cost-effective since faults are isolated to individual connections, whereas ring topology may require network downtime for repairs, increasing operational costs. Overall, the choice between star and ring topologies depends on budget allocation for installation and long-term maintenance expenses.
Installation and Maintenance Complexity
Star topology offers easier installation and maintenance due to its centralized hub, allowing straightforward addition or removal of devices without disrupting the entire network. Ring topology requires more complex installation as devices connect in a closed loop, making fault isolation and network expansion more challenging. Maintenance in ring topology often involves temporarily disabling the entire ring to fix issues, whereas star topology localizes faults to individual nodes, minimizing network downtime.
Use Cases and Applications
Star topology is widely used in home networks, small offices, and corporate environments due to its ease of installation and straightforward fault isolation, making it ideal for environments requiring reliable central management of devices. Ring topology finds application in metropolitan area networks (MANs) and fiber optic networks where consistent data transmission speed and fault tolerance are critical, as the data travels in a unidirectional or bidirectional loop ensuring minimal collision. Both topologies serve distinct purposes: star topology excels in scalability and simplicity for client-server models, while ring topology supports robust communication in systems requiring equal access to network resources.
Pros and Cons Summary
Star topology offers easy network management and fault isolation since each device connects to a central hub, but it depends heavily on the hub's functionality, creating a single point of failure. Ring topology provides equal data transmission opportunities with predictable performance using token passing, yet it can be disrupted by a single node or cable failure unless a dual ring or fault-tolerant mechanism is implemented. Star topology tends to be more scalable and easier to troubleshoot, while ring topology can be better for consistent data flow in small to medium-sized networks.

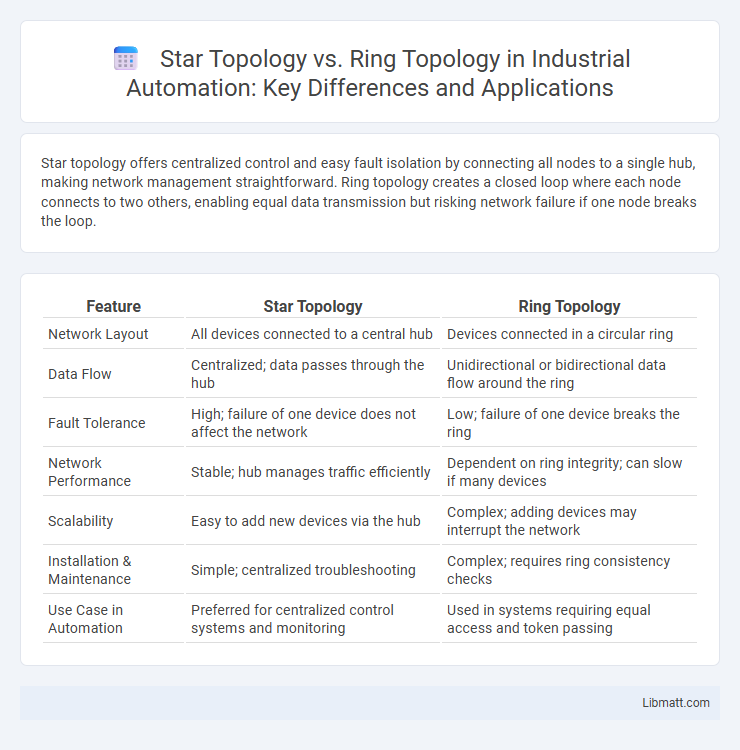

Star Topology vs Ring Topology Infographic
