libmatt.com Reverse osmosis removes nearly all dissolved solids, including salts, bacteria, and viruses, making it ideal for producing highly purified water. Nanofiltration selectively filters out larger molecules and divalent ions, preserving beneficial minerals while effectively softening water and reducing organic contaminants.
Table of Comparison
| Feature | Reverse Osmosis (RO) | Nanofiltration (NF) |
|---|---|---|
| Membrane Pore Size | 0.0001 microns (0.1 nm) | 0.001 microns (1 nm) |
| Removal Efficiency | Removes 95-99% dissolved salts, heavy metals, and organics | Removes 90-98% divalent and larger molecules, partial monovalent removal |
| Target Contaminants | Salts, nitrates, fluoride, arsenic, viruses, bacteria | Hardness ions (Ca2+, Mg2+), organic molecules, some pathogens |
| Operating Pressure | 800-1200 kPa (120-175 psi) | 400-700 kPa (60-100 psi) |
| Energy Consumption | High due to pressure requirements | Lower compared to RO |
| Typical Applications | Desalination, ultrapure water, wastewater treatment | Softening, color removal, partial desalination |
| Water Recovery Rate | 40-60% | 75-90% |
| Cost | Higher capital and operational costs | Lower capital and operational costs |
Introduction to Membrane Filtration Technologies
Membrane filtration technologies like reverse osmosis and nanofiltration utilize semi-permeable membranes to separate contaminants from water based on molecular size and charge. Reverse osmosis delivers high purity by removing up to 99% of dissolved solids and contaminants, while nanofiltration targets divalent ions and larger organic molecules, offering effective softening and partial desalination. Understanding these distinctions helps you choose the right system for water treatment tailored to your specific quality requirements.
What is Reverse Osmosis (RO)?
Reverse Osmosis (RO) is a water purification process that uses a semipermeable membrane to remove contaminants, including dissolved salts, bacteria, and organic molecules, from water. It operates by applying pressure to force water through the membrane, allowing only clean water molecules to pass while rejecting larger particles and impurities. Understanding RO's effectiveness in producing high-purity water can help you choose the optimal filtration system for your needs.
What is Nanofiltration (NF)?
Nanofiltration (NF) is a membrane filtration process designed to remove divalent and larger monovalent ions, organic molecules, and bacteria, typically with pore sizes ranging from 1 to 10 nanometers. Unlike reverse osmosis (RO), which removes nearly all dissolved salts and contaminants, NF selectively filters out contaminants while allowing beneficial minerals like calcium and magnesium to pass through. Your choice between NF and RO depends on water quality needs, energy consumption, and the balance between contaminant removal and mineral retention.
Key Differences Between RO and NF
Reverse osmosis (RO) uses a semipermeable membrane with smaller pore sizes, typically around 0.0001 microns, to remove nearly all dissolved solids, including salts, heavy metals, and microorganisms, while nanofiltration (NF) membranes have larger pores, approximately 0.001 microns, allowing selective passage of monovalent ions and retaining divalent and larger molecules. RO systems achieve higher contaminant rejection rates, often exceeding 99%, making them ideal for applications requiring ultrapure water, whereas NF is effective for softening water and removing organic compounds with lower energy consumption. Your choice between RO and NF should consider factors such as water quality goals, energy efficiency, and specific contaminants targeted for removal.
Membrane Structure and Pore Size Comparison
Reverse osmosis membranes have a dense, nonporous structure with pore sizes typically around 0.0001 microns, effectively removing nearly all dissolved salts and contaminants. Nanofiltration membranes feature a looser, semi-permeable matrix with pore sizes ranging from 0.001 to 0.01 microns, allowing selective passage of monovalent ions while rejecting divalent and larger molecules. Understanding these distinctions in membrane structure and pore size helps you choose the appropriate technology based on your water purification needs.
Contaminant Removal Capabilities: RO vs NF
Reverse osmosis (RO) membranes remove up to 99% of dissolved salts, heavy metals, and organic compounds, making them highly effective for desalination and purification. Nanofiltration (NF) membranes target divalent and larger monovalent ions while allowing smaller monovalent ions, such as sodium and chloride, to pass through, making NF ideal for water softening and partial contaminant removal. RO offers comprehensive contaminant removal including bacteria and viruses, whereas NF provides selective filtration with lower energy consumption and higher flow rates.
Energy Consumption and Efficiency
Reverse osmosis systems typically consume more energy due to higher pressure requirements, ranging from 3 to 10 kWh per 1,000 gallons treated, compared to nanofiltration processes that use approximately 2 to 5 kWh per 1,000 gallons. Nanofiltration membranes operate at lower pressures, enhancing energy efficiency while maintaining effective separation of divalent ions and larger molecules. Optimizing energy consumption in reverse osmosis relies on advanced pump technology and membrane recovery rates, making it less efficient than nanofiltration in energy-sensitive applications.
Common Applications of RO and NF
Reverse osmosis (RO) is commonly used for desalination, wastewater treatment, and removing dissolved salts to produce high-purity water in industries like pharmaceuticals and food processing. Nanofiltration (NF) is favored for softening water, partial removal of divalent ions, and organic compounds in applications such as dairy processing and wastewater reuse. Your choice between RO and NF depends on the required water quality and specific contaminants to be removed.
Advantages and Disadvantages
Reverse osmosis offers superior contaminant removal, including dissolved salts and heavy metals, making it ideal for desalination and producing high-purity water. Nanofiltration requires less energy and maintains beneficial minerals, effectively removing organic compounds and larger particles but less efficient against monovalent ions. While reverse osmosis membranes are prone to fouling and higher operational costs, nanofiltration systems offer lower pressure requirements but may not meet stringent purification standards needed for certain industrial or pharmaceutical applications.
Choosing the Right Filtration Method
Reverse osmosis offers superior salt rejection and is ideal for removing dissolved solids and heavy metals, making it suitable for applications requiring highly purified water. Nanofiltration provides selective filtration, effectively reducing organic compounds and certain divalent ions while maintaining beneficial minerals, which is advantageous for water softening and moderate contaminant removal. Your choice depends on the water quality goals, with reverse osmosis preferred for maximum purification and nanofiltration for balancing contaminant removal with mineral retention.

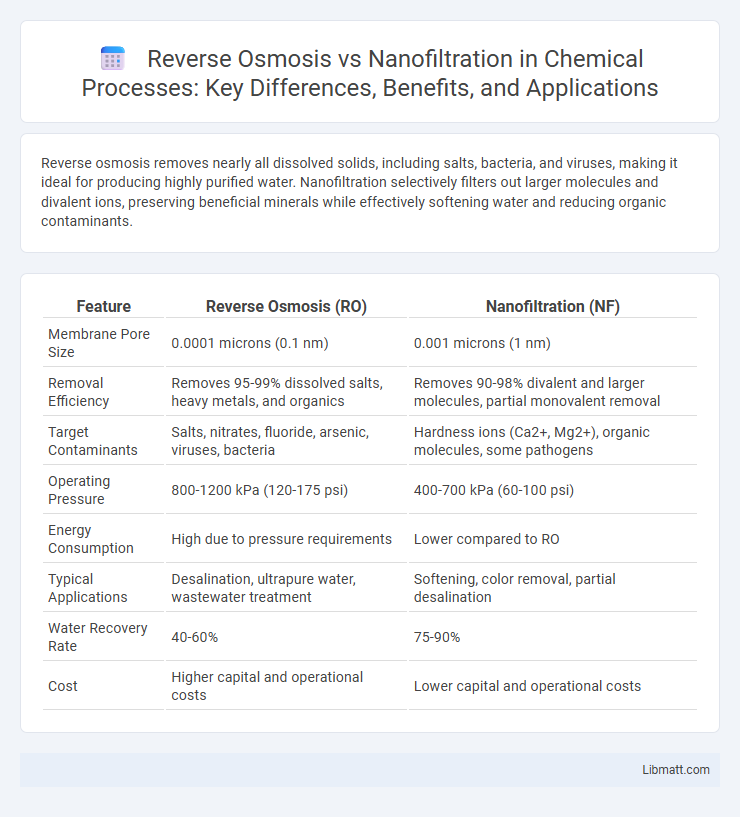

Reverse osmosis vs nanofiltration Infographic
