libmatt.com Open collector outputs allow multiple devices to share a single line for wired-AND logic, offering flexibility in connecting LED indicators or bus lines, whereas totem pole outputs provide faster switching speeds and actively drive the line both high and low, ensuring faster signal transitions and stronger drive capability. Your choice depends on whether you need the open-collector's wired-AND feature for shared lines or the totem pole's speed and drive strength for direct signal driving.
Table of Comparison
| Feature | Open Collector | Totem Pole |
|---|---|---|
| Output Type | Transistor transistor logic (NPN transistor) with open collector | Push-pull output stage with complementary transistors (NPN and PNP or NPN/NPN) |
| Load Connection | Requires external pull-up resistor to supply voltage | No external pull-up resistor needed |
| Output Levels | Can only sink current (active low) | Can both source and sink current (active high and low) |
| Wired-AND Capability | Supports wired-AND logic by connecting multiple outputs together | Does not support wired-AND; outputs must be connected separately |
| Speed | Slower due to external pull-up resistor and transistor switching | Faster switching due to push-pull driving |
| Power Consumption | Lower power consumption when output off | Higher power consumption due to continuous drive |
| Typical Usage | Driving LEDs, open-drain bus systems, and level shifting | Standard logic signals, direct driving of loads |
Introduction to Output Configurations
Open collector output configurations use a transistor to sink current, allowing for wired-AND logic and flexible voltage levels suitable for interfacing with different power supplies. Totem pole outputs consist of paired transistors that actively drive the output high or low, providing faster switching speeds and stronger signal drive capabilities. Choosing between these configurations impacts your circuit's compatibility, speed requirements, and load-driving capacity.
What is an Open Collector Output?
An open collector output is a type of transistor output stage used in digital circuits where the transistor's collector is left unconnected internally, allowing external components to pull the line high. This configuration enables multiple devices to share a single output line, facilitating wired-AND logic and level shifting between different voltage domains. Understanding how your device uses open collector outputs can improve circuit design by enabling simple bus communication and reducing power consumption compared to totem pole outputs.
Understanding Totem Pole Output
Totem pole output stages use push-pull transistor arrangements to actively drive the output high or low, offering faster switching speeds and stronger signal drive compared to open collector outputs. Unlike open collector drivers that require external pull-up resistors and can only sink current, totem pole outputs can both source and sink current, making them ideal for driving logic inputs directly. Understanding your device's output stage helps ensure compatibility with your circuit's voltage levels and timing requirements.
Key Differences Between Open Collector and Totem Pole
Open Collector outputs use a transistor connected to ground, requiring an external pull-up resistor for proper operation, whereas Totem Pole outputs integrate both pull-up and pull-down transistors for faster switching and defined voltage levels. Open Collector configurations excel in wired-AND logic and level shifting but have slower rise times compared to Totem Pole outputs, which offer faster transitions and stronger drive capabilities. Understanding these key differences helps you select the optimal output stage for your digital circuit needs, balancing speed, complexity, and interfacing requirements.
Circuit Operation and Characteristics
Open collector circuits operate by pulling the output line to ground through a transistor, allowing multiple outputs to be wired together for wired-AND configurations but requiring an external pull-up resistor for proper voltage levels. Totem pole outputs use two transistors arranged in a push-pull configuration to actively drive the output both high and low, resulting in faster switching speeds and stronger drive capability. Understanding these operational differences helps you select the appropriate output stage based on desired signal integrity and load driving requirements.
Advantages of Open Collector Outputs
Open Collector outputs provide the advantage of wired-AND capability, allowing multiple outputs to be connected to a single line without damage, which enhances flexibility in complex digital circuits. They can easily interface with different voltage levels by using an external pull-up resistor, enabling compatibility with various logic families and systems. Open Collector configurations also offer improved noise immunity in noisy environments, making them suitable for industrial and automotive applications.
Benefits of Totem Pole Outputs
Totem pole outputs provide faster switching speeds and improved signal integrity compared to open collector configurations, making them ideal for high-speed digital circuits. They actively drive both high and low states, reducing power dissipation and minimizing the need for external pull-up resistors, which simplifies your circuit design. This results in better noise immunity and more reliable performance in complex electronic applications.
Typical Applications and Use-Cases
Open Collector outputs are ideal for wired-AND logic, multi-device bus sharing, and level shifting, frequently used in sensor interfacing, LED driving, and I2C communication lines. Totem Pole outputs excel in high-speed switching applications, including microcontroller GPIO pins, push-pull amplifier stages, and digital signal driving where fast transitions and strong drive strength are essential. Your choice between Open Collector and Totem Pole depends on whether you require open-drain flexibility for multiple device control or fast, direct drive capabilities.
Choosing the Right Output for Your Design
Open Collector outputs provide flexibility by allowing external pull-up resistors to set voltage levels, making them ideal for wired-AND logic and level shifting in mixed-voltage systems. Totem Pole outputs deliver faster switching speeds and stronger drive capabilities, suitable for driving digital logic inputs directly with minimal delay. Selecting the right output depends on your design's requirements for speed, voltage compatibility, and the need for multiple-output wiring configurations.
Summary and Final Comparison
Open Collector outputs allow multiple devices to share a line by wiring their collectors together, enabling wired-AND logic with simple hardware, but require external pull-up resistors and have slower switching speeds. Totem Pole outputs provide actively driven high and low states using complementary transistors, delivering faster transitions and stronger drive capability without the need for pull-up resistors. For applications demanding speed and strong drive signals, Totem Pole is preferred, while Open Collector suits scenarios needing wired-AND functionality or interfacing with different voltage levels.

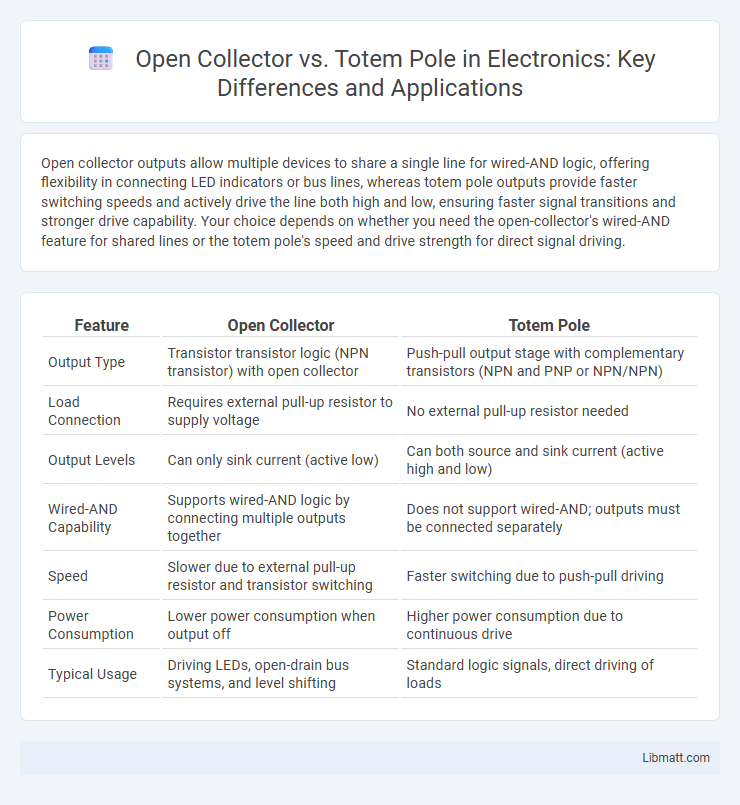

Open Collector vs Totem Pole Infographic
