libmatt.com Optocoupler isolation uses light to transfer electrical signals between circuits, providing excellent high-voltage isolation and noise immunity in compact designs. Transformer isolation relies on magnetic coupling to isolate and transfer power or signals, making it ideal for AC applications and providing galvanic isolation with inherent voltage step-up or step-down capabilities.
Table of Comparison
| Feature | Optocoupler Isolation | Transformer Isolation |
|---|---|---|
| Isolation Method | Light signal through LED and photodetector | Magnetic coupling via coils and magnetic core |
| Voltage Isolation | High, typically up to 5kV RMS | Very high, up to tens of kV depending on design |
| Frequency Range | Low to moderate (DC to a few MHz) | Wide range, from DC (via special transformers) to MHz |
| Signal Type | Digital and low-frequency analog signals | AC signals, analog, and power transfer |
| Power Consumption | Low, LED current dependent | Higher, due to coil winding and core losses |
| Size | Compact, PCB mountable | Bulky, especially for high voltage/current ratings |
| Cost | Low to moderate | Moderate to high depending on specs |
| Response Time | Fast, typically microseconds | Variable, dependent on core and winding |
| Applications | Signal isolation, microcontroller interfaces, data isolation | Power isolation, impedance matching, signal coupling |
Introduction to Isolation Techniques
Isolation techniques like optocouplers and transformers play a crucial role in protecting sensitive electronic circuits by preventing direct electrical connections while allowing signal or power transfer. Optocouplers use light to transmit signals across an electrical barrier, ensuring galvanic isolation and noise immunity, ideal for low-power signal applications. Transformers provide isolation through magnetic coupling, enabling efficient power transfer and voltage scaling in higher power scenarios, safeguarding your circuits from high-voltage spikes and disturbances.
What is an Optocoupler?
An optocoupler is an electronic component that uses light to transmit electrical signals between two isolated circuits, ensuring electrical isolation and noise reduction. It consists of an LED (light-emitting diode) and a photodetector, such as a phototransistor or photodiode, housed in a single package. Optocouplers provide high-speed signal isolation and are commonly used in data communication and switching power supplies.
What is Transformer Isolation?
Transformer isolation uses electromagnetic induction to transfer electrical signals between circuits while maintaining galvanic isolation, preventing direct electrical connection. It effectively blocks high-voltage transients and noise, making it ideal for power supply and signal isolation in industrial and communication applications. Compared to optocouplers, transformers handle higher power levels and provide isolation without relying on semiconductor components.
Working Principles: Optocoupler vs Transformer
Optocouplers isolate electrical signals by using light to transfer data between an LED and a photodetector, ensuring signal transmission without direct electrical contact. Transformers isolate and transfer energy through magnetic coupling between coils, enabling voltage transformation and galvanic isolation in AC circuits. Optocouplers excel in signal isolation with low power consumption, while transformers handle higher power levels and provide improved noise immunity.
Key Electrical Characteristics
Optocouplers offer high galvanic isolation with low input-to-output capacitance and fast response times, making them ideal for signal isolation in low-frequency applications. Transformers provide excellent isolation voltage ratings and can handle higher power levels and frequencies, suitable for power conversion and audio signal transmission. Key electrical characteristics include isolation voltage, frequency response, input/output impedance, and propagation delay, with optocouplers excelling in signal conditioning and transformers excelling in power isolation and amplification.
Safety and Isolation Voltage Ratings
Optocouplers provide electrical isolation through light transmission, offering isolation voltage ratings typically up to 5 kV, which is ideal for low to medium voltage applications requiring compact, reliable safety barriers. Transformers deliver galvanic isolation using magnetic coupling, with isolation voltage ratings often exceeding 10 kV, making them suitable for high voltage and power isolation tasks. Your choice between optocouplers and transformers should consider the required isolation voltage level and safety standards compliance for the specific application.
Signal Integrity and Performance
Optocouplers offer high signal integrity through galvanic isolation using light transmission, minimizing electrical noise and interference, which ensures accurate data transfer in sensitive applications. Transformers provide excellent isolation for AC signals with minimal distortion and wide bandwidth, supporting high power and frequency range but can introduce core saturation and leakage inductance affecting performance. Your choice depends on whether the priority is low-level signal fidelity (optocoupler) or efficient AC power isolation with robust performance (transformer).
Application Scenarios and Use Cases
Optocouplers are commonly used in low-power, signal isolation applications such as microcontroller interfacing, sensor signal transmission, and small-scale communication devices where electrical noise immunity is critical. Transformers excel in power isolation and energy transfer tasks found in power supplies, audio equipment, and industrial machinery due to their ability to handle higher voltages and provide galvanic isolation. Selecting between optocouplers and transformers depends on factors like frequency range, voltage levels, and the need for signal integrity in applications like medical devices, consumer electronics, or heavy electrical systems.
Advantages and Limitations Comparison
Optocouplers provide excellent electrical isolation with minimal noise interference, making them ideal for signal-level isolation and compact circuit designs, but they have limited bandwidth and slower response times compared to transformers. Transformers offer superior power isolation and can handle higher voltage levels with efficient energy transfer but are bulkier, heavier, and prone to electromagnetic interference. For your specific application, choosing between an optocoupler and a transformer depends on factors like signal frequency, size constraints, and isolation voltage requirements.
Choosing the Right Isolation Method
Choosing the right isolation method depends on factors such as frequency range, signal integrity, size constraints, and voltage ratings. Optocouplers offer compact, low-cost, high-speed digital isolation with excellent noise immunity for low to moderate voltage applications, while transformers provide galvanic isolation with efficient power transfer and wide frequency bandwidth, suitable for higher voltage and power scenarios. Consider application-specific requirements like signal type, isolation voltage, and environmental conditions to determine whether optocoupler or transformer isolation best meets system performance and safety standards.

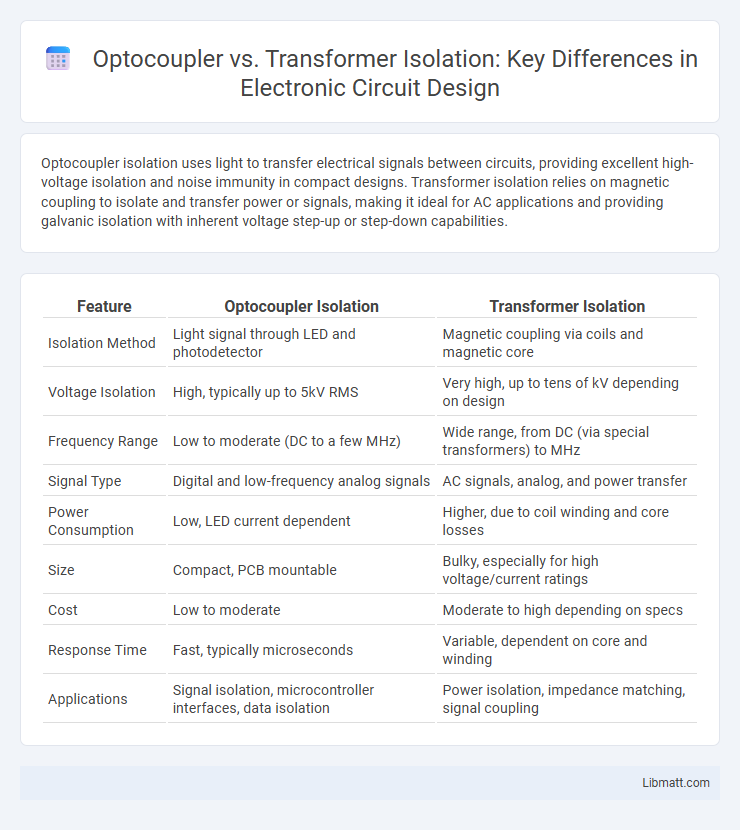

Optocoupler vs Transformer isolation Infographic
