libmatt.com SMBus and I2C are both two-wire communication protocols used for device communication, but SMBus is a subset of I2C with stricter electrical and protocol specifications to enhance reliability and interoperability in system management tasks. Your choice depends on the requirements for timing, voltage levels, and protocol features specific to your application environment.
Table of Comparison
| Feature | SMBus (System Management Bus) | I2C (Inter-Integrated Circuit) |
|---|---|---|
| Purpose | System management, battery and power control | General-purpose communication between ICs |
| Data Rate | Up to 100 kbit/s (Standard mode) | Up to 3.4 Mbit/s (High-Speed mode) |
| Voltage Levels | Typically 3.3 V or 5 V | Typically 1.8 V to 5 V |
| Clock Frequency | Standardized at 10 kHz to 100 kHz | Flexible from 100 kHz to 3.4 MHz |
| Protocol Complexity | Simpler with strict timing and timeouts | Flexible but less strict timing |
| Timeout Feature | Yes, mandatory timeout to detect bus hang | No native timeout support |
| Addressing | 7-bit addressing plus SMBus Packet Error Code (PEC) | 7-bit or 10-bit addressing |
| Packet Error Code (PEC) | Optional CRC byte for error checking | No standard PEC support |
| Compatibility | Subset of I2C with some additional rules | Widely supported in devices and components |
Introduction to SMBus and I2C
SMBus (System Management Bus) and I2C (Inter-Integrated Circuit) are communication protocols widely used for connecting low-speed devices in embedded systems. I2C provides a simple, multi-master, multi-slave serial bus interface, while SMBus is a derivative of I2C with additional protocols for system management and stricter timing and voltage specifications. Understanding the distinctions between SMBus and I2C helps optimize Your device communication for power management and system monitoring applications.
Historical Background and Development
SMBus (System Management Bus) was developed by Intel in 1995 as a subset of the I2C (Inter-Integrated Circuit) protocol originally created by Philips in 1982 to enable simple, two-wire communication between integrated circuits. SMBus introduced stricter electrical and timing specifications designed for system management and battery monitoring in PCs, enhancing compatibility and reliability over the more flexible, general-purpose I2C. While both protocols share physical layers and basic signaling, SMBus's standardized commands and timeout features address specific power and system management challenges not covered in the original I2C specification.
Protocol Architecture Overview
SMBus and I2C share a similar two-wire serial communication architecture comprising a data line (SDA) and a clock line (SCL), enabling simple device interconnectivity on circuit boards. SMBus incorporates stricter timing constraints, defined voltage levels, and additional protocols like alert responses and device timeout, optimizing it for system management tasks in PCs and servers. Your choice between SMBus and I2C depends on the need for enhanced reliability and power management features versus a more flexible, general-purpose communication protocol.
Electrical and Physical Layer Differences
SMBus and I2C share a similar two-wire communication interface but differ primarily in their electrical and physical layer specifications. SMBus enforces stricter voltage levels, current limits, and timing constraints to ensure enhanced interoperability and reliability for system management functions, unlike the more flexible I2C standard. Your choice impacts device compatibility, as SMBus devices require tighter control over signal rise times and pull-up resistors, which may not align with typical I2C implementations.
Communication Speed Comparison
SMBus typically operates at speeds up to 100 kHz, designed for low-speed, low-power communication in system management applications. I2C supports a wider range of speeds, including standard mode (100 kHz), fast mode (400 kHz), fast-mode plus (1 MHz), and high-speed mode (3.4 MHz), enabling more versatile data transfer rates. The higher maximum speed of I2C makes it suitable for applications requiring faster communication compared to the more conservative SMBus specifications.
Addressing and Data Formats
SMBus uses a simplified addressing scheme based on 7-bit addresses similar to I2C but reserves specific addresses for system management purposes, enhancing device compatibility and communication reliability. Data formats in SMBus strictly define packet structures with mandatory checksums and timeouts to ensure data integrity, while I2C allows more flexible and device-dependent data protocols without enforced error detection. The strict SMBus protocol enables standardized communication in system management, whereas I2C's flexibility supports a broader range of peripheral devices with varying data requirements.
Error Handling and Robustness
SMBus incorporates defined protocols for error handling such as timeout detection and device alert responses, enhancing communication reliability compared to I2C's more flexible but less standardized approach. SMBus devices often include built-in mechanisms like PEC (Packet Error Code) to improve data integrity, while I2C relies primarily on software-level error management. These SMBus features contribute to higher robustness in environments where error detection and recovery are critical for stable system operation.
Compatibility and Interoperability
SMBus is a subset of the I2C protocol with stricter electrical and timing requirements, ensuring higher reliability and standardized device behavior across systems. While SMBus devices are generally compatible with I2C buses, certain features like clock stretching and voltage levels may cause interoperability issues in mixed environments. Understanding these protocol distinctions helps optimize your system design for seamless communication between SMBus and I2C components.
Application Areas and Use Cases
SMBus and I2C are widely used in embedded systems, with SMBus primarily designed for system management tasks such as battery monitoring, temperature sensing, and power management in laptops and servers. I2C is more versatile, commonly found in consumer electronics, sensors, and microcontroller communication due to its flexibility and broader device support. Your choice between SMBus and I2C depends on the specific application requirements, where SMBus offers stricter protocol control for reliability in system health monitoring, while I2C excels in general-purpose inter-device communication.
Choosing Between SMBus and I2C
SMBus and I2C both facilitate communication between integrated circuits but differ in voltage levels, protocols, and timing specifications, influencing your choice based on system requirements. SMBus offers stricter protocol enforcement, including timeout features and error checking, making it ideal for system management applications where reliability is critical. I2C provides more flexibility with faster speeds and broader device compatibility, making it suitable for general-purpose communication in diverse embedded systems.

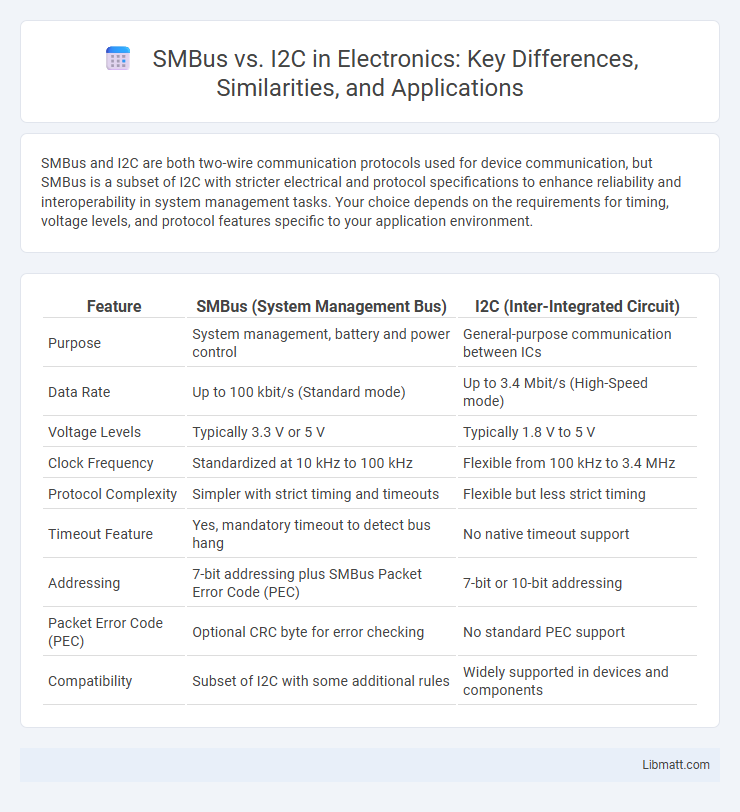

SMBus vs I2C Infographic
