libmatt.com Seam tracking continuously monitors the welding path to ensure precise alignment during the process, while seam finding involves initially locating the seam's position before welding begins. Your choice between these methods depends on the complexity of the joint and the level of accuracy required to maintain high-quality welds.
Table of Comparison
| Feature | Seam Tracking | Seam Finding |
|---|---|---|
| Definition | Continuous real-time monitoring and adjustment of the robot's path along the seam. | Initial detection and location of the seam before welding or processing. |
| Primary Use | Maintains accuracy during dynamic operations. | Establishes starting position for robot task. |
| Technology | Uses sensors like laser, vision, or tactile for real-time feedback. | Employs vision systems or sensors to detect seam geometry. |
| Operation Phase | Active during welding or processing. | Performed prior to process start. |
| Accuracy Impact | Improves seam following precision dynamically. | Ensures correct initial seam alignment. |
| Common Applications | Robotic welding, laser cutting, automated assembly. | Robotic setup, calibration, quality inspection. |
Introduction to Seam Tracking and Seam Finding
Seam tracking involves continuously monitoring and following the exact path of a joint during welding to ensure precise alignment and consistent quality. Seam finding, on the other hand, is the process of identifying the location and start point of a weld seam before welding begins, often using sensors or vision systems. Both technologies are critical in automated welding applications to enhance accuracy, reduce defects, and improve production efficiency.
Key Differences Between Seam Tracking and Seam Finding
Seam tracking continuously monitors and adjusts the welding torch position to maintain alignment with the joint during welding, ensuring consistent weld quality. Seam finding is the initial process of detecting the seam location on the workpiece before welding begins, using sensors or vision systems to identify the joint path. Key differences include real-time correction in seam tracking versus initial seam detection in seam finding, with seam tracking typically involving dynamic laser or sensor feedback and seam finding relying more on pre-welding inspection techniques.
Importance of Seam Accuracy in Welding
Seam accuracy in welding directly impacts the structural integrity and quality of the final product, making precise seam tracking essential for consistent welds. Seam tracking technology uses sensors and real-time adjustments to follow the seam path accurately, reducing defects and rework costs. You can enhance welding precision by selecting advanced seam finding systems that detect seam positions quickly and reliably, ensuring optimal weld bead placement.
How Seam Tracking Works
Seam tracking works by continuously monitoring the weld seam position using sensors such as laser scanners, optical cameras, or ultrasonic devices, which detect deviations from the programmed path in real-time. The system processes the sensor data through advanced algorithms to adjust the welding torch or tool alignment dynamically, ensuring precise seam guidance. This real-time feedback loop minimizes defects and improves welding accuracy in automated or robotic welding processes.
The Process of Seam Finding
The process of seam finding involves accurately detecting the exact location and orientation of a seam on a workpiece using sensors or vision systems, enabling precise alignment for welding or cutting operations. This technique uses real-time data analysis to identify seam characteristics such as edges, gaps, and contours, ensuring consistent and high-quality joint fabrication. Seam finding is critical for compensating variations in material positioning and geometry, reducing errors and improving automated manufacturing efficiency.
Technologies Used in Seam Tracking
Seam tracking technologies utilize sensor systems such as laser scanners, optical sensors, and infrared cameras to detect seam positions with high precision during welding and fabrication processes. Advanced methods also incorporate real-time feedback from machine vision and electromagnetic sensors to adjust the welding path dynamically, ensuring accuracy despite joint irregularities. These technologies enable automated manufacturing systems to maintain seam alignment and improve weld quality in complex assembly operations.
Seam Finding Techniques and Sensors
Seam finding techniques utilize advanced sensors such as laser scanners, CCD cameras, and infrared detectors to accurately locate the exact position of a seam during welding or manufacturing processes. These sensors capture real-time data on seam geometry, enabling precise alignment and adjustment to accommodate variations in material or joint fit-up. Your choice of seam finding technology directly impacts the efficiency and quality of seam tracking, ensuring consistent welds or cuts in automated production environments.
Application Scenarios for Seam Tracking
Seam tracking is essential in automated welding processes where maintaining precise alignment with the joint seam ensures consistent weld quality, particularly in robotic manufacturing and pipeline construction. It excels in dynamic environments where the seam position may vary due to part tolerances or movement, such as automotive assembly lines or shipbuilding. Your production efficiency improves by integrating seam tracking systems that continuously adjust welding paths to accommodate real-time deviations.
Application Scenarios for Seam Finding
Seam finding is crucial in automated welding for identifying the precise location and orientation of the joint, especially in complex geometries or variable workpieces where pre-programmed paths are insufficient. Common application scenarios include robotic arc welding of automobile bodies, pipeline construction with varying seam positions, and aerospace component assembly requiring high accuracy. Seam finding technologies improve weld quality and reduce rework by enabling dynamic adjustments in real-time during the welding process.
Choosing Between Seam Tracking and Seam Finding
Choosing between seam tracking and seam finding depends on the application requirements for precision and speed. Seam tracking continuously monitors the weld seam to guide the welding torch in real-time, ideal for high-accuracy automated processes and complex joint geometries. Seam finding, by contrast, locates the weld seam before welding starts, suitable for simpler tasks where initial alignment is critical but ongoing adjustment is unnecessary.

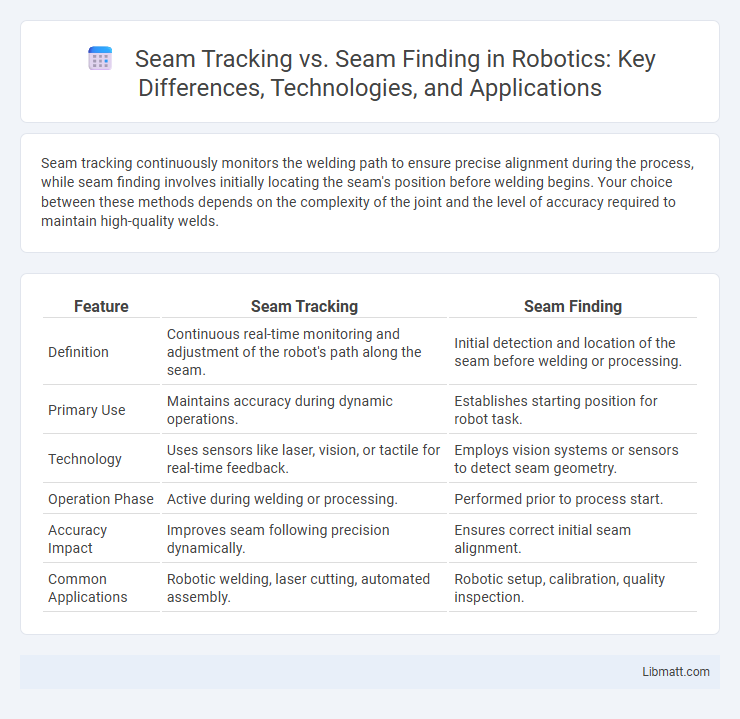

Seam Tracking vs Seam Finding Infographic
