libmatt.com Air separators efficiently remove air and organic matter from hydronic heating systems, enhancing system performance and longevity. Cyclone separators use centrifugal force to separate particles from air or gas streams, making them ideal for dust collection and industrial applications where your equipment requires effective particulate removal.
Table of Comparison
| Feature | Air Separator | Cyclone Separator |
|---|---|---|
| Function | Separates fine particles from coarser ones using airflow and centrifugal force | Removes dust and large particles from air using centrifugal force |
| Application in Cement Industry | Used for grading and classifying cement particles to improve quality and fineness | Used for dust collection and pollution control in cement plants |
| Efficiency | High precision in particle size classification; improves product consistency | High dust removal efficiency; moderate particle size separation |
| Operational Principle | Uses adjustable airflow and rotor speed to control classification cut-point | Utilizes vortex flow to separate particles based on density and size |
| Maintenance | Requires periodic cleaning and rotor balancing | Simple design with low maintenance effort |
| Typical Use Cases | Final product quality control, cement grinding circuits | Pre-filtration, dust collection, emergency pollution control |
Introduction to Air Separators and Cyclone Separators
Air separators and cyclone separators are crucial devices in industrial air filtration systems, designed to remove particulate matter from air streams. Air separators typically use a combination of centrifugal force and filtration media to capture dust and debris, while cyclone separators rely on vortex separation, creating a spinning airflow to separate heavier particles from the air. Both systems enhance air quality and efficiency but differ in design, operation, and specific applications across industries like manufacturing, HVAC, and mining.
Working Principles: Air Separator vs Cyclone Separator
Air separators operate by directing airflow through a series of baffles or screens that separate particles based on their size, density, or shape using gravity and aerodynamic forces. Cyclone separators utilize centrifugal force by spinning the air in a vortex, forcing heavier particles to the outer walls where they fall into a collection chamber, while cleaner air exits through the top. Understanding these working principles can help you choose the most efficient separation method for your specific industrial or environmental application.
Key Components and Design Features
Air separators feature adjustable vanes and blades that direct airflow to efficiently separate particles by size and weight, while cyclone separators rely on a cylindrical body and conical section to create a high-speed vortex for centrifugal particle separation. Key components of air separators include air inlet ducts, rotor assemblies, and collection chambers designed for precise control of air velocity and particle trajectories, whereas cyclone separators utilize tangential inlets, vortex finders, and dust outlets to maximize particle removal through centrifugal force. Understanding these design features helps you select the appropriate separator for specific industrial applications requiring optimized dust collection and material classification.
Types of Air Separators
Air separators come in various types including mesh-type, vane-type, and centrifugal, each designed to remove air and gases from hydronic heating and cooling systems effectively. Cyclone separators, a subtype of centrifugal separators, use a high-speed rotating airflow to separate particles and air from fluids with exceptional efficiency. Your choice should be based on system requirements such as flow rate, particle size, and maintenance preferences to optimize separation performance.
Types of Cyclone Separators
Cyclone separators are categorized into types such as high-efficiency, reverse-flow, and multi-cyclone variants, each designed to optimize particle removal based on airflow pattern and separator geometry. High-efficiency cyclones use enhanced vortex dynamics for fine particulate extraction, while reverse-flow cyclones feature a double vortex flow that improves collection efficiency for larger particles. Multi-cyclone separators combine multiple small cyclones within a single housing to increase capacity and reduce pressure drop in industrial dust collection systems.
Efficiency Comparison: Air and Cyclone Separators
Air separators typically achieve efficiency rates of 85-95% in removing fine particles from airflow, making them effective for applications requiring high air purity. Cyclone separators use centrifugal force and often reach efficiency levels between 70-90%, particularly excelling in capturing larger particulate matter in industrial dust collection. The choice between air and cyclone separators depends on particle size distribution and required separation efficiency for specific processes.
Applications in Various Industries
Air separators and cyclone separators are essential in industries such as manufacturing, agriculture, and mining for particle removal and air purification. Air separators excel in grain processing and agriculture by efficiently separating light and heavy particles to enhance product quality and reduce waste. Cyclone separators are widely used in cement, chemical, and power plants to remove dust and particulates from air or gas streams, improving air quality and equipment longevity.
Advantages and Disadvantages
Air separators offer precise particle separation and lower maintenance due to fewer moving parts but may consume more energy and have higher initial costs compared to cyclone separators. Cyclone separators excel in handling large volumes with low operational costs and simple design, though they can struggle with fine particle separation and cause pressure drops. Selecting between them depends on specific application needs such as particle size, operational efficiency, and maintenance requirements.
Maintenance and Operational Considerations
Air separators require regular cleaning of filters and periodic inspection of seals to maintain optimal airflow and prevent clogging. Cyclone separators demand less frequent maintenance due to their simple design but necessitate monitoring for wear in critical components like the vortex finder and collection chamber. Operationally, air separators offer precise particle removal control, while cyclone separators handle larger volumes with lower pressure drop and minimal maintenance disruptions.
Choosing the Right Separator for Your Needs
Choosing the right separator depends on the specific requirements of your application, such as particle size, air flow rate, and efficiency needs. Air separators excel at removing fine particles using airflow adjustment and are ideal for dust collection in woodworking or grain processing. Cyclone separators use centrifugal force to efficiently handle high volumes of coarse particles, making them suitable for industrial bulk material handling and dust control.

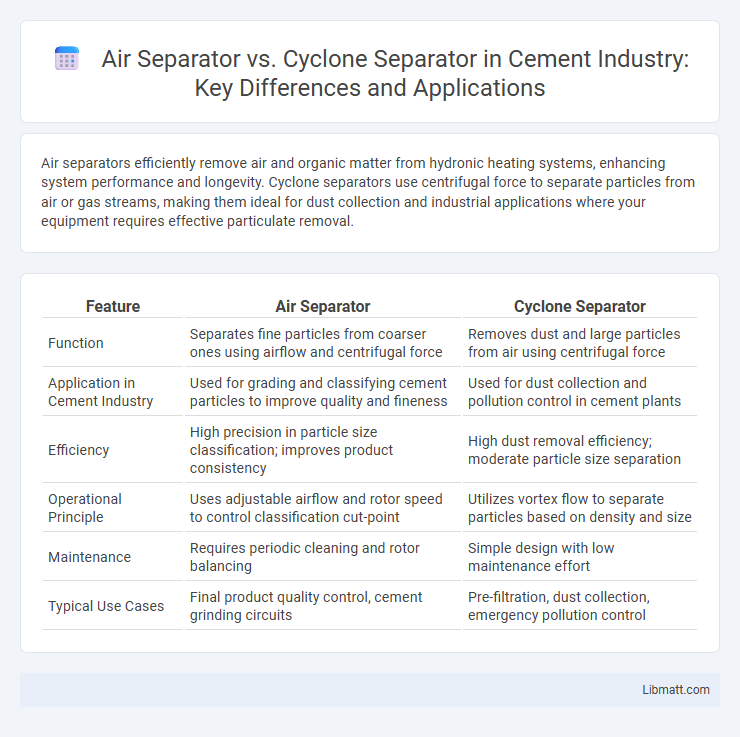

Air Separator vs Cyclone Separator Infographic
