libmatt.com A VFD (Variable Frequency Drive) provides precise motor speed control by adjusting the frequency and voltage, improving energy efficiency and process accuracy, while a soft starter limits the initial voltage to reduce inrush current and mechanical stress during motor startup without speed control. Your choice depends on whether you need adjustable speed operation (VFD) or simple smooth starting and stopping of the motor (soft starter).
Table of Comparison
| Feature | Variable Frequency Drive (VFD) | Soft Starter |
|---|---|---|
| Primary Function | Controls motor speed and torque by varying frequency and voltage | Reduces inrush current and limits starting torque during motor start |
| Speed Control | Yes - precise speed and acceleration control | No - motor runs at full speed after start |
| Energy Efficiency | Improves by adjusting motor speed to load requirements | No significant impact on energy consumption |
| Application | Pumps, conveyors, HVAC, centrifugal compressors requiring speed variation | Fans, pumps, compressors requiring controlled start without speed variation |
| Installation Complexity | Higher - requires programming and integration | Lower - easier to install and configure |
| Cost | Higher initial investment | Lower initial cost |
| Motor Protection | Provides overload, under-voltage, and fault protection | Basic motor protection during start |
| Maintenance | Moderate - depends on complexity and usage | Low - simpler device with minimal maintenance |
| Typical Load Types | Variable torque and constant torque loads | Constant torque loads |
Introduction to VFD and Soft Starter
Variable Frequency Drives (VFDs) regulate motor speed by adjusting the electrical frequency and voltage supplied, enhancing process control and energy efficiency. Soft starters limit the initial voltage to reduce inrush current during motor startup, minimizing mechanical stress but without speed control. Both devices improve motor protection, with VFDs offering advanced functionality for variable speed operations and soft starters focusing on smooth acceleration.
How VFDs Work: Key Principles
Variable Frequency Drives (VFDs) regulate motor speed by adjusting the frequency and voltage of the power supplied to the electric motor, enabling precise control over acceleration, deceleration, and torque. This is achieved through converting incoming AC power to DC via a rectifier, smoothing it with a DC bus, and then using an inverter to produce a variable frequency AC output. By controlling these parameters, VFDs optimize energy efficiency, reduce mechanical stress, and improve process control compared to soft starters, which primarily limit inrush current during motor startup.
Understanding Soft Starters: Basic Operation
A soft starter gradually increases voltage to an electric motor, reducing initial inrush current and mechanical stress during startup. Unlike Variable Frequency Drives (VFDs) that control motor speed by adjusting frequency, soft starters provide a simple and cost-effective solution for smooth acceleration without varying speed. Your motor experiences less wear and energy spikes, improving longevity and reliability with basic operation controls.
Applications: Where to Use VFDs vs Soft Starters
VFDs are ideal for applications requiring precise speed control and energy efficiency, such as conveyor systems, pumps, and HVAC systems where variable torque and speed adjustments optimize performance. Soft starters suit applications that primarily need reduced starting current and smooth motor startup, like compressors, fans, and belt-driven machinery, where minimizing mechanical stress is essential. Selecting between VFDs and soft starters depends on whether continuous speed variation or simple torque control during startup is the primary requirement.
Energy Efficiency Comparison
Variable Frequency Drives (VFDs) offer superior energy efficiency compared to soft starters by dynamically adjusting motor speed to match load requirements, reducing power consumption significantly during low-demand operation. Soft starters primarily control the voltage during motor startup, resulting in minimal energy savings since the motor runs at full speed after startup. Your energy costs can decrease notably with a VFD, making it the optimal choice for applications requiring variable speed control and enhanced efficiency.
Cost Analysis: Initial and Operating Costs
Variable Frequency Drives (VFDs) typically have higher initial costs compared to soft starters due to their complex components and advanced control capabilities. Operating costs for VFDs are often lower as they optimize energy consumption by adjusting motor speed to load requirements, resulting in significant energy savings. In contrast, soft starters have a lower upfront cost but do not offer energy efficiency benefits, potentially leading to higher long-term operating expenses.
Motor Protection and Performance
Variable Frequency Drives (VFDs) provide superior motor protection by controlling start-up current and allowing smooth acceleration and deceleration, reducing mechanical stress and extending motor life. Soft starters primarily limit inrush current during startup but do not offer continuous speed control, leading to less efficient motor performance under varying load conditions. VFDs optimize motor efficiency and performance by precisely adjusting frequency and voltage, enhancing energy savings and operational flexibility.
Installation and Maintenance Differences
VFDs (Variable Frequency Drives) require more complex installation due to their need for proper grounding, shielding, and programming for motor speed control, whereas soft starters have simpler wiring and setup focused mainly on reducing inrush current. Maintenance for VFDs involves periodic firmware updates, cooling system checks, and detailed diagnostics to ensure optimal performance, while soft starters demand less frequent attention, predominantly inspecting electrical connections and monitoring for component wear. The higher initial complexity and maintenance requirements of VFDs are balanced by their enhanced functionality compared to the straightforward, low-maintenance design of soft starters.
Pros and Cons: VFD vs Soft Starter
Variable Frequency Drives (VFDs) offer precise speed control and energy savings by adjusting motor speed, making them ideal for applications requiring variable torque and speed flexibility. Soft starters reduce inrush current and mechanical stress by providing a smooth motor startup but lack speed control and energy-saving capabilities. You should choose a VFD for full motor control and efficiency, while soft starters suit simpler applications focused on minimizing startup impact.
Choosing the Right Solution for Your System
Selecting between a Variable Frequency Drive (VFD) and a soft starter depends on the specific requirements of your system, including control precision, energy efficiency, and motor protection needs. VFDs offer precise speed control and energy savings by adjusting motor frequency, ideal for applications requiring variable speed and torque. Soft starters provide smooth motor startup by limiting inrush current and reducing mechanical stress, suitable for simple starting and stopping scenarios without continuous speed control.

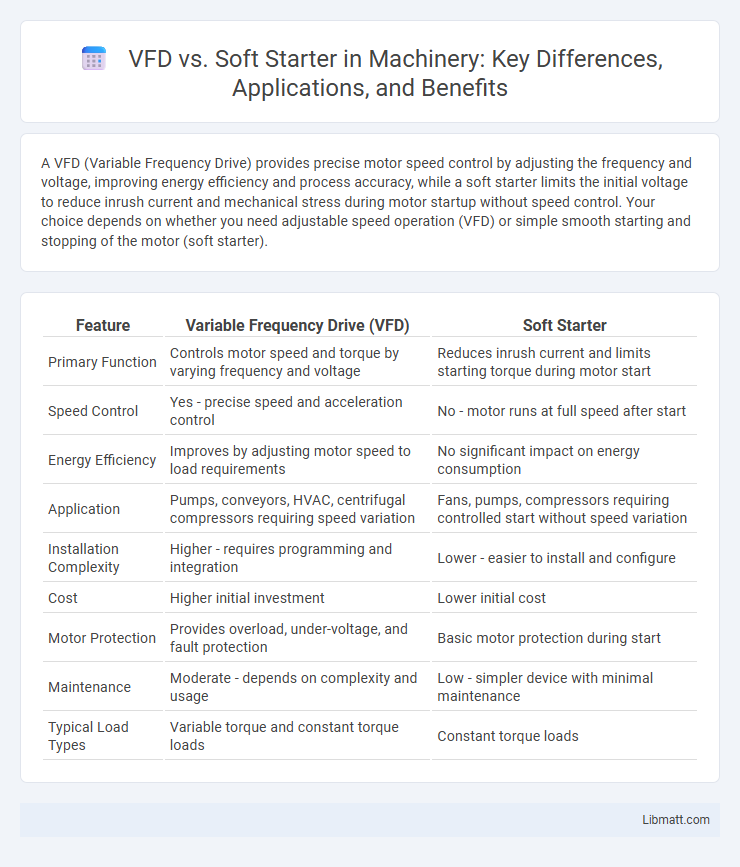

VFD vs soft starter Infographic
