libmatt.com SAR ADCs provide fast, moderate-resolution conversion ideal for applications requiring quick sampling and low power consumption, while Sigma Delta ADCs offer high-resolution, noise-shaped outputs suitable for precision measurements at lower speeds. Choosing between these depends on your need for speed versus accuracy, with SAR favoring rapid, efficient data capture and Sigma Delta excelling in detailed, high-fidelity signal analysis.
Table of Comparison
| Feature | SAR ADC | Sigma Delta ADC |
|---|---|---|
| Resolution | Up to 18 bits | Up to 24+ bits |
| Speed | High-speed, typically up to MHz range | Lower speed, typically kHz to low MHz |
| Power Consumption | Low to moderate | Generally higher due to oversampling |
| Linearity | Good linearity, depends on capacitor matching | Excellent linearity, noise shaping reduces distortion |
| Noise Performance | Moderate, limited by comparator and DAC | Low noise floor due to oversampling and filtering |
| Complexity | Moderate circuitry, simpler architecture | Higher complexity, requires digital filtering |
| Applications | Data acquisition, instrumentation, motor control | Audio, precision measurement, industrial sensors |
| Latency | Low latency | Higher latency due to oversampling and digital filtering |
| Cost | Lower cost, widely used | Higher cost, specialized applications |
Overview of SAR ADC and Sigma Delta ADC Technologies
SAR ADCs (Successive Approximation Register Analog-to-Digital Converters) utilize a binary search algorithm to rapidly convert analog signals into digital form with moderate resolution and high speed, making them ideal for applications requiring quick and precise measurements. Sigma Delta ADCs employ oversampling and noise shaping techniques to achieve high-resolution conversions with enhanced noise performance, suitable for audio and measurement systems demanding exceptional accuracy. You can select SAR ADCs for fast, medium-resolution tasks or Sigma Delta ADCs when high resolution and noise immunity are critical.
Key Differences Between SAR and Sigma Delta ADCs
SAR ADCs offer fast conversion speeds with moderate resolution, making them ideal for applications requiring quick data acquisition such as digital control systems. Sigma Delta ADCs provide high resolution and excellent noise performance by oversampling and noise shaping, suited for precision measurements in audio and instrumentation. Your choice hinges on balancing speed versus accuracy needs, with SAR excelling in low-latency contexts and Sigma Delta favored where signal fidelity is paramount.
Principles of Operation: SAR ADC Explained
SAR ADC operates by sampling the input voltage and using a binary search algorithm within a successive approximation register to convert the analog signal into a digital output bit by bit. This method relies on a comparator and a DAC to iteratively narrow down the input voltage range until the closest digital value is found, offering high-speed conversion ideal for applications requiring moderate resolution. You can expect SAR ADCs to provide efficient and precise conversions in environments where rapid measurement is crucial.
Principles of Operation: Sigma Delta ADC Explained
Sigma Delta ADC operates by oversampling the input signal and using a noise-shaping modulator to push quantization noise out of the band of interest, followed by digital filtering and decimation to produce a high-resolution output. Unlike SAR ADCs that perform successive approximation steps, Sigma Delta converters rely on integrating the difference between the input and feedback signals, achieving high accuracy and effective resolution. This architecture is particularly suited for low-frequency, high-precision applications such as audio and instrumentation.
Resolution and Accuracy Comparison
SAR ADCs typically offer moderate resolution ranging from 8 to 18 bits with fast conversion speeds, making them ideal for applications requiring quick and accurate signal sampling. Sigma Delta ADCs provide higher resolution, often exceeding 20 bits, and superior noise performance due to oversampling and digital filtering, resulting in greater accuracy for low-frequency or precision measurements. Your choice depends on whether speed or ultra-high accuracy is the priority, as SAR excels in fast, mid-resolution tasks while Sigma Delta dominates in high-resolution, low-noise environments.
Speed and Throughput Differences
SAR ADCs offer faster conversion speeds with typical sampling rates from 100 kSPS to several MSPS, making them ideal for applications requiring high throughput and low latency. Sigma Delta ADCs prioritize resolution over speed, operating at lower sampling rates usually below 1 MSPS but provide high effective number of bits (ENOB) through oversampling and noise shaping. The throughput of SAR ADCs is higher due to single-step conversion processes, whereas Sigma Delta ADCs achieve higher accuracy with slower data output rates caused by digital filtering and decimation stages.
Noise Performance and Signal Integrity
SAR ADCs exhibit moderate noise performance with lower latency and better signal integrity in applications requiring fast, precise conversions, as they rely on discrete sampling and binary search algorithms. Sigma Delta ADCs provide superior noise-shaping and high resolution by oversampling and digital filtering, achieving lower in-band noise levels but introducing latency that can affect real-time signal fidelity. Signal integrity in SAR ADCs is generally higher for high-speed signals due to minimal oversampling, while Sigma Delta ADCs excel in low-frequency, high-accuracy measurements with excellent noise suppression.
Power Consumption Considerations
SAR ADCs generally offer lower power consumption compared to Sigma Delta ADCs, making them ideal for battery-powered and portable applications. Sigma Delta ADCs, while providing higher resolution and noise shaping benefits, typically consume more power due to their oversampling and complex digital filtering stages. Your choice should balance the need for precision against power efficiency requirements in electronic design.
Typical Applications for SAR and Sigma Delta ADCs
SAR ADCs are commonly used in applications requiring high-speed data conversion with moderate resolution, such as battery-powered devices, industrial controls, and data acquisition systems. Sigma Delta ADCs excel in high-resolution, low-frequency measurements like audio processing, instrumentation, and precision sensor data collection. The choice between SAR and Sigma Delta ADCs depends on the trade-off between speed and resolution needed in the target application.
Choosing the Right ADC: SAR vs Sigma Delta
Selecting the appropriate ADC depends on application requirements such as resolution, speed, and power consumption. SAR ADCs offer fast conversion rates up to several MSPS and moderate resolution around 12-16 bits, making them ideal for real-time, low-latency applications like motor control and data acquisition. Sigma Delta ADCs provide higher resolution, often 16-24 bits, with excellent noise performance, suited for precision measurements and audio processing where slower sampling rates are acceptable.

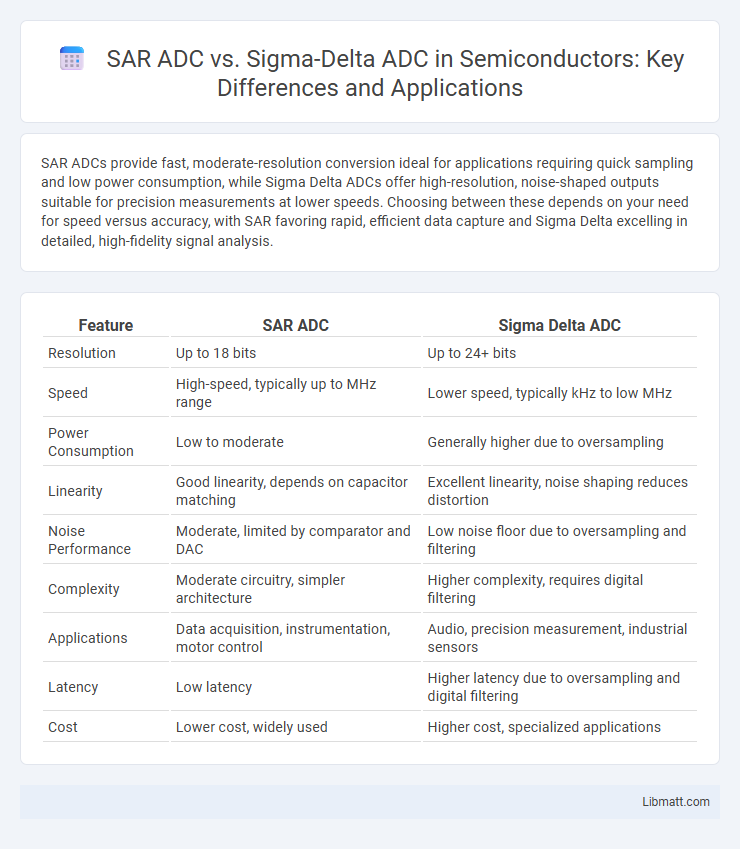

SAR ADC vs Sigma Delta ADC Infographic
