libmatt.com Silicon Photomultipliers (SiPM) offer high sensitivity and photon counting capabilities with low noise, making them ideal for applications requiring precise detection of low light levels. Single Photon Avalanche Diodes (SPAD) provide excellent timing resolution and single-photon detection efficiency, crucial for time-correlated measurements and quantum communication; choosing the right detector depends on Your specific requirements for sensitivity, timing, and noise tolerance.
Table of Comparison
| Feature | SiPM (Silicon Photomultiplier) | SPAD (Single-Photon Avalanche Diode) |
|---|---|---|
| Detection Principle | Array of SPADs operating in Geiger mode | Single photodiode operating in Geiger mode |
| Sensitivity | High photon detection efficiency (PDE), up to ~50% | Very high PDE, typically 40-70% |
| Dynamic Range | Wide dynamic range due to array structure | Limited dynamic range, single photon detection |
| Timing Resolution | Excellent, typically ~100 ps | Superior, down to tens of picoseconds |
| Noise Characteristics | Moderate dark count rate, affected by temperature | Lower dark counts achievable with cooling |
| Applications | Medical imaging, LIDAR, particle physics | Quantum communication, fluorescence lifetime imaging |
| Integration | Integrated arrays, scalable for large detection areas | Typically single devices, harder to scale |
| Cost | Moderate, benefits from mass production | Higher per unit cost due to complexity |
Introduction to SiPM and SPAD Technologies
Silicon Photomultipliers (SiPM) and Single-Photon Avalanche Diodes (SPAD) are highly sensitive photodetectors used for detecting low levels of light at the single-photon level. SiPMs consist of an array of SPAD pixels operating in Geiger mode, enabling high gain, fast response, and photon counting capabilities with enhanced dynamic range. SPADs function as individual avalanche photodiodes biased above the breakdown voltage, providing precise single-photon detection with excellent timing resolution essential for applications in LiDAR, medical imaging, and quantum communication.
Fundamental Principles of SiPMs
Silicon Photomultipliers (SiPMs) are semiconductor devices consisting of an array of Single-Photon Avalanche Diodes (SPADs) operating in Geiger mode to detect low levels of light with high sensitivity. Each SPAD element within the SiPM functions as an independent photon detector, generating a digital pulse upon photon absorption and enabling the SiPM to provide fast, precise photon counting with high gain. The parallel connection of numerous SPADs allows SiPMs to deliver excellent photon detection efficiency, low noise, and superior timing resolution compared to traditional photodetectors.
Core Concepts of SPADs
Single-Photon Avalanche Diodes (SPADs) operate by detecting individual photons through an avalanche multiplication process triggered by a single photon, enabling ultra-sensitive light detection. SPADs function in Geiger mode, maintaining a bias above the breakdown voltage to initiate and quench avalanches, resulting in precise photon counting and timing resolution. Unlike SiPMs, which integrate multiple SPADs in arrays for higher dynamic range, SPADs serve as fundamental detectors offering unmatched single-photon sensitivity essential for applications in quantum communication and medical imaging.
Key Differences Between SiPM and SPAD
SiPM (Silicon Photomultiplier) consists of an array of SPAD (Single-Photon Avalanche Diode) microcells operating in Geiger mode, allowing for photon counting with high gain and temporal resolution. SPAD is a single photodiode that detects individual photons with excellent timing accuracy but limited by single pixel response, while SiPM offers improved dynamic range and photon detection efficiency through parallelized microcells. Your choice depends on application needs: SiPM suits scenarios requiring high sensitivity and photon flux measurement, whereas SPAD is ideal for precise single-photon timing.
Sensitivity and Photon Detection Efficiency
Silicon Photomultipliers (SiPMs) exhibit higher sensitivity and superior photon detection efficiency (PDE) compared to Single-Photon Avalanche Diodes (SPADs) due to their array structure, which aggregates multiple microcells to enhance signal output. Your choice between SiPM and SPAD should consider that SiPMs achieve PDE values often exceeding 50%, whereas SPADs typically offer lower PDE but excel in temporal resolution. Both technologies are pivotal for low-light detection, but SiPMs provide a robust advantage in capturing faint photon signals with greater efficiency.
Noise Characteristics and Dark Count Rate
Silicon Photomultipliers (SiPMs) generally exhibit lower dark count rates compared to Single-Photon Avalanche Diodes (SPADs), resulting in reduced noise levels for photon detection applications. SiPMs consist of an array of microcells, each operating in Geiger mode, which allows for better noise suppression and improved signal-to-noise ratio. In contrast, SPADs typically have higher dark count rates due to thermal generation and afterpulsing effects, making SiPMs more suitable for low-light and high-precision timing measurements.
Dynamic Range and Linearity Comparison
Silicon Photomultipliers (SiPMs) exhibit a wider dynamic range and superior linearity compared to Single-Photon Avalanche Diodes (SPADs) due to their multiple microcells that operate in parallel, enabling simultaneous photon detection without saturation. SPADs excel in single-photon sensitivity but suffer from limited dynamic range and reduced linearity at higher photon flux because of their binary response and dead time constraints. Consequently, SiPMs are preferred in applications requiring high photon flux measurements with accurate intensity resolution, while SPADs suit low-light scenarios demanding single-photon precision.
Applications: Where SiPMs and SPADs Excel
SiPMs (Silicon Photomultipliers) excel in applications requiring high sensitivity and fast timing, such as medical imaging (PET scans), high-energy physics, and LIDAR systems, due to their ability to detect low levels of light with high gain and large active areas. SPADs (Single-Photon Avalanche Diodes) are ideal for quantum communication, fluorescence lifetime imaging microscopy (FLIM), and single-photon counting applications where precise photon timing and ultra-high photon detection efficiency are critical. Your choice between SiPM or SPAD depends on the specific requirements for timing resolution, photon detection efficiency, and the operational environment.
Cost and Integration Considerations
SiPMs typically offer lower overall cost and easier integration in large-scale applications due to their array-based design and compatibility with standard CMOS processes. SPADs, while more expensive per unit, provide precise single-photon detection but require more complex readout electronics, increasing system integration challenges. Your choice depends on balancing budget constraints with the desired level of detection sensitivity and system complexity.
Future Trends in Photon Detection Technologies
Emerging photon detection technologies emphasize improvements in both Silicon Photomultipliers (SiPMs) and Single-Photon Avalanche Diodes (SPADs) through advancements in sensitivity, timing resolution, and noise reduction. SiPMs are trending towards higher pixel density and enhanced photon detection efficiency, making them ideal for applications like medical imaging and LiDAR, while SPADs focus on miniaturization and integration for consumer electronics and quantum computing. Your choice between SiPM and SPAD will depend on requirements for scalability, speed, and application-specific performance in next-generation photon detection systems.

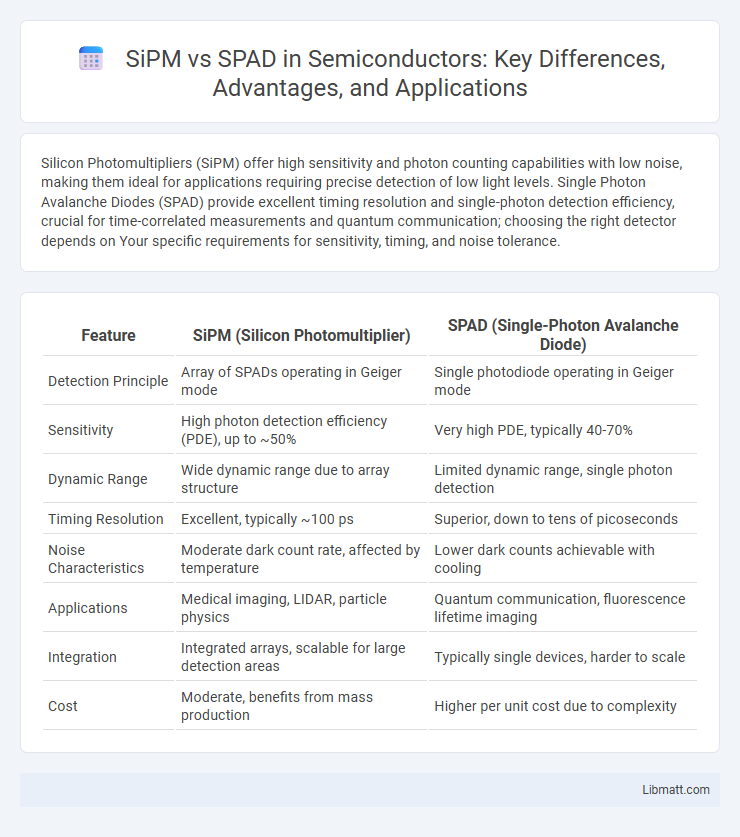

SiPM vs SPAD Infographic
